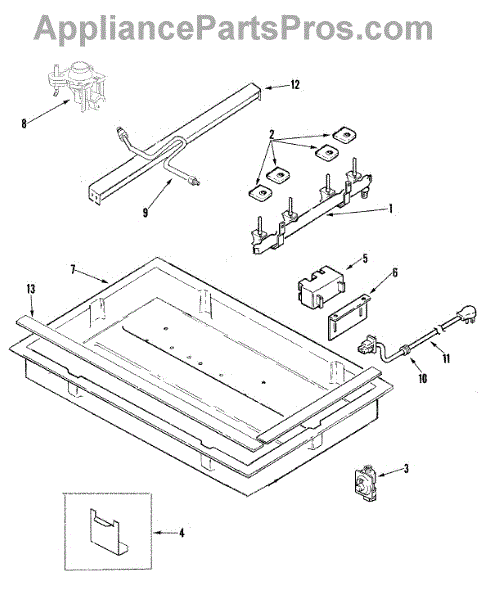

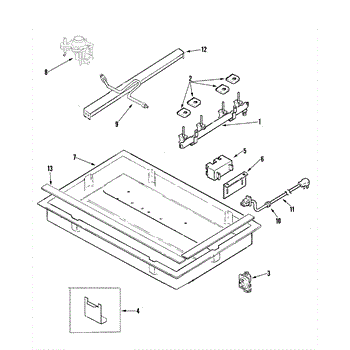

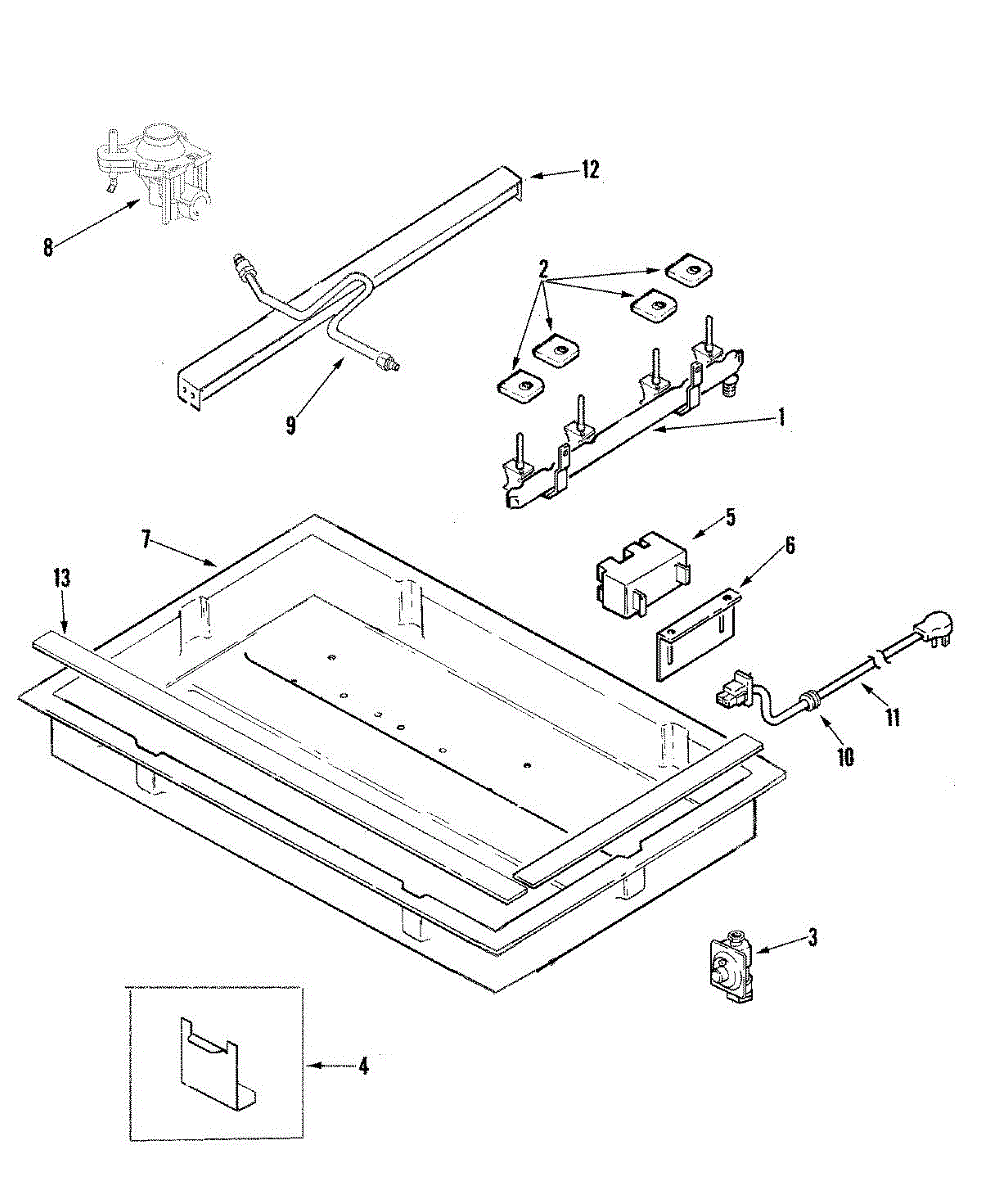

Parts for Magic Chef CGC2430ADW: 01 - Body Parts

Replacement switch/lead wire assembly restores a safe, insulated connection between a control switch and the appliance wiring, helping resolve intermittent controls, no-response switches, and visible wiring damage for consistent operation. What it does:

• Provides an insulated, factory-style connection between a control switch and the main wiring harness to carry control signals safely.
• Replaces frayed, burned, or corroded wires and terminals that can cause intermittent operation or arcing.
• Corrects symptoms such as unresponsive switches, intermittent power to components, or a burning/shorting odor when the wiring is damaged.
• Matches original connector types and terminal orientations for plug-and-play replacement when used in compatible machines.

• Disconnect power (unplug appliance or shut off circuit breaker) before inspecting or replacing any wiring.
• Compare the new assembly to the removed part for identical connector types, terminal orientation, and wire routing before installation.
• Use proper tools to release and seat terminals; avoid pulling on wire insulation.
• If terminals or surrounding components show burn damage, diagnose the underlying fault before installing the replacement wiring.

Replacement #10 x 2 inch mounting screw for securing panels, brackets, and components in cooktops, ranges, and refrigerators. Replaces lost or stripped screws.

Tie-down mounting bracket secures your gas cooktop to the counter opening during installation. Replace if bent, broken, or missing to prevent shifting.

Burners won't light? No spark on any burners? The spark module generates sparks to ignite gas burners. Easy DIY repair—usually takes under 30 minutes.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Fixes weak or uneven flames caused by loose orifice placement. This holder secures the burner orifice for stable gas flow and reliable ignition.

Fix weak flames or uneven heating on your gas cooktop. This burner orifice holder channels gas from the valve to the burner for proper ignition.

Gas burner won't ignite or spark? This surface burner spark electrode generates the spark to light your cooktop burner. Moderate DIY repair.

This snap-in bushing provides a low-profile bearing surface to support rotating shafts and reduce wear and noise in appliance assemblies. It restores smooth operation where the original bushing is worn or damaged. What it does:

• Provides a replaceable bearing/sleeve for rotating shafts and posts
• Reduces friction and wear on housing and moving parts
• Helps eliminate rubbing, grinding, or rattling noises during operation
• Maintains correct shaft alignment for smooth rotation

• One snap-in bushing

• Disconnect power before servicing and follow all safety instructions
• Access may require removing panels or covers; inspect surrounding parts for wear
• Press or snap the bushing squarely into the housing until fully seated; avoid deforming it
• Replace any damaged retainers or seals and test operation after reassembly

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Replacement #10 x 2 inch mounting screw for securing panels, brackets, and components in cooktops, ranges, and refrigerators. Replaces lost or stripped screws.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
