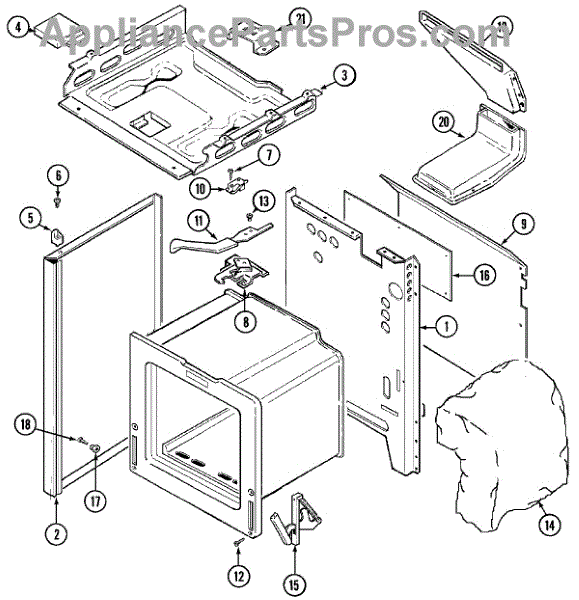

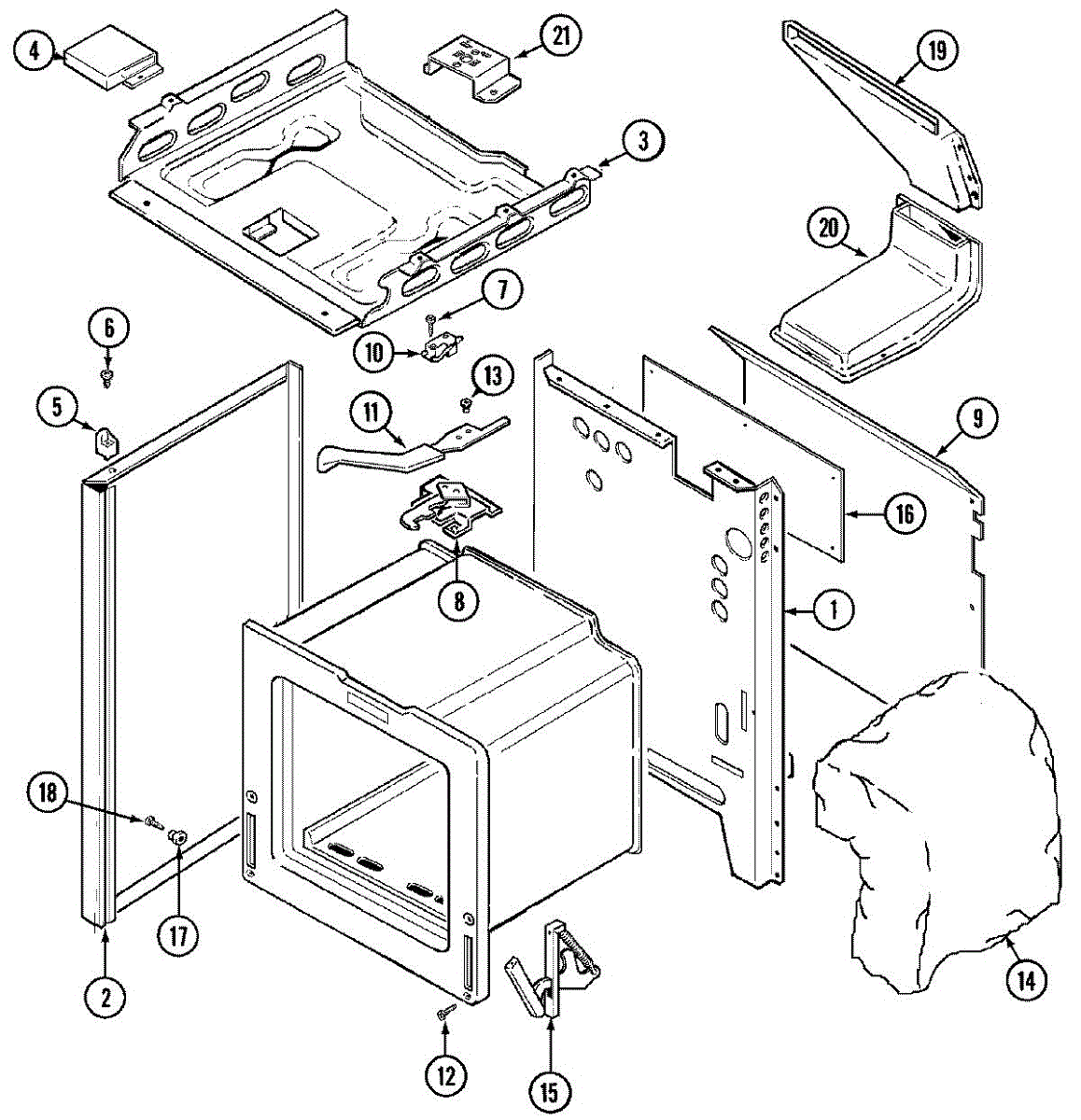

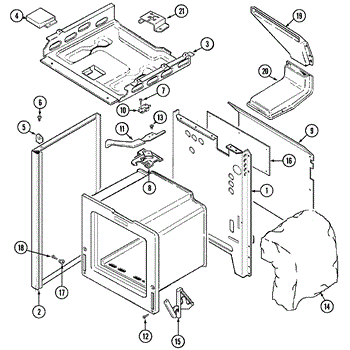

Parts for Magic Chef CGR3520ADH: 01 - Body Parts

Left hand side

Right hand side

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Insulation panel that installs at the back of the oven cavity. Replace if original insulation is cracked, damaged, deteriorated, or missing.

This is a replacement refrigerator door hinge that restores proper door alignment and smooth opening. It helps stop sagging, rubbing, and uneven sealing so the door closes correctly and the appliance maintains temperature. What it does:

• Supports and pivots the refrigerator door for smooth opening and closing
• Restores correct door alignment to prevent gaps and uneven seals
• Stops door sag, rubbing, or binding that can cause unusual wear or noise
• Helps maintain proper door contact to preserve internal temperature

• One door hinge

• Disconnect power (and water supply if applicable) before starting repairs
• Support the door while removing and installing the hinge to prevent damage or injury
• Use basic hand tools; follow manufacturer instructions for torque and alignment

Lower

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Spacer that maintains proper spacing between range components to prevent rubbing and misalignment. Replace if cracked, broken, or missing during repairs.

Size: No. 8

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.
