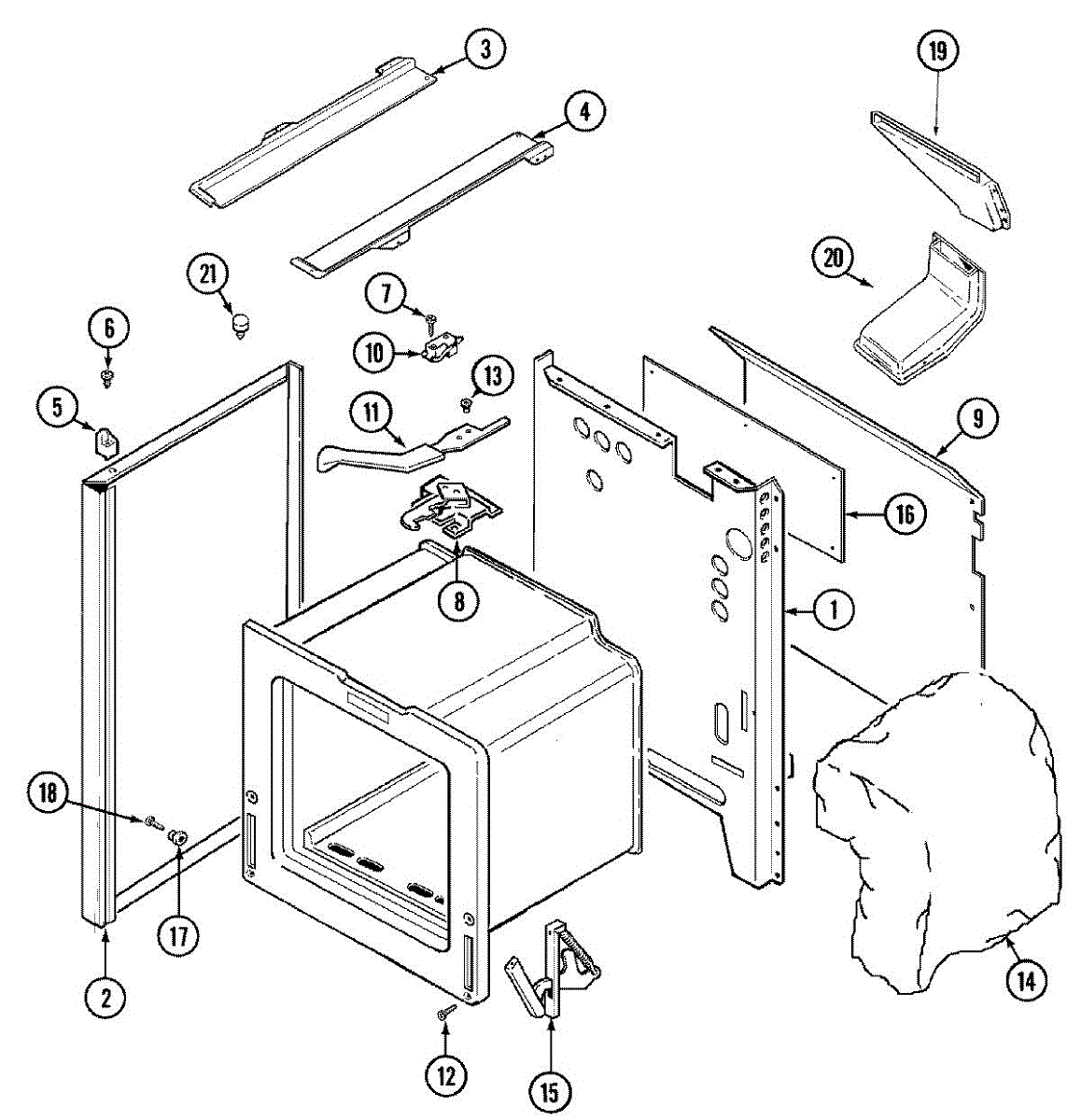

Parts for Magic Chef CGR3760ADW: 01 - Body Parts

This burner box is the oven's metal housing that holds and positions the bake/broil burners and channels gas flames for proper heating. Replacing a damaged box restores safe flame direction and consistent oven operation. What it does

• Supports and secures the bake and broil burners inside the oven cavity
• Directs burner flames and helps ensure even heat distribution
• Helps prevent flame impingement on surrounding components
• Commonly replaced for visible corrosion, warping, or blistered metal that affects flame pattern

• One burner box (oven burner housing) as shown

• Turn off and disconnect power and gas supply before starting work
• Follow OEM service manual for removal and reinstallation steps; handle gaskets and mounting screws carefully
• After installation, check for proper burner alignment and test for gas leaks with a soap solution

Left hand side

Right hand side

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 10-24X5/16-NI

Size: 10-24X5/16-NI

This oven door hinge is a replacement for many models of ovens. Oven doors will have two hinges. If there is a problem with one or both of the hinges, it means that the door will not open and close properly. It might not stay closed, or it could be difficult to open. This would make it impossible to use the oven, and the hinge should be replaced as soon as possible.An oven door hinge could become damaged for a host of reasons. When the door is open, too much pressure could be placed on the hinge, which could cause it to break. It could become corroded over time, or the spring might wear down. When there are issues, the owner will want to replace the hinge to ensure the door stays closed. Owners should always make sure the oven is off and not powered before beginning work.The oven door hinge will work with certain models of ovens from Whirlpool, Maytag, Amana, Jenn-Air, Norge, Crosley, and Magic Chef. This is a genuine OEM replacement part, and it is sold individually. If both of the hinges need to be replaced, the owner will need to buy two.

Lower

This spacer secures and maintains proper spacing between adjacent appliance components to prevent rubbing and misalignment, helping restore smooth, stable operation after wear or replacement. What it does:

• Positions and cushions parts to prevent metal-on-metal contact and reduce noise or vibration
• Keeps components aligned for proper fit and function after panel or assembly reinstallation
• Helps maintain clearance for moving parts to avoid abrasion and premature wear
• Useful when replacing worn fasteners, clips, or assemblies that rely on precise spacing

• Disconnect power (unplug or switch off circuit breaker) before beginning any repair
• Handle small parts carefully and retain any associated fasteners; compare new part to old for orientation
• Use basic hand tools as required; avoid forcing parts into place to prevent damage

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
