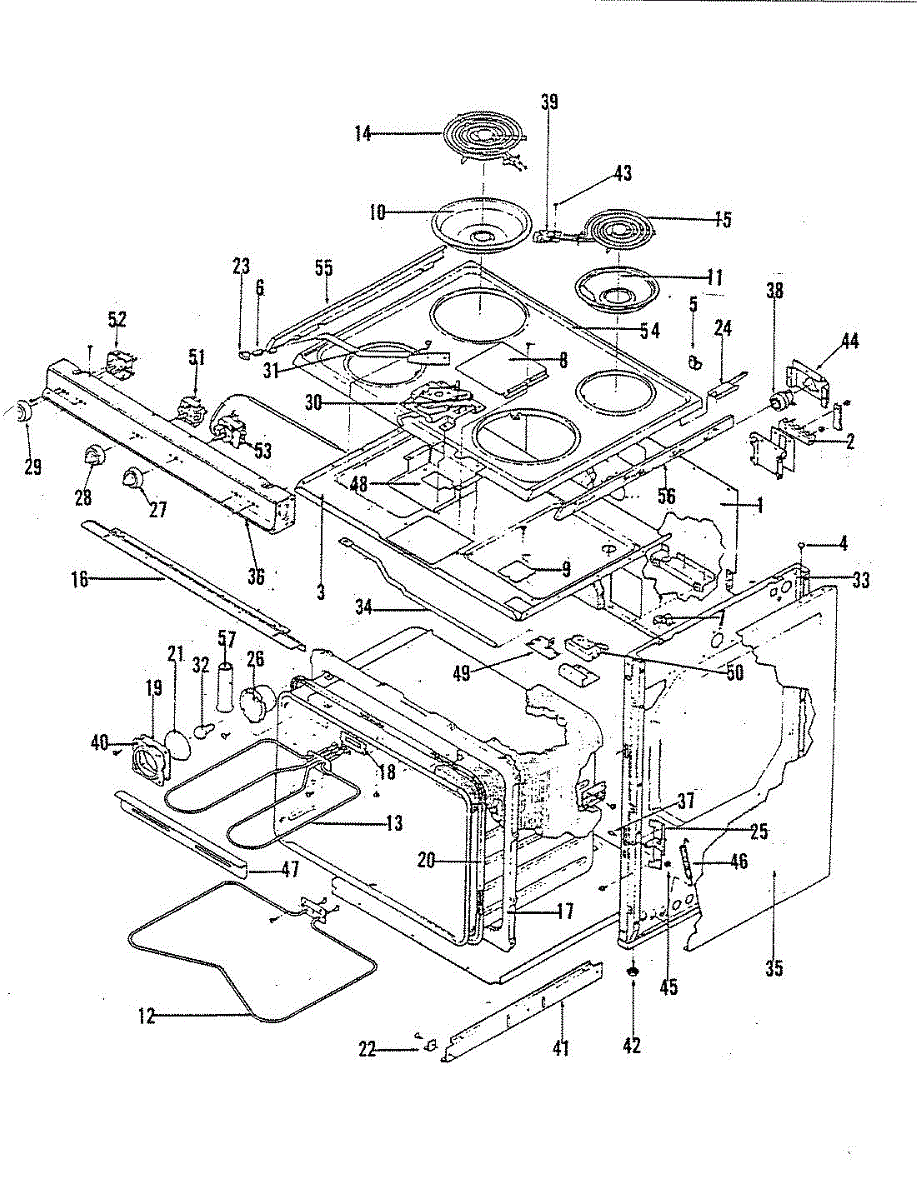

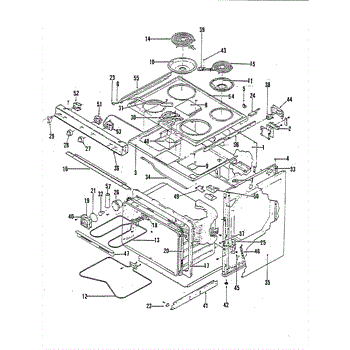

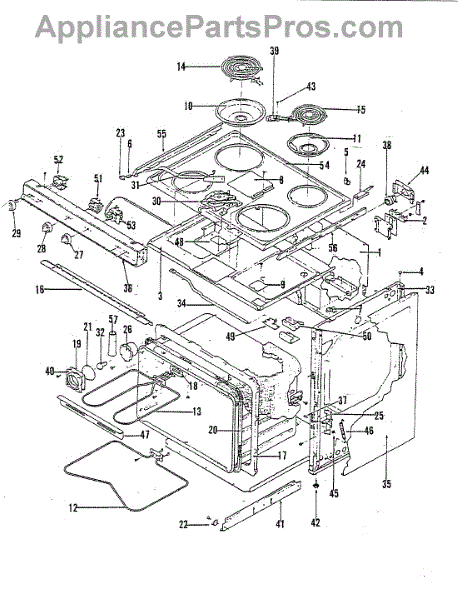

Parts for Magic Chef S28FA-7CXWV8: 01 - Body Parts

This part has been discontinued by the manufacturer and is no longer available.

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

For screws order: WP7101P485-60.

This part has been discontinued by the manufacturer and is no longer available.

This mounting clip secures a thermostat, temperature sensor, or capillary bulb in the correct position so it can sense temperature accurately and control the appliance. Replacing a damaged or missing clip helps prevent loose components and erratic readings. What it does:

• Holds the thermostat or sensor firmly against its mounting surface for proper thermal contact
• Helps maintain stable, accurate temperature regulation
• Replaces a bent, broken, or missing clip that won't hold securely
• Common symptoms include a dangling sensor/bulb, rattling, or inconsistent temperature response

• 1 clip

• Disconnect power (and gas, if applicable) and allow the appliance to cool completely before service
• Access the thermostat/sensor area and note original orientation and routing
• Move the component into the new clip and secure it at the original mounting location
• Avoid kinking a capillary tube or damaging sensor leads; the clip is fully seated

This bake element supplies the primary heat from the bottom of the oven during the Bake cycle. Replace it to restore proper preheating and even results when the original is burned out, damaged, or no longer heating. What it does:

• Provides radiant heat for baking and preheating from the lower oven position
• Helps the oven reach and maintain the set temperature for consistent cooking
• Common symptoms: no heat in Bake, very slow preheating, uneven baking, or a visible blister/crack in the element
• Restores normal oven operation when the existing element has failed

• 1 bake element

• Disconnect power at the breaker or unplug the appliance before servicing
• Remove oven racks; take out the element's mounting screws and gently pull the element forward
• Support and disconnect the two wire terminals; prevent wires from slipping back into the insulation
• Attach wires to the new element, secure with existing hardware, restore power, and test

The Broil Element is an OEM part for Whirlpool ranges. This part provides the intense, direct heat necessary for broiling. This part is located at the top of the oven cavity and is essential for achieving high temperatures needed for tasks like browning and searing.

Causes of a bad broil element can include electrical issues such as short circuits, damage from spills or food debris, and general wear and tear from repeated use.

Symptoms of a bad Broil Element include:

• The oven not reaching broil temperatures
• Inconsistent or uneven broiling
• The element not glowing red when in use
• Visible signs of damage or burning on the element

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This surface element supplies heat to an electric range or cooktop burner. When it fails, the burner may not heat or may heat inconsistently. Replacing the element restores steady, reliable cooking performance.

• Converts electrical energy into heat for the cooking zone
• Works with the surface control (infinite switch) to regulate temperature
• Common symptoms: burner won't heat, intermittent or uneven heating, visible breaks/blistering, burnt/melted terminals
• A failed element will not glow or reach set temperature when energized

• Disconnect power at the breaker before servicing and allow the cooktop to cool completely
• If your model uses a plug-in coil style: remove the drip pan, pull the element straight out of the receptacle, and inspect/replace a heat-damaged receptacle as needed
• If your model uses an under-glass radiant style: lift the cooktop, transfer any clips/limiters from the old element, and route wires exactly as original
• After reassembly, test the burner at a low setting to ensure proper operation

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This spacer maintains the correct gap between mating components inside your appliance, keeping parts aligned and operating smoothly. Replacing a worn or missing spacer restores proper fit and helps prevent rubbing, noise, and premature wear. What it does:

• Sets and preserves the correct stand-off between components for proper alignment
• Helps ensure smooth operation and consistent control feel
• Reduces friction and contact that can cause noise or wear
• Common failure signs: loose or wobbly parts, rubbing/scraping sounds, misalignment, poor fit

• 1 spacer

• Disconnect power and, if applicable, shut off gas supply before servicing.
• Note the orientation of the original spacer and match it during reassembly.
• Handle nearby trim and control components carefully to avoid damage.
• After reassembly, verify smooth operation and proper clearances before restoring power/gas.

This replacement light lens covers the appliance's bulb, protecting it from contact, moisture, and splashes while diffusing illumination. Replacing a cracked or missing lens restores safe, even lighting and keeps the bulb properly shielded. What it does:

• Shields the bulb from contact, moisture, and debris
• Diffuses light for more even illumination with reduced glare
• Helps protect the socket area from contamination
• Typical symptoms: cracked, warped, or missing lens; discoloration; exposed bulb; harsh or uneven lighting

• Includes: 1 light lens

• Disconnect power to the appliance before servicing; allow the lamp/area to cool completely
• Wear gloves and eye protection when handling an old or broken lens
• Remove retaining screws, tabs, or clips and note lens orientation for reassembly
• Reuse existing hardware if required; do not overtighten; restore power and test light operation

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This genuine pin hinge secures and guides the appliance door, restoring smooth pivoting and proper alignment for reliable opening and closing. It's a direct-fit replacement designed to help stop door sag, binding, or uneven gaps. What it does:

• Provides the pivot point that lets the door swing open and closed
• Keeps the door aligned to the cabinet for a proper seal and even gap
• Replaces worn or bent pins that cause door sag, scraping, or noisy operation
• Helps restore smooth, wobble-free door motion

• Disconnect power (and water for dishwashers) before starting work
• Support the door during removal to prevent dropping or damage
• Simple hand tools typically required; reuse original screws unless damaged
• If the door has glass or heavy panels, get a helper to hold weight during installation

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation

This part has been discontinued by the manufacturer and is no longer available.

This oven door spring restores the door's counterbalance so it opens smoothly and closes firmly. Replacing a fatigued spring helps prevent heat loss and supports consistent baking by ensuring the door seals properly. What it does:

• Provides tension to counterbalance the oven door through the hinge mechanism
• Helps the door close fully against the gasket to retain heat
• Restores smooth, controlled opening and closing action
• Common symptoms of a worn spring: door drops or feels heavy, won't stay closed, heat escaping/uneven temperatures

• One oven door spring

• Disconnect electrical power; turn off gas supply to the range if applicable
• Springs and hinges are under tension—support the door/hinge and use caution
• Note spring hook positions/orientation before removal; reinstall in the same locations
• After replacement, verify the door closes fully and the seal is even

This spacer maintains the correct gap between mating components inside your appliance, keeping parts aligned and operating smoothly. Replacing a worn or missing spacer restores proper fit and helps prevent rubbing, noise, and premature wear. What it does:

• Sets and preserves the correct stand-off between components for proper alignment
• Helps ensure smooth operation and consistent control feel
• Reduces friction and contact that can cause noise or wear
• Common failure signs: loose or wobbly parts, rubbing/scraping sounds, misalignment, poor fit

• 1 spacer

• Disconnect power and, if applicable, shut off gas supply before servicing.
• Note the orientation of the original spacer and match it during reassembly.
• Handle nearby trim and control components carefully to avoid damage.
• After reassembly, verify smooth operation and proper clearances before restoring power/gas.

Color: Black

This infinite switch controls the heat level of an electric range's surface burner, letting you adjust burner temperature from low to high. Replace a worn or failed control to restore variable heat regulation for safe cooking performance. What it does:

• Regulates electrical current to the surface burner so you can set low-to-high heat levels.
• Restores variable burner control when heat is stuck on a single setting or won't cycle.
• Addresses symptoms like no heat at some settings, inconsistent burner temperatures, or a burner that only works on one or two settings.
• Works as the user-operated control behind the range control knob for a single surface element.

• Disconnect power at the house breaker or unplug the range before servicing.
• Verify correct replacement by matching terminal layout and mounting to the old switch; only install the exact part specified for your model.
• Use proper tools and avoid touching live terminals; Handle glass-top ranges carefully to avoid cracking when accessing or replacing the switch.
