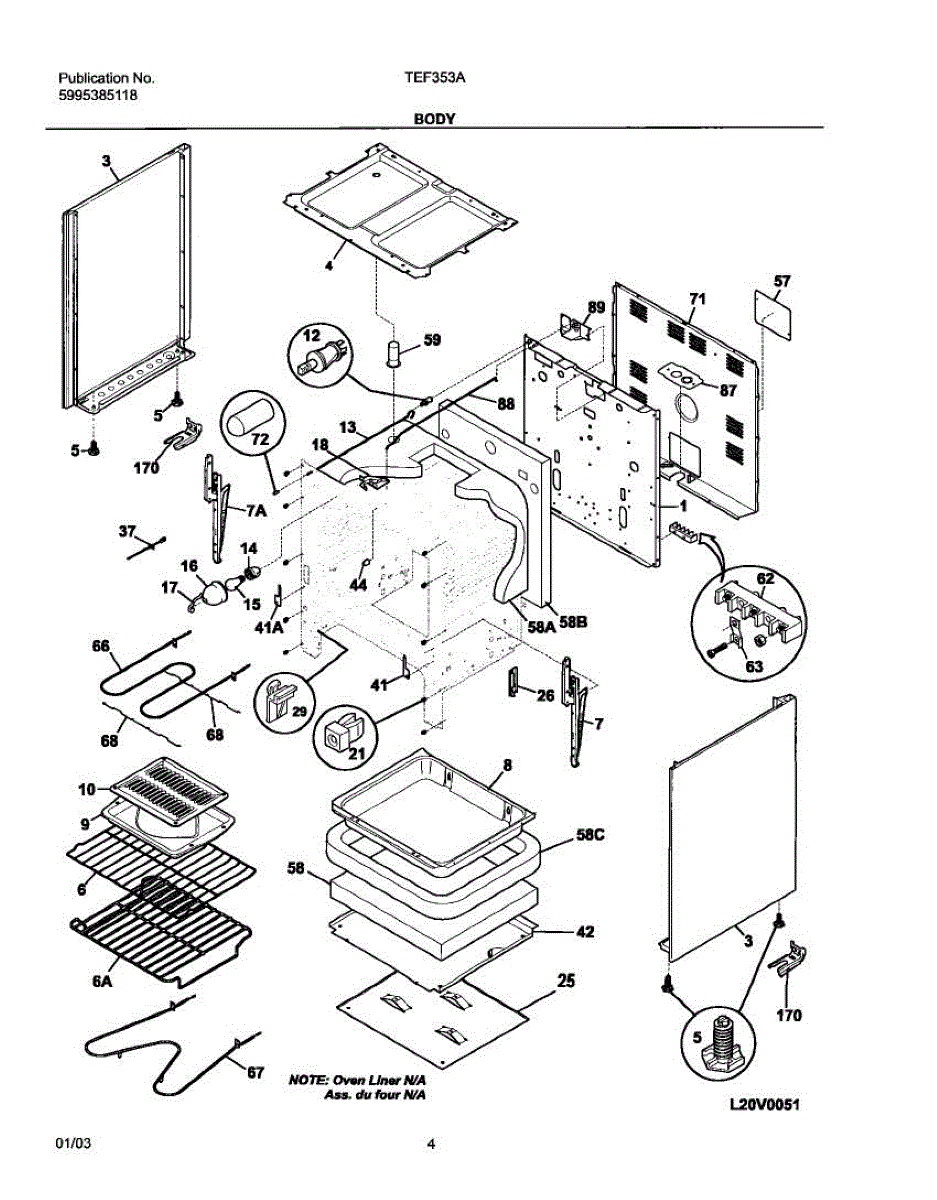

Parts for Tappan TEF353AQD: 05 - Body Parts

This burner box is the structural pan beneath the cooktop that supports the surface burner components and shields internal parts from heat and spills. Replacing a damaged box restores proper burner alignment and a stable, secure cooking surface.

• Provides a rigid housing under the cooktop for burner heads, igniters, and related hardware
• Helps contain spills and protect wiring and insulation from heat exposure
• Keeps burners aligned so they sit level and openings match the main top
• Common failure signs: rust-through, cracks, or warping; stripped/broken mounting points; burners wobble or won't secure properly

• Disconnect power and shut off the gas supply before servicing.
• Remove the main top; document locations and transfer burners, igniters, grommets, and brackets to the new box.
• Handle sheet-metal edges carefully; wear cut-resistant gloves.
• After reassembly, restore gas and power, verify ignition, and leak-test any disturbed gas connections.

Plastic leveling leg.

The Oven Rack is an OEM part for Frigidaire ovens, designed to provide a stable and durable surface for baking and roasting inside the appliance. This rack is essential for facilitating proper air circulation around food, ensuring even cooking and optimal baking results. The rack measures about 23 inches wide by 16 inches deep.

The primary reasons for replacing an Oven Rack usually involve normal wear and tear from regular use, including the effects of high heat, spills, and the burden of heavy pots and pans.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending from heat exposure or the weight of heavy cookware, which can affect cooking results
• Rust or corrosion that might not only compromise the integrity of the rack but also pose a risk of contaminating food
• Difficulty in sliding the rack in and out smoothly, which could indicate a misshapen rack or damage to its guides

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This oven door hinge controls and supports the door's movement, allowing it to open smoothly and close tightly. A secure, balanced hinge helps preserve the door seal and maintain consistent cooking temperatures.

• Supports door weight and balances spring tension for smooth opening and controlled closing
• Helps the door close fully against the gasket to reduce heat loss and temperature swings
• Replaces worn or bent hinges that cause sagging, slamming, or a door that won't stay closed
• Can reduce squeaks or binding and restore proper door alignment

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door; lock hinge clips or insert hinge pins before lifting the door off
• Note hinge orientation and spring tension when transferring; keep hands clear of moving spring arms
• After installation, verify door alignment and that the gasket contacts evenly all around

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This oven light lens retainer secures the glass light cover to the oven cavity so the bulb area stays protected during cooking. Replacing a damaged or missing retainer keeps the lens firmly in place and prevents nuisance loosening.

• Holds the glass light lens securely inside the oven cavity
• Helps shield the bulb area from splatters and debris
• Direct replacement for a bent, warped, or missing retainer ring
• Common symptoms: lens won't stay in, cover rattles, or difficulty securing the lens after service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks for easier access to the light cover area
• Support the glass lens while positioning the retainer to avoid drops or chipping
• Secure the retainer per your model's design; do not overtighten

This oven door latch assembly locks the door during self-clean and reports lock status to the control. Restores proper door locking and unlocking so bake and clean cycles can run safely and without interruptions. What it does:

• Secures the oven door during self-clean and when commanded by the control
• Provides locked/unlocked position feedback to the electronic control
• Helps resolve issues such as a door that won't lock or unlock
• Can address self-clean cycles that won't start or complete and lock-related error messages

• 1 latch assembly

• Disconnect power at the breaker and allow the oven to cool completely
• Access varies by model; you may need to pull the unit and remove the rear or top/control panel
• Photograph wire connections and linkage before removal; transfer any mounting hardware from the original
• After installation, test the lock operation before final reassembly

This body-side spacer installs on the cabinet side of the door or lid hardware. It sets the correct stand-off and alignment so the handle or latch feels solid and sits flush for a clean, secure fit. What it does:

• Positions and supports door/lid hardware on the cabinet/body side
• Maintains proper spacing to help prevent rubbing or scuffing of the panel
• Helps keep the handle or latch tight and aligned
• Common symptoms: loose or wobbly handle/latch, uneven alignment, visible gap or scuff marks at the mounting point

• Includes 1 body-side spacer

• Disconnect power to the appliance before servicing
• Support the handle/latch, remove the cabinet-side mounting screws, place the spacer, realign hardware, and reinstall screws snugly
• Reuse the original fasteners; avoid overtightening to prevent cracking the spacer or stripping threads
• Check door operation and alignment before finishing

This chassis support is a replacement mounting bracket that helps secure the appliance cabinet and internal components for proper alignment and stability. It restores structural support to reduce movement and rattling. What it does:

• Secures the appliance chassis or cabinet to maintain correct alignment
• Stabilizes internal components to reduce vibration and noise
• Helps prevent gaps, sagging trim, or misaligned panels
• Supports proper door and drawer operation by keeping the frame square

• One chassis support mounting bracket

• Disconnect power (and water if applicable) before starting any repair
• Use basic hand tools; fasteners may need basic-sized screwdrivers or nut drivers
• Wear gloves to protect hands from sharp sheet-metal edges

The Front Drawer Glide is an OEM replacement part for Frigidaire ranges and ovens. It facilitates the smooth opening and closing of the storage drawer typically located at the bottom of the range.

Symptoms of a faulty Front Drawer Glide include:

• Difficulty in opening or closing the drawer smoothly
• The drawer becoming stuck or jammed in its track
• Excessive noise or grinding sounds when operating the drawer
• Visible signs of wear, damage, or misalignment in the glide mechanism

Causes of needing to replace the front drawer glide can include normal wear and tear over time, physical impact or mishandling, or exposure to excessive heat or moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore range and oven models.

The Oven Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and regulates the oven's temperature by sending accurate temperature readings to the control board. This ensures that the oven maintains the desired cooking temperature throughout the baking or roasting process.

Causes of a bad oven temperature sensor include exposure to high heat over extended periods, electrical issues, or physical damage to the sensor probe.

Symptoms of a bad oven temperature sensor include:

• Incorrect oven temperatures
• Overheating or underheating during use
• Erratic temperature readings
• The oven not reaching the set temperature

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the right side cover. For left side use 316233500.

This is the left side cover. For right side use 316233400.

This molded cabinet liner insulation reduces heat transfer around the refrigerator cavity to help maintain steady temperatures and improve cooling efficiency. Designed to replace worn or damaged insulation that can allow frost buildup or increased run time. What it does

• Fills the airspace between the outer cabinet and inner liner to slow heat gain
• Helps the cooling system maintain consistent internal temperatures
• Can reduce frost accumulation caused by damaged or missing insulation
• Restores the original thermal barrier after repair or after removing interior components

• One pre-formed cabinet liner insulation piece

• Disconnect power to the appliance before starting any repair
• Remove shelves, panels, and fasteners as needed to access the insulation cavity
• Handle gently to avoid compressing or tearing the material; fit into existing channels or adhesive points
• If adhesive is required, use manufacturer-recommended high-temperature adhesive or fasteners

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Broil Element is an OEM replacement part for Frigidaire ovens. It is located at the top of the oven cavity and is responsible for providing the high heat required for broiling. This element heats up quickly and evenly to cook food from above, giving it a crisp and browned finish.

Over time, the broil element can degrade due to the high temperatures it operates under, as well as normal wear and tear from repeated use. Electrical surges or physical damage from cleaning or moving oven racks can also cause the element to fail. These factors can lead to the element no longer heating up properly or becoming completely non-functional.

Symptoms of a bad broil element include:

• The broiler not heating up or heating unevenly
• Visible signs of damage such as burns, blisters, or breaks in the element
• Sparking or unusual noises when attempting to use the broiler
• The oven taking longer to broil food or not achieving the desired browning effect
• The element not glowing red-hot during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Oven Baking Element is an OEM part for Frigidaire ovens. It is responsible for providing the necessary heat for baking and roasting by converting electrical energy into heat within the oven cavity. The baking element measures approximately 19.4 x 18.5 inches.

You should replace this baking element if it stops functioning properly, which can occur due to wear and tear over time, electrical malfunctions, or physical damage to the element.

Symptoms of a bad oven baking element include:

• The oven not heating up properly or at all
• Uneven baking or roasting results
• Visible damage such as breaks or burn marks on the element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Support for broil heating element.

The Door Lock Motor and Switch Assembly is an OEM component specifically designed for Frigidaire ranges. This locking system safely secures oven doors during cleaning or self-clean cycles through the electromagnetic operation.

Symptoms of a defective assembly include:

• Failure to engage or release the door lock function
• Loud buzzing or grinding noises from internal mechanisms
• Error codes related to door lock detection problems

Causes relate to wear from continual operation of locking solenoids over extended use. Exposure to cooking residues and cleaning chemicals can deteriorate switches.

This OEM Frigidaire part is also compatible with some Kenmore and GE appliance brands. Replacing worn components restores reliable door locking to automatically secure during high-heat cycles. Timely maintenance preserves safety functionality.


The Anti-Tip Bracket Kit is an OEM part for Frigidaire ranges and ovens. This part secures the appliance to the floor or wall, preventing it from tipping over when the oven door is opened or when heavy cookware is placed on an open door or extended rack. The kit typically includes a metal bracket, screws, and installation instructions.

Over time, or during instances of moving or remodeling, the anti-tip bracket may become dislodged or may not be reinstalled correctly, which can compromise the safety of the appliance.

Symptoms of a missing or improperly installed Anti-Tip Bracket include:

• The range or oven tilts forward when pressure is applied to an open door
• The appliance moves more easily than expected when nudged or cleaned
• Visible absence of a bracket at the lower back portion or floor area behind the appliance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Size: 8-18ab x 0.5 inch.

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.

0.6 fluid ounces

Size: 8-32t x 0.500 inch. Color: Black.
