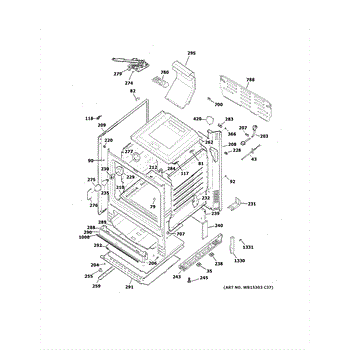

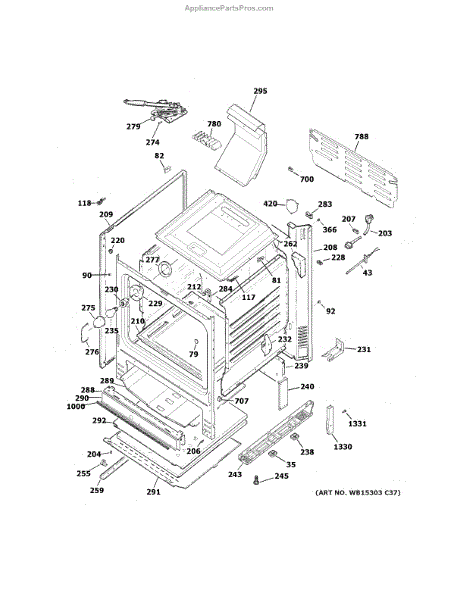

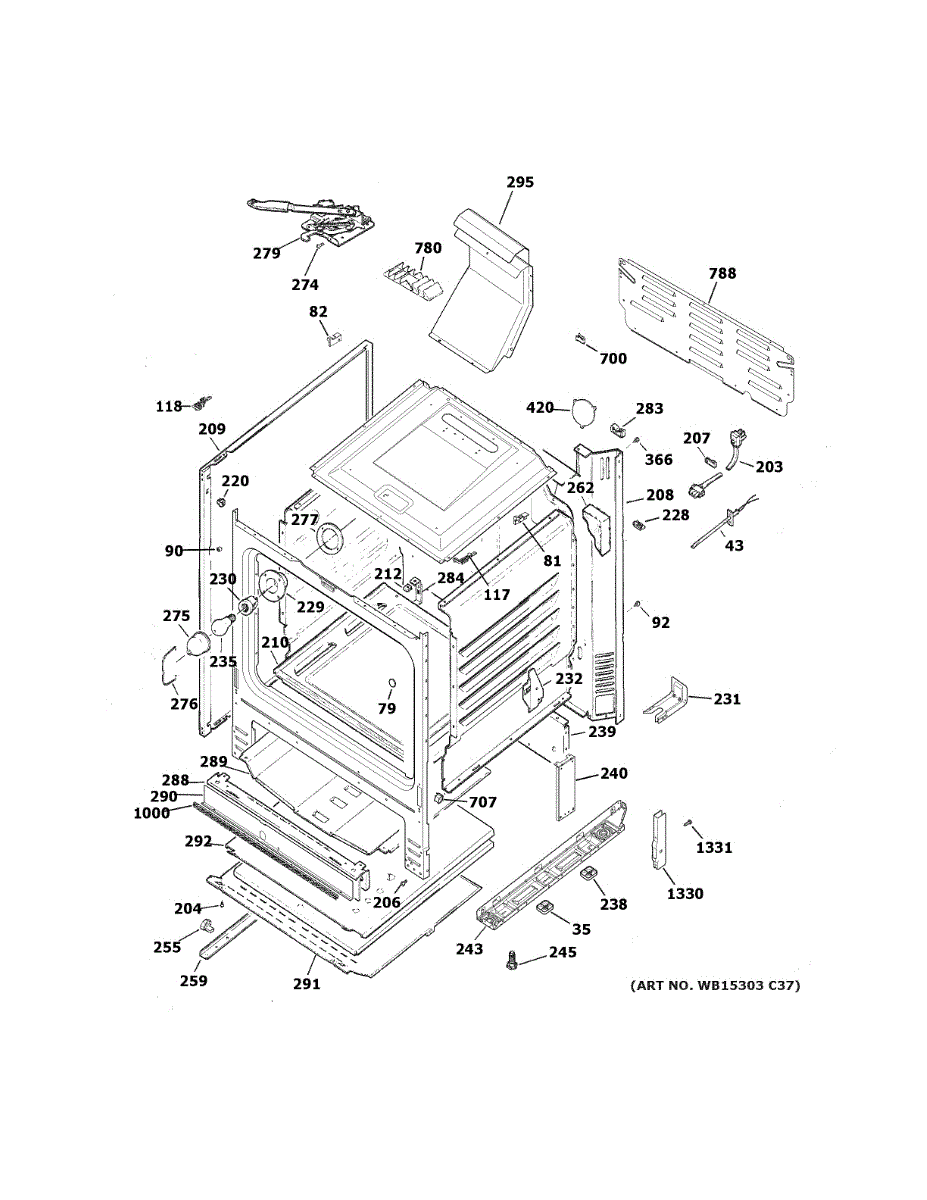

Parts for Ge JGB635DEK5BB: Body Parts

The Temperature Sensor is an OEM part for GE ovens and ranges, accurately measures and controls the temperature within the oven cavity. This part ensures your oven heats to the desired temperature and maintains it throughout the cooking process, providing consistent and reliable cooking results.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, physical damage, or wear and tear over time that affects its accuracy.

Symptoms of a bad Temperature Sensor include:

• The oven not reaching the set temperature or displaying an error code related to temperature regulation.
• Unpredictable oven temperatures, leading to inconsistent cooking results.
• The oven taking longer than usual to preheat, or not heating at all, indicating that the sensor is not properly gauging and adjusting the temperature.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rangetop holder secures the cooktop/rangetop assembly to the range frame, helping keep the surface stable and properly aligned for safe cooking. Durable replacement for worn or missing mounting hardware. What it does:

• Secures the rangetop/cooktop to the range body to prevent movement or rocking
• Keeps the cooktop flush and aligned for consistent burner operation
• Helps eliminate rattling or vibration caused by a loose mount
• Often replaced when the holder is bent, broken, or missing

• Disconnect power (and turn off gas if applicable) before starting work
• Basic hand tools required; follow OEM disassembly steps for access
• Inspect surrounding mounting points and hardware; replace any damaged fasteners
• Do not overtighten mounting screws; secure snugly to avoid stress on the bracket

This rangetop holder is a small support bracket that secures the cooktop/rangetop assembly and helps keep burners and trim properly aligned for safe, even cooking. It replaces a worn or damaged holder to restore stable cooktop support. What it does:

• Supports and stabilizes the rangetop/cooktop assembly to prevent shifting or sagging
• Keeps burner components and trim aligned for proper burner placement and operation
• Helps eliminate rattling or movement under normal use
• Addresses symptoms such as a loose or misaligned cooktop, noisy operation, or uneven burner spacing

• One rangetop holder support bracket

• Disconnect power and gas supply before beginning any repair
• Remove cooktop trim or grates as needed to access the holder; hand tools such as screwdrivers may be required
• Handle edges carefully to avoid cuts and protect finished surfaces from scratches
• Test fit and reassemble components to ensure proper alignment before restoring power/gas

Replacement front frame bumper that cushions and supports the appliance's front frame or door trim, helping reduce vibration and prevent metal-on-metal contact—restoring a secure, quiet fit for the door or trim assembly. What it does:

• Cushions the front frame/door trim to prevent wear, chipping, and metal rubbing.
• Helps align and stabilize the door/frame for proper closing and fit.
• Reduces rattling and vibration noise during operation.
• Commonly replaced when the door feels loose, rubs against the cabinet, or makes noise.

• Disconnect power to the appliance before beginning any repair.
• May require removal of the door trim or front panel—use basic hand tools and keep fasteners organized.
• Seat the bumper fully in its mounting location; avoid forcing or deforming the part.

This line cord supplies electrical power from the wall outlet to the appliance. Replacing a worn, cut, or heat-damaged cord restores safe, reliable power and can help resolve no-power or intermittent operation issues.

• Delivers AC power from the outlet to the unit's electrical system
• Helps correct no-power or intermittent power when the cord is moved
• Ideal replacement for cords with cuts, fraying, or burn/discoloration on the plug
• Supports proper grounding and safe operation when installed correctly

• Disconnect power before servicing; ensure the appliance is fully de-energized
• Match wire routing and connections to the product's wiring diagram; ensure a secure ground
• Use an appropriate strain relief if required by the product to prevent abrasion
• Route the cord away from sharp edges, moving parts, and hot surfaces

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

The Bottom Oven and Deflector Assembly is an OEM part for GE ovens. It serves the dual purpose of acting as a base for the oven and deflecting heat for more efficient cooking.

Causes of a bad Bottom Oven and Deflector Assembly can include exposure to high heat over extended periods, accidental impact or mishandling, and general wear and tear from regular use.

Symptoms of a bad Bottom Oven and Deflector Assembly include:

• Uneven cooking or baking results
• Visible cracks, warping, or damage to the assembly
• Unusual noises during oven operation
• Difficulty in maintaining set oven temperatures

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

This spacer base positions and supports components inside the appliance to maintain correct alignment and clearance, helping reduce vibration and wear. It's a simple replacement part when the original is cracked, broken, or missing. What it does:

• Provides a stable mounting surface and correct spacing for internal panels or components
• Restores proper alignment to reduce vibration, noise, and uneven operation
• Commonly replaced when the original spacer is cracked, deformed, or missing
• Helps maintain secure fastener engagement and proper component clearance

• Spacer base (single piece)

• Disconnect power to the appliance before starting any repair
• Follow manufacturer service instructions or parts diagram for correct location and orientation
• Basic hand tools typically required; inspect surrounding fasteners and mounting surfaces during installation

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer support holds one side of the range's storage/broiler drawer rail in place so the drawer opens and closes smoothly without sagging or binding.

• Supports the drawer slide/rail to keep the drawer aligned
• Helps prevent a sagging, crooked, or hard-to-open lower drawer
• Replaces a cracked, bent, or missing support bracket
• Common symptoms: drawer tilts, drags, or won't stay on track

• Unplug range and allow all surfaces to cool before servicing
• Remove the drawer to access the support
• Retain and transfer existing mounting hardware if needed
• Verify left/right position and orientation to match the original

This oven back insulation panel replaces the thermal lining at the rear of the oven cavity to help retain heat and protect surrounding components for more consistent baking and roasting performance. What it does:

• Replaces worn or damaged rear oven insulation that can allow excess heat loss
• Helps maintain stable oven temperatures for more even cooking
• Protects rear electronics, wiring, and cabinet materials from excess heat
• Can reduce heat transfer to surrounding cabinetry and lower exterior surface temperatures
• Address scorch or burning smells coming from the oven cavity due to deteriorated insulation

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely.
• Handle the insulation gently to avoid tearing; use gloves and eye protection as needed.
• Typically installed from the back of the oven cavity and secured with factory clips or screws.

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

This latch assembly restores a secure, positive closure on compatible GE cooking appliances. It engages the strike to keep the door closed and helps ensure features that require a latched door can run safely. What it does:

• Engages with the strike to keep the door securely closed
• Helps prevent heat loss from a loose or popping door
• Supports proper operation of cycles that require a latched door
• Replaces a bent, worn, or broken latch mechanism

• 1 latch assembly

• Disconnect power at the breaker; allow the appliance to cool completely before servicing
• Remove access panels/trim as outlined in the service manual to reach the latch
• Transfer any reusable mounting hardware; align the latch with the strike for smooth engagement
• Test door closure and operation before restoring power

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

This insulation clip secures appliance insulation panels and blankets, helping maintain proper thermal separation and reduce vibration. It's a small but important fastener used where insulation needs to be held in place. What it does

• Holds insulation or fiberglass blankets against cabinet walls or inner panels
• Helps reduce heat transfer and prevents insulation from sagging or shifting
• Minimizes rattles or vibration caused by loose insulation
• Commonly replaced when clips are broken, missing, or corroded

• One insulation clip

• Inspect surrounding insulation for damage and replace any deteriorated material before installing the clip
• Use appropriate gloves to protect hands from insulation fibers
• Reinstall panels carefully to avoid pinching or dislodging the clip

This receiver hinge is the fixed bracket in the oven frame that the door's hinge arm locks into. Replacing a worn receiver helps the door close squarely and seal correctly for safe, efficient cooking.

• Anchors the door hinge arm to the oven frame
• Keeps the door aligned and supported during opening and closing
• Wear or damage can cause a door that won't close fully or sits uneven
• May lead to heat escaping or a loose, wobbly door feel

• Disconnect power; if a gas range, shut off gas and allow the unit to cool completely
• Remove the door to access the hinge receivers in the frame
• Install the new receiver in the same orientation; ensure the hinge arm is fully seated
• Check door alignment and closure before returning to service
