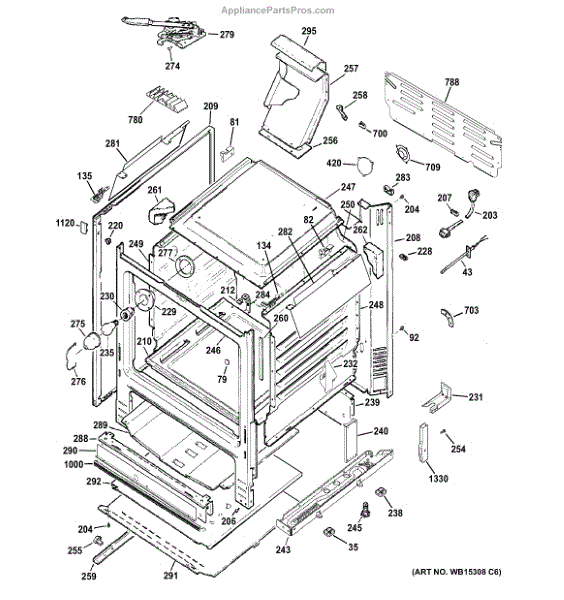

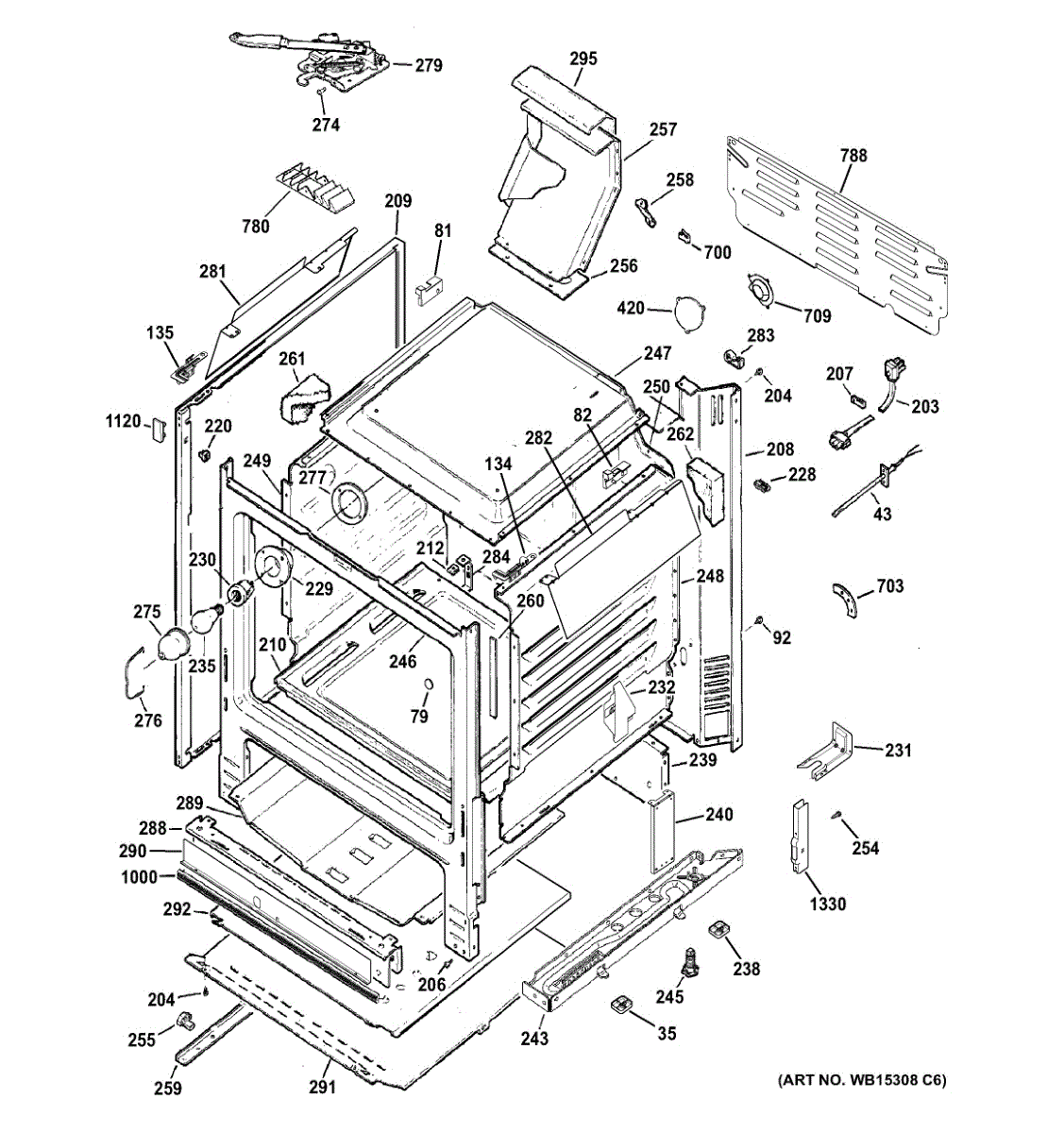

Parts for Ge JGB645DEK1BB: Body Parts

This rangetop holder secures the cooktop/rangetop assembly to the range frame, helping keep the surface stable and properly aligned for safe cooking. Durable replacement for worn or missing mounting hardware. What it does:

• Secures the rangetop/cooktop to the range body to prevent movement or rocking
• Keeps the cooktop flush and aligned for consistent burner operation
• Helps eliminate rattling or vibration caused by a loose mount
• Often replaced when the holder is bent, broken, or missing

• Disconnect power (and turn off gas if applicable) before starting work
• Basic hand tools required; follow OEM disassembly steps for access
• Inspect surrounding mounting points and hardware; replace any damaged fasteners
• Do not overtighten mounting screws; secure snugly to avoid stress on the bracket

This rangetop holder is a small support bracket that secures the cooktop/rangetop assembly and helps keep burners and trim properly aligned for safe, even cooking. It replaces a worn or damaged holder to restore stable cooktop support. What it does:

• Supports and stabilizes the rangetop/cooktop assembly to prevent shifting or sagging
• Keeps burner components and trim aligned for proper burner placement and operation
• Helps eliminate rattling or movement under normal use
• Addresses symptoms such as a loose or misaligned cooktop, noisy operation, or uneven burner spacing

• One rangetop holder support bracket

• Disconnect power and gas supply before beginning any repair
• Remove cooktop trim or grates as needed to access the holder; hand tools such as screwdrivers may be required
• Handle edges carefully to avoid cuts and protect finished surfaces from scratches
• Test fit and reassemble components to ensure proper alignment before restoring power/gas

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This manifold side bracket is a replacement mounting bracket that secures the gas manifold assembly in place, restoring proper alignment and reducing vibration for reliable burner performance. What it does:

• Supports and secures the gas manifold assembly to the range or cooktop frame
• Keeps manifold alignment for correct gas valve and burner positioning
• Prevents rattling or movement that can cause loose fittings or leaks
• Helps maintain consistent ignition and burner operation

• One manifold side mounting bracket

• Intended for users comfortable removing panels and working near gas components; turn off gas and power before starting
• Inspect manifold, fittings, and nearby components for damage or wear during replacement
• Use the OEM fasteners and torque to manufacturer recommendations; replace any damaged hardware

This line cord supplies electrical power from the wall outlet to the appliance. Replacing a worn, cut, or heat-damaged cord restores safe, reliable power and can help resolve no-power or intermittent operation issues.

• Delivers AC power from the outlet to the unit's electrical system
• Helps correct no-power or intermittent power when the cord is moved
• Ideal replacement for cords with cuts, fraying, or burn/discoloration on the plug
• Supports proper grounding and safe operation when installed correctly

• Disconnect power before servicing; ensure the appliance is fully de-energized
• Match wire routing and connections to the product's wiring diagram; ensure a secure ground
• Use an appropriate strain relief if required by the product to prevent abrasion
• Route the cord away from sharp edges, moving parts, and hot surfaces

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This cable clamp secures the appliance power cord where it enters the cabinet, protecting wiring from pull and chafe for safer, more reliable operation. Designed to hold the cord firmly in place and prevent accidental disconnection. What it does:

• Acts as a strain relief to prevent the power cord from pulling into or away from the appliance
• Protects wiring from abrasion and sharp edges at the entry point
• Helps maintain a secure electrical connection to reduce intermittent power issues
• Commonly used where the cord passes through a rear or bottom access panel

• Disconnect power before inspecting or replacing the clamp to avoid shock or injury
• Install at the cord entry so the clamp captures the cord jacket; tighten fastener securely but do not over-torque
• Verify the cord is correctly routed and not pinched when reassembling panels
• If any wiring or the cord jacket is damaged, replace the cord before restoring power

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This is the right side hinge guard. For left side use WB34K4.

This is the left side hinge guard. For right side use WB34K3.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer support holds one side of the range's storage/broiler drawer rail in place so the drawer opens and closes smoothly without sagging or binding.

• Supports the drawer slide/rail to keep the drawer aligned
• Helps prevent a sagging, crooked, or hard-to-open lower drawer
• Replaces a cracked, bent, or missing support bracket
• Common symptoms: drawer tilts, drags, or won't stay on track

• Unplug range and allow all surfaces to cool before servicing
• Remove the drawer to access the support
• Retain and transfer existing mounting hardware if needed
• Verify left/right position and orientation to match the original

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

This latch assembly restores a secure, positive closure on compatible GE cooking appliances. It engages the strike to keep the door closed and helps ensure features that require a latched door can run safely. What it does:

• Engages with the strike to keep the door securely closed
• Helps prevent heat loss from a loose or popping door
• Supports proper operation of cycles that require a latched door
• Replaces a bent, worn, or broken latch mechanism

• 1 latch assembly

• Disconnect power at the breaker; allow the appliance to cool completely before servicing
• Remove access panels/trim as outlined in the service manual to reach the latch
• Transfer any reusable mounting hardware; align the latch with the strike for smooth engagement
• Test door closure and operation before restoring power

This insulation clip secures appliance insulation panels and blankets, helping maintain proper thermal separation and reduce vibration. It's a small but important fastener used where insulation needs to be held in place. What it does

• Holds insulation or fiberglass blankets against cabinet walls or inner panels
• Helps reduce heat transfer and prevents insulation from sagging or shifting
• Minimizes rattles or vibration caused by loose insulation
• Commonly replaced when clips are broken, missing, or corroded

• One insulation clip

• Inspect surrounding insulation for damage and replace any deteriorated material before installing the clip
• Use appropriate gloves to protect hands from insulation fibers
• Reinstall panels carefully to avoid pinching or dislodging the clip

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

A small rubber bumper that cushions contact points to reduce noise and prevent wear on moving appliance parts. Fits where a soft stop or spacer is needed to protect surfaces and quiet door or panel movement. What it does:

• Acts as a shock absorber to cushion impact between moving parts or panels
• Reduces rattling and vibration for quieter operation
• Prevents metal-to-metal contact that can cause surface wear or chipping
• Maintains proper spacing where a soft stop or spacer is required

• Typically presses or snaps into a mounting hole or onto a stud; orientation before installing
• Clean mating surfaces to ensure a secure fit and proper adhesion if applicable
• Replace only when the old bumper is cracked, flattened, or missing
• Disconnect power and remove any obstructing panels if working near electrical components
