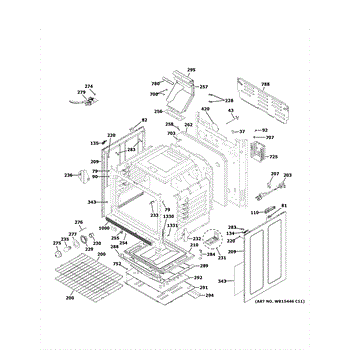

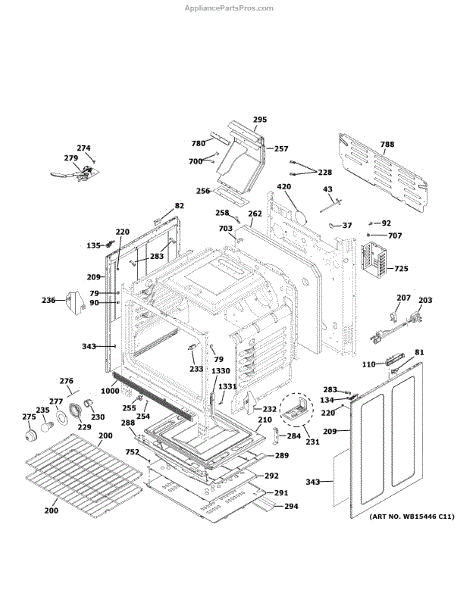

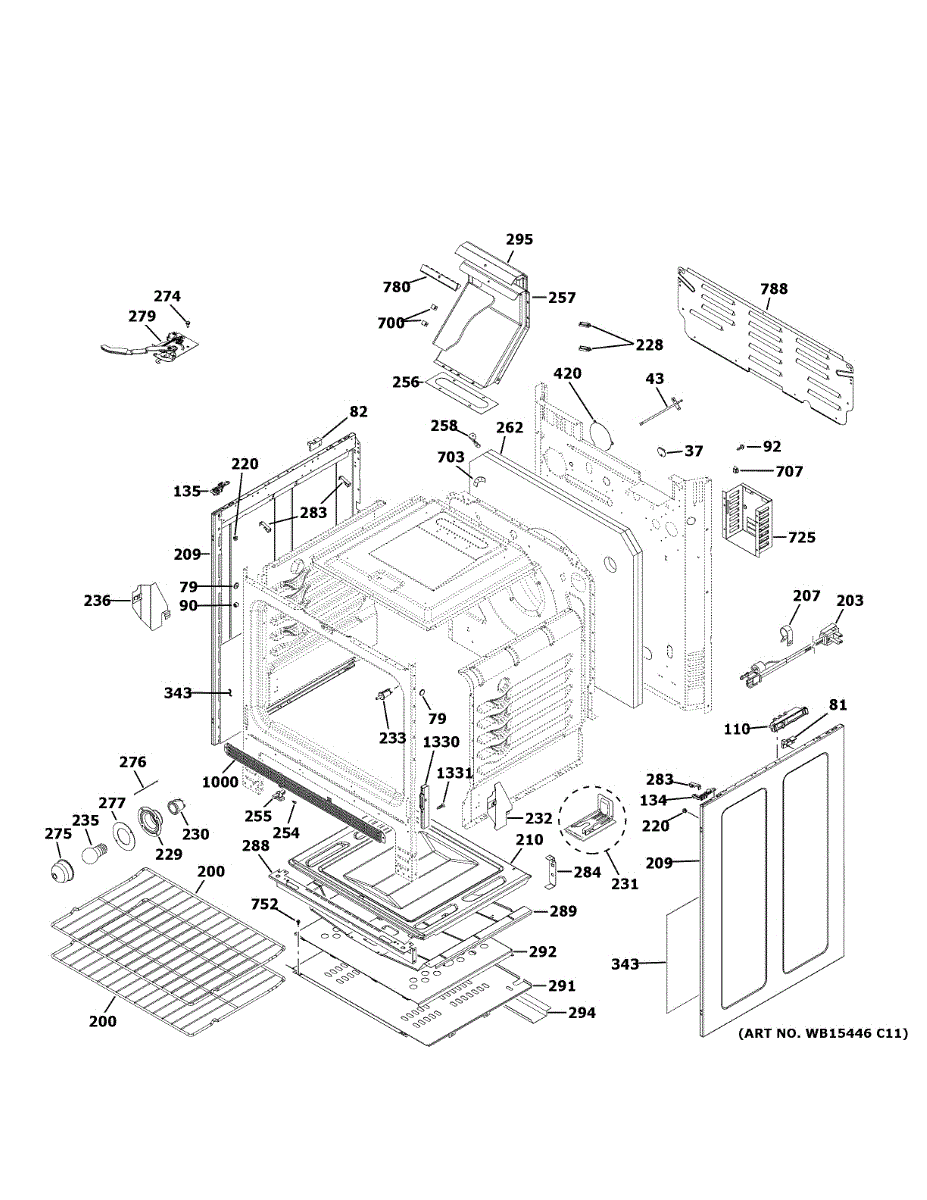

Parts for Ge JGB735SP1SS: Body Parts

This cover ignitor protects the oven or range ignitor assembly and helps keep the ignitor clear of drips and debris for reliable ignition. It's a simple replacement that restores the ignitor's protective shield. What it does

• Protects the ignitor element from spills, grease, and debris that can interfere with ignition
• Helps maintain consistent ignition by shielding the ignitor from direct contact
• Commonly used when the original cover is cracked, warped, or missing
• Can resolve ignition issues caused by physical damage or buildup on the ignitor area

• One cover ignitor

• Disconnect power (and gas supply on gas appliances) before starting any repair
• Handle the ignitor assembly carefully; avoid touching the ceramic or ignitor tip
• Use basic hand tools; ensure the cover seats properly without forcing or cracking it
• After installation, restore power/gas and test the burner or oven according to the appliance manual

The Temperature Sensor is an OEM part for GE ovens and ranges, accurately measures and controls the temperature within the oven cavity. This part ensures your oven heats to the desired temperature and maintains it throughout the cooking process, providing consistent and reliable cooking results.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, physical damage, or wear and tear over time that affects its accuracy.

Symptoms of a bad Temperature Sensor include:

• The oven not reaching the set temperature or displaying an error code related to temperature regulation.
• Unpredictable oven temperatures, leading to inconsistent cooking results.
• The oven taking longer than usual to preheat, or not heating at all, indicating that the sensor is not properly gauging and adjusting the temperature.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rangetop holder secures the cooktop/rangetop assembly to the range frame, helping keep the surface stable and properly aligned for safe cooking. Durable replacement for worn or missing mounting hardware. What it does:

• Secures the rangetop/cooktop to the range body to prevent movement or rocking
• Keeps the cooktop flush and aligned for consistent burner operation
• Helps eliminate rattling or vibration caused by a loose mount
• Often replaced when the holder is bent, broken, or missing

• Disconnect power (and turn off gas if applicable) before starting work
• Basic hand tools required; follow OEM disassembly steps for access
• Inspect surrounding mounting points and hardware; replace any damaged fasteners
• Do not overtighten mounting screws; secure snugly to avoid stress on the bracket

This rangetop holder is a small support bracket that secures the cooktop/rangetop assembly and helps keep burners and trim properly aligned for safe, even cooking. It replaces a worn or damaged holder to restore stable cooktop support. What it does:

• Supports and stabilizes the rangetop/cooktop assembly to prevent shifting or sagging
• Keeps burner components and trim aligned for proper burner placement and operation
• Helps eliminate rattling or movement under normal use
• Addresses symptoms such as a loose or misaligned cooktop, noisy operation, or uneven burner spacing

• One rangetop holder support bracket

• Disconnect power and gas supply before beginning any repair
• Remove cooktop trim or grates as needed to access the holder; hand tools such as screwdrivers may be required
• Handle edges carefully to avoid cuts and protect finished surfaces from scratches
• Test fit and reassemble components to ensure proper alignment before restoring power/gas

Replacement front frame bumper that cushions and supports the appliance's front frame or door trim, helping reduce vibration and prevent metal-on-metal contact—restoring a secure, quiet fit for the door or trim assembly. What it does:

• Cushions the front frame/door trim to prevent wear, chipping, and metal rubbing.
• Helps align and stabilize the door/frame for proper closing and fit.
• Reduces rattling and vibration noise during operation.
• Commonly replaced when the door feels loose, rubs against the cabinet, or makes noise.

• Disconnect power to the appliance before beginning any repair.
• May require removal of the door trim or front panel—use basic hand tools and keep fasteners organized.
• Seat the bumper fully in its mounting location; avoid forcing or deforming the part.

The Ignition Module is an OEM part for GE ranges. This part generates the spark that ignites the gas burners on the cooktop. It ensures that the burners light efficiently and safely, allowing for reliable cooking performance.

Causes of a bad ignition module can include electrical surges, general wear and tear, or damage from exposure to moisture or high temperatures.

Symptoms of a bad ignition module include:

• Burners not igniting or taking longer to ignite
• Weak or inconsistent spark
• Clicking sound without ignition
• Burners going out shortly after being lit

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Line Cord is an OEM part for GE gas ranges. It safely delivers gas and electrical supply between the range and household connections.

Causes of failure can be insulation cracks from repetitive plug insertion/removal, bent pins compromising contacts, or wire fatigue over prolonged usage.

Symptoms of a faulty line cord include:

• Gas valves failing to activate or ignite burners
• Lights/igniters not illuminating due to interrupted power
• Potential shock or fire hazard from exposed wire ends

This OEM part is also compatible with Hotpoint and RCA gas range models.

The bottom oven and deflector assembly is an OEM part for GE ranges. It serves as the protective shield for the bottom of the oven, preventing any drips, spills, or food debris from falling into the internal part of the range.

A bad bottom oven and deflector assembly can result in issues such as increased smoke during cooking, difficulty in cleaning the oven, or potential damage to the heating elements. Causes of a bad part can include wear and tear over time, accidental spills or exposure to high heat.

Symptoms of a bad bottom oven and deflector assembly include:

• Excessive smoke or burning smell during cooking
• Difficulty in cleaning the oven due to accumulated debris
• Uneven heating or cooking results
• Visible damage or warping of the deflector

Replace your worn-out or damaged bottom oven and deflector assembly with this genuine OEM GE part to restore your range.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This is the right side hinge guard. For left side use WB34K4.

The Plunger Switch is an OEM part for GE gas ranges. It is an electro-mechanical component that activates the burners and bake/broil modes when the oven door is securely closed.

Causes of failure include worn contact points, damaged wiring, or defective internal components.

Symptoms of a bad plunger switch include:

• Inability to select oven cooking functions when door is closed
• Error messages related to unsafe door conditions
• Random activation of burners with door open
• Failure of door interlock safety feature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This is the left side hinge guard. For right side use WB34K3.

This is a 10-32 hex-washer-head screw used to securely fasten appliance panels and components. It replaces worn or missing mounting screws so parts stay tight and appliance panels stop rattling or shifting. What it does:

• Fastens panels, brackets and trim to keep components stable
• Replaces stripped, missing or corroded mounting screws
• Helps stop vibration noise caused by loose parts
• Matches standard 10-32 machine-thread fittings for a secure hold

• Disconnect power to the appliance before servicing
• Use the correct 10-32 screwdriver or nut driver to avoid stripping the head
• Tighten securely but do not overtighten; excessive torque can strip threads or crack plastic
• If threads are damaged, replace with a new screw—do not force a damaged fastener

This drawer support holds one side of the range's storage/broiler drawer rail in place so the drawer opens and closes smoothly without sagging or binding.

• Supports the drawer slide/rail to keep the drawer aligned
• Helps prevent a sagging, crooked, or hard-to-open lower drawer
• Replaces a cracked, bent, or missing support bracket
• Common symptoms: drawer tilts, drags, or won't stay on track

• Unplug range and allow all surfaces to cool before servicing
• Remove the drawer to access the support
• Retain and transfer existing mounting hardware if needed
• Verify left/right position and orientation to match the original

A replacement vent brace that secures the appliance vent assembly and helps keep vent components aligned for steady airflow and quiet operation. Restores proper support to a loose or sagging vent assembly. What it does:

• Supports and stabilizes the vent/duct assembly so it stays aligned during use
• Reduces vibration and rattling caused by a loose vent bracket
• Helps maintain proper airflow by keeping vent components in the correct position
• Fits where the original vent brace mounts to the appliance frame

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent area; keep fasteners for reassembly
• Verify bracket orientation and screw locations match the original before tightening

This insulation assembly fits around the oven cavity to reduce heat transfer and help maintain stable cooking temperatures. It replaces damaged or compressed insulation that can let heat escape and affect performance. What it does:

• Wraps the oven cavity to slow heat loss and help maintain internal temperature
• Reduces excessive heat around the range exterior and adjacent cabinetry
• Helps reduce smoky burn-off from exposed hot spots caused by damaged insulation
• Supports efficient oven operation when gasket and door seals are intact

• One oven insulation assembly as pictured

• Disconnect power to the appliance before starting any repair
• Wear gloves and a dust mask; insulation fibers can irritate skin and lungs
• Avoid compressing or tearing the material during installation; position per OEM mounting points

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

The Automatic Latch is an OEM part for GE gas ranges. It is a component of the stove door that automatically secures the door shut when closed.

Causes of a bad automatic latch include wear and tear from continuous use over many years. The latch mechanism is subjected to repeated opening and closing of the heavy stove door. Exposure to cooking heat and grease build-up can also degrade plastic and metal parts.

Symptoms of a bad automatic latch include:

• The door not securely latching on its own when closed
• Gaps appearing around the sealed door perimeter
• Loose, gritty movement of the latch mechanisms
• Manual help needed to fully close and lock the door

This part is also compatible with some Hotpoint and RCA gas range models.

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available

This panel side foil is a decorative side trim that restores the appliance's finished appearance and helps protect the cabinet edge from everyday wear. It's a direct-replacement exterior trim piece. What it does

• Covers and protects the outer edge of the appliance panel or door to maintain a clean, finished look
• Hides scratches, nicks, or peeled paint along the panel edge
• Restores consistent appearance after panel or door repair or replacement
• Keeps the cabinet edge sealed from light contact and minor abrasion

• One panel side foil

• High-level replacement: remove the outer panel or door to access the existing foil before installing the new piece
• Use care to avoid scratching the new foil during installation; soft cloths and non-marring tools recommended
• If adhesive or fasteners are present on the original, remove old adhesive residue and follow OEM attachment method

This insulation clip secures appliance insulation panels and blankets, helping maintain proper thermal separation and reduce vibration. It's a small but important fastener used where insulation needs to be held in place. What it does

• Holds insulation or fiberglass blankets against cabinet walls or inner panels
• Helps reduce heat transfer and prevents insulation from sagging or shifting
• Minimizes rattles or vibration caused by loose insulation
• Commonly replaced when clips are broken, missing, or corroded

• One insulation clip

• Inspect surrounding insulation for damage and replace any deteriorated material before installing the clip
• Use appropriate gloves to protect hands from insulation fibers
• Reinstall panels carefully to avoid pinching or dislodging the clip

This receiver hinge is the fixed bracket in the oven frame that the door's hinge arm locks into. Replacing a worn receiver helps the door close squarely and seal correctly for safe, efficient cooking.

• Anchors the door hinge arm to the oven frame
• Keeps the door aligned and supported during opening and closing
• Wear or damage can cause a door that won't close fully or sits uneven
• May lead to heat escaping or a loose, wobbly door feel

• Disconnect power; if a gas range, shut off gas and allow the unit to cool completely
• Remove the door to access the hinge receivers in the frame
• Install the new receiver in the same orientation; ensure the hinge arm is fully seated
• Check door alignment and closure before returning to service
