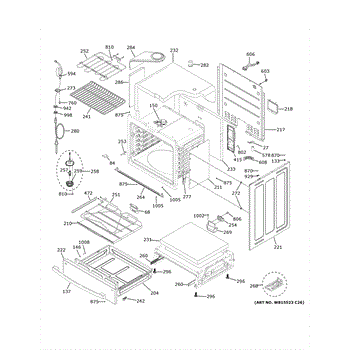

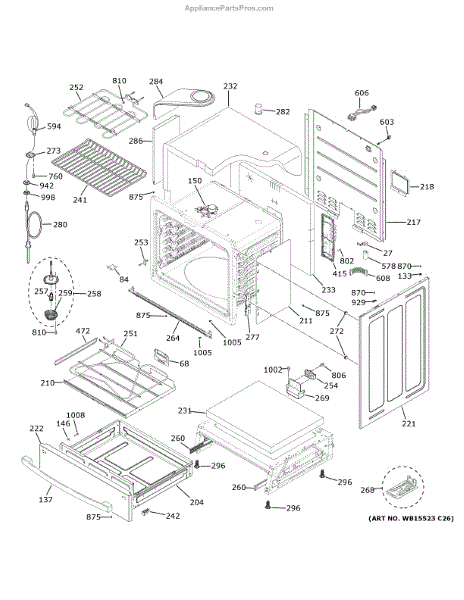

Parts for Ge PHS930BP1TS: Body Parts

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This drawer body and slides assembly replaces a damaged or worn refrigerator drawer and its sliding tracks to restore smooth opening and secure storage. It provides a full drawer with integrated slides for stable operation and proper fit. What it does

• Replaces the drawer shell and both slide mechanisms so the drawer opens and closes smoothly.
• Restores proper alignment and prevents sagging, sticking, or uneven movement.
• Helps contain food and items securely while allowing full access when pulled out.
• Addresses symptoms like a loose or tilted drawer, noisy sliding, or a drawer that won't stay closed.

• One complete drawer body with attached slide assemblies

• Disconnect power to the appliance before starting any work; follow manufacturer safety guidance.
• Remove contents and any obstructing shelves or rails to access the drawer assembly.
• Support the drawer during removal and installation to avoid pinching or dropping.

This reflector pan replaces the oven cavity reflector that sits under the bake element to direct heat and protect the oven floor. Restores proper heat distribution and helps prevent direct contact with the element for safer baking. What it does:

• Reflects and redirects heat from the bake element for more even oven temperatures
• Shields the oven floor from drips, spills and debris while baking
• Helps maintain correct bake performance when original pan is bent, corroded or missing
• Reduces risk of direct contact between food/drips and the heating element

• One reflector pan

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle carefully — edges may be sharp; use gloves to prevent cuts
• Typically installs under the bake element; follow your model's service manual for removal and replacement steps
• If corrosion or oven-floor damage is present, inspect surrounding components and replace as needed

This drawer panel is the exterior front that restores the look and seal of your appliance's pull-out drawer. It provides a finished appearance and gives the drawer a secure face that aligns with the cabinet opening. What it does:

• Replaces a damaged, dented or scratched drawer front to restore cosmetic appearance
• Provides a stable front surface for the drawer to close and latch properly
• Helps maintain an even gap and alignment so the drawer operates smoothly
• Prevents debris from entering the drawer area and protects internal components

• Remove power to the appliance before starting work when panels are near electrical components
• Access may require removing the drawer assembly—keep track of screws and mounting clips
• Align tabs and screw holes, then secure the panel without over-tightening to avoid cracking

This oven rack restores usable shelf space inside the oven so cookware sits level for baking and roasting. It replaces a missing, bent, or worn rack and helps pans slide in and out on the factory supports. What it does:

• Provides a stable shelf for cookware and bakeware during cooking
• Replaces bent, warped, or missing oven racks that cause uneven cooking or tipping
• Slides into existing oven rack supports to restore original shelf positions
• Helps maintain proper airflow and clearance for even baking when installed correctly

• One oven rack

• Allow the oven to cool and disconnect power before servicing
• Slide the rack into the factory rack supports until fully seated; do not force
• Inspect rack supports and slides for damage before installing; replace any damaged guides
• Use manufacturer instructions for safe handling and to avoid burns or injury

The drawer wedge aligns and stabilizes your range's lower storage/warming drawer so it slides smoothly and closes flush. Replacing a worn wedge restores proper fit and helps prevent rattling, scraping, and an uneven drawer gap.

• Keeps the lower drawer centered and level in the cabinet
• Provides a firm stop/spacing for a flush, consistent close
• Reduces side-to-side play and vibration during use
• Common symptoms: crooked drawer, uneven front gap, scraping noises, drawer not closing fully

• Disconnect power and allow the range to cool before servicing
• Remove the lower drawer to access the wedge location
• Note the wedge's orientation; install the new wedge in the same position
• Reinstall the drawer and verify smooth travel and proper alignment

Restore even, reliable bottom heat with this hidden bake element assembly. Located beneath the oven floor, it delivers the heat needed for consistent preheating and baking when the original element is burned out or damaged.

• Supplies primary bottom heat during Bake cycles for electric ovens
• Helps achieve normal preheat times and maintain set temperature
• Replaces an element that is open/shorted or visibly blistered/broken
• Symptoms can include no heat in Bake, very long preheat, or uneven baking results

• Disconnect power at the breaker before servicing
• Remove oven racks and oven floor panel to access the hidden element
• Note wire positions; transfer and reconnect leads one at a time to the new element
• Inspect wiring and high-heat insulation; repair/replace any damaged connectors before reassembly

The Broil Element Assembly is an OEM replacement part for GE electric ranges. As a dedicated upper heating element, it delivers intense radiant heat focused at the top of the oven cavity for broiling functions.

Causes of a bad broil element can include failure from extensive exposure to high temperatures during broiling cycles. Food debris and grease accumulation can also lead to premature wear over time.

Symptoms of a bad broil element assembly include:

• Inability to achieve or maintain high broiling heat levels near the top
• Incomplete or inconsistent browning/charring of broiled foods
• Safety hazards such as sparking or strange smells from damaged coils

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

The Terminal Block Assembly is an OEM part for GE electric ranges. It provides connections between internal wiring and the home's electrical supply.

Causes of failure can include corrosion of metal prongs from heat and moisture exposure over time, splitting insulation sheathing from continuous vibrations, or loosened mounting fasteners.

Symptoms of a faulty terminal block include:

• Intermittent or unstable power to heating elements surfaces
• Loose, frayed, or corroded wire attachments risking electrical faults
• Inability to maintain programmed cooking temperatures

This part is also compatible with Hotpoint and RCA electric range models.

The Halogen Bulb Kit is an OEM replacement part for GE ranges. It includes replacement halogen light bulbs that illuminate the interior of the range. P

Causes of bad bulbs can include normal burnout over the lifespan of the bulbs or damage from excessive heat. Halogen bulbs are prone to fail after a few years of use in the hot oven environment.

Symptoms of bad or burnt out bulbs include:

• Dark or poor interior lighting inside the oven
• Inability to see food cooking clearly through the window
• Burned or blackened bulb elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer slide and bracket assembly restores smooth, stable movement to a refrigerator or freezer drawer. It replaces worn or broken slides and brackets so drawers open and close evenly and stay supported during use. What it does:

• Replaces damaged or worn drawer slide and bracket to restore proper drawer alignment and support
• Reduces sticking, jamming, or uneven drawer movement
• Prevents drawer from falling or slipping out when opened
• Helps eliminate scraping or grinding noises from a misaligned slide

• Disconnect power to the appliance before starting any repair and remove food from the drawer area
• Remove the drawer and existing slide/bracket assembly; keep track of any screws or clips for reinstallation
• Install the new assembly aligned with the drawer and cabinet rails, using existing fasteners unless new hardware is specified
• Reinstall the drawer and test the action before returning contents; stop and recheck alignment if binding or noise persists

This front trim frame restores the finished edge and appearance of the appliance door or control opening, providing a clean, factory-look replacement that covers gaps and worn trim on compatible units. What it does:

• Replaces damaged, scratched or missing front trim to improve the appliance's appearance.
• Covers gaps where original trim has warped, peeled, or broken.
• Helps maintain a consistent seal line and edge protection around the door or control opening.
• Matches the original black finish to blend with the surrounding cabinet or door surface.

• One black front trim frame.

• High-level replacement; remove power and open door or panel before starting.
• Handle trim carefully to avoid scratching the finish during installation.
• Retain and reuse any original clips or screws when possible; replace only if supplied or specified.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This mount terminal block secures and organizes high-voltage wiring where the appliance power harness connects to the oven/range chassis. It provides a stable, insulated connection point to help restore reliable electrical contact. What it does:

• Holds and routes the incoming power wires and attaches them to the appliance wiring harness
• Provides insulated, screw-style terminal connections to maintain secure electrical contact
• Commonly replaces a cracked, melted, or loose terminal block that can cause poor power or intermittent operation
• Can stop visible sparking or burning at the connection point and prevent wire chafing

• Always disconnect all power at the breaker or unplug the appliance before servicing
• Verify wiring locations and take photos before removing the old block to ensure correct reconnection
• Use appropriate insulated tools and replace any damaged screws or wire terminals as needed

This hinge receiver secures the refrigerator door hinge to the cabinet frame, keeping the door aligned and closing smoothly. It replaces a worn or damaged receiver to restore proper door fit and operation. What it does:

• Secures the hinge pin to the cabinet frame so the door pivots correctly
• Restores proper door alignment and prevents sagging or uneven gaps
• Helps the door seat and seal fully to maintain internal temperature
• Stops clicking, rubbing or loose-feeling hinges caused by a broken receiver

• Unplug the appliance or disconnect power before starting work to avoid electrical hazards.
• Support the door while removing hinge fasteners to prevent injury or damage.
• Use proper hardware and hand tools; do not overtighten fasteners which can strip mounting holes.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement 8-18 screw with a SKT25 drive used to secure panels and components on compatible appliances. It restores proper fastening and helps eliminate loose or rattling parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and internal components where 8-18 thread hardware is required
• Replaces missing or stripped screws that cause loose panels or vibration
• Helps keep wiring and assemblies properly secured to prevent shifting during use
• Uses a SKT25 (Torx/socket) drive for a secure, tamper-resistant fit

• Use the correct SKT25 driver or bit to avoid cam-out and fastener damage
• Tighten securely but avoid over-torquing to prevent thread or component damage
• Disconnect power to the appliance before working on electrical panels or internal components
• If a screw is severely corroded or a hole is damaged, replace with the correct OEM fastener and repair the mounting point as needed
