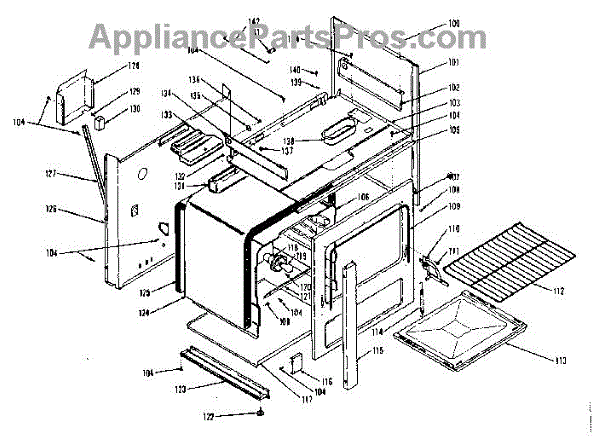

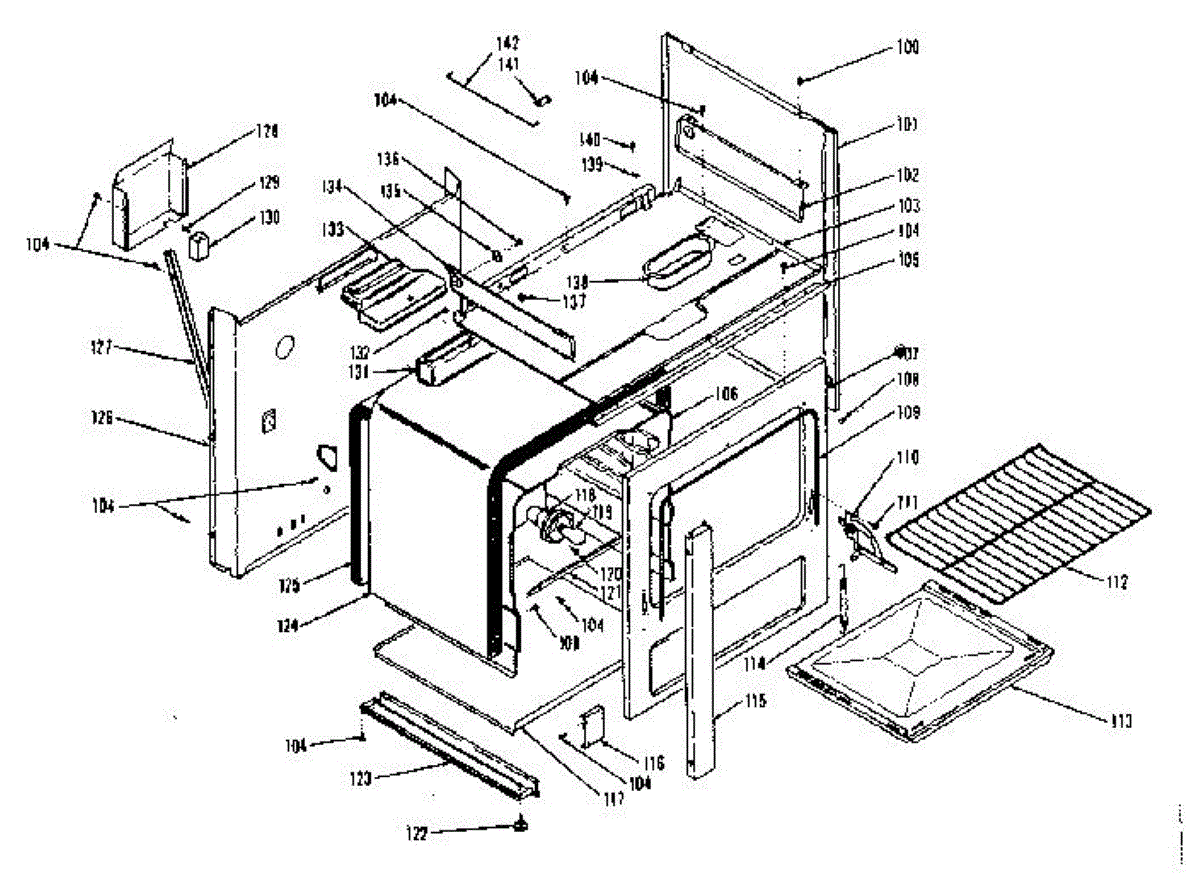

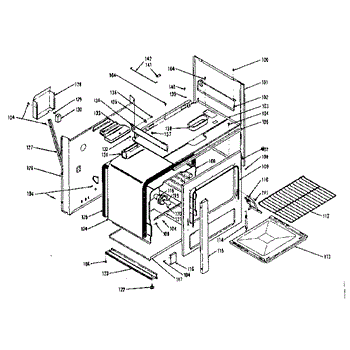

Parts for Kenmore 119.7478010 (1197478010, 119 7478010): Body Section Parts

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replaces a broken, worn, or damaged oven door hinge on your range. Allows the door to open and close smoothly. Order if your hinge is cracked or bent.

Hex washer head ,10-32 x 0.375. Ground

This retainer secures appliance insulation panels to the cabinet, helping keep insulation in place so the unit maintains proper temperature and reduces drafts. Durable plastic construction designed to fit OEM mounting points. What it does

• Holds insulation firmly against cabinet walls to prevent shifting or sagging
• Helps stop cold spots and uneven cooling caused by displaced insulation
• Reduces vibration noise from loose insulation material
• Commonly replaced when clips break, crack, or fail to grip

• One insulation retainer

• Disconnect power before working on the appliance to avoid shock
• Access may require removing interior panels or liners; save fasteners for reassembly
• Replace any damaged surrounding clips or seals to restore a proper fit
• If you encounter rusted or seized fasteners, use appropriate tools and corrosion-penetrating lubricant; avoid forcing parts

Left body side shield for ranges. Protects the side panel of your range from heat and damage. Replace if cracked, bent, or missing to restore protection.

This snap bushing is a push-in grommet that secures and protects wiring where it passes through sheet metal openings, helping prevent wire chafing and wear. It's a simple replacement that restores proper wire routing and protection. What it does:

• Holds wiring or harnesses in place at panel openings to prevent rubbing and abrasion
• Cushions wires against sharp edges to reduce the risk of wire damage and shorts
• Maintains correct wire routing to prevent pinching when panels are reassembled
• Common symptom: visible chafed insulation or loose wiring at an opening

• One snap bushing (quantity: 1)

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Access the panel or opening where the wiring passes through; remove any retaining screws or clips as needed
• Press the bushing into the hole until it snaps fully into place, then route the wire through the center
• Inspect surrounding wire insulation and replace or repair any damaged wiring before reassembly

A replacement support rod bracket that secures the refrigerator/freezer support rod to the cabinet, restoring proper door support and alignment for smooth opening and closing. Designed to match OEM fit and function. What it does:

• Holds the end of the door support rod in place to keep the door properly supported
• Prevents the support rod from slipping or detaching during normal use
• Helps restore correct door alignment and reduce sagging or uneven closing
• Works with the matching support rod and mounting hardware to maintain stable operation

• Inspect the support rod and mounting area for damage; replace any additional worn parts for a complete repair
• Remove power to the appliance and empty the door area before beginning work for safety
• Typically secures with existing screws or clips; keep original fasteners unless replacements are provided
