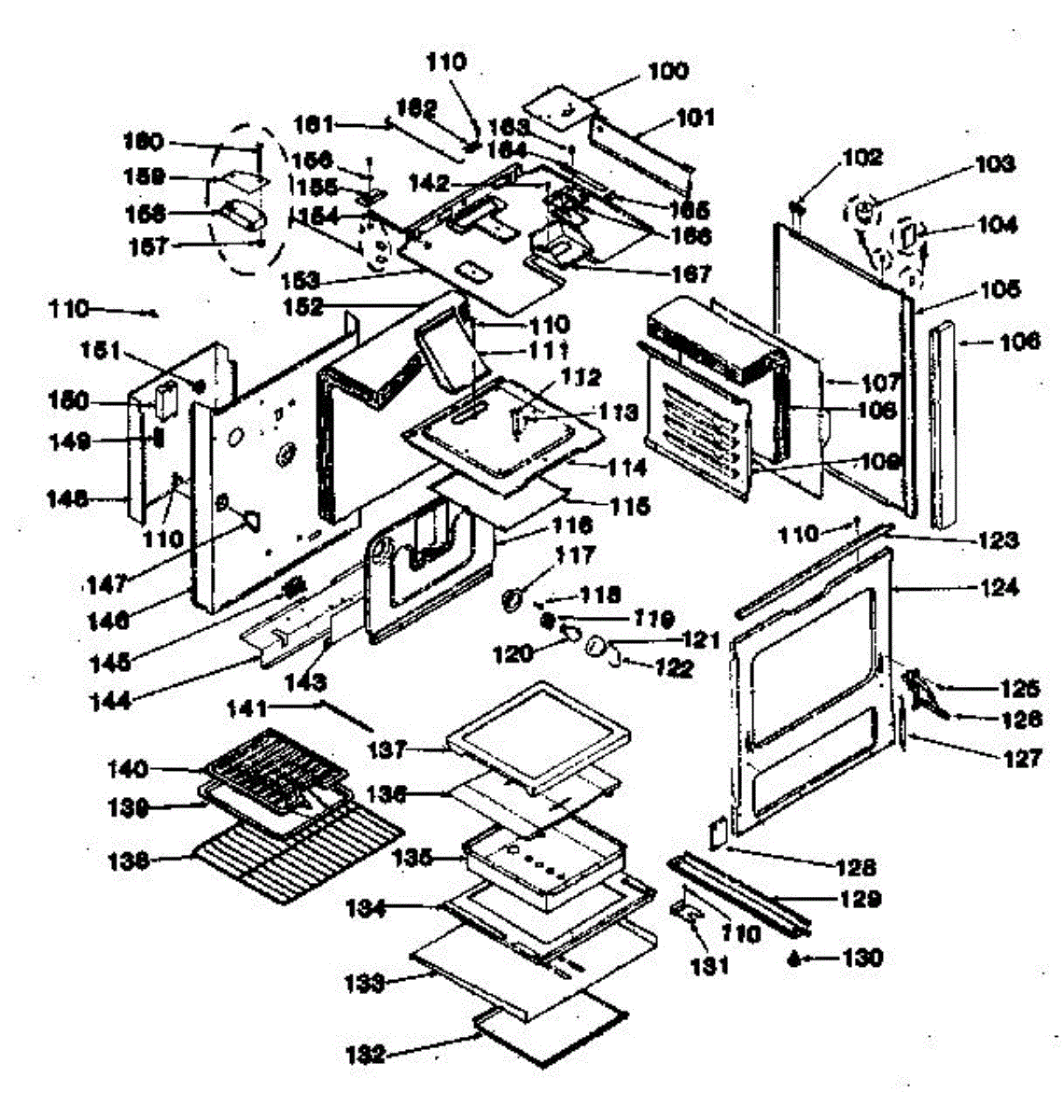

Parts for Kenmore 119.7498710 (1197498710, 119 7498710): Body Section Parts

Hex washer head ,10-32 x 0.375. Ground

The Hinge Assembly is an OEM replacement part for Frigidaire ranges. Responsible for securely mounting the range door or oven door while facilitating easy opening and closing, the hinge assy plays an important role in the overall usability of the appliance. Right side. For left side use 318348801

Causes of a bad hinge assembly can include normal wear and tear over time from frequent use of the appliance, as well as potential damage from attempts to force a misaligned door closed.

Symptoms of a failing hinge assembly include:

• The door not sitting flush or locking into place fully
• Increased resistance or difficulty when opening/closing
• Noises or vibrations coming from the hinge area
• Visible damage or lack of smooth movement in the hinges
• Gaps appearing around the door seal

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: For the right side use 318348800

The Hinge Assembly is an OEM part for Frigidaire ranges. This part allows the oven door to open and close smoothly while providing a secure attachment to the range body.

Causes of a bad Hinge Assembly can include wear and tear over time, physical damage from impact or mishandling, or failure of the internal mechanisms due to exposure to high temperatures or debris buildup.

Symptoms of a bad Hinge Assembly include:

• Difficulty opening or closing the oven door
• The door feeling loose or wobbly when opening or closing
• The door failing to stay in the open position
• Excessive noise or grinding sounds when operating the door

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Restore balanced, controlled oven door movement with this oven door spring. Replacing a worn or broken spring helps the door open and close smoothly and reduces sagging or sudden drops for safer, more reliable use. What it does:

• Provides counterbalance for the oven door hinge so the door opens and closes smoothly.
• Reduces door sagging, dropping, or closing too quickly caused by stretched or broken springs.
• Replaces the worn spring that can cause uneven or loose door movement.
• Helps restore proper door alignment and consistent hinge tension.

• Disconnect power to the appliance before beginning any repair.
• Springs are under tension—wear eye protection and gloves and use proper tools when removing/installing.
• Compare the new spring to the removed part to ensure correct orientation and fit before final installation.
• If the opposite door spring shows wear, replace both to maintain balanced door operation.

This two-piece broiler pan and insert set creates a proper broiling surface in your range or wall oven. The vented top supports food while drippings collect below, helping reduce smoke and splatter for more consistent browning.

• Provides a slotted broiling surface that lets fats drain into the pan below
• Helps protect the oven cavity from spills and reduce smoke during broiling
• Replaces a missing, warped, rusted, or heavily stained broiler pan assembly
• If existing pan causes uneven browning, smoke, or odors, replacing it can restore broiling performance

• Allow the oven and racks to cool completely before handling
• Wash the new pan and insert before first use; dry thoroughly
• Set rack height per your owner's manual; seat insert on the pan and slide onto the rack
• Do not cover the insert with foil unless your manual permits; keep clear of the broil element

This terminal block secures and connects incoming power wires to the appliance's internal wiring, restoring a reliable electrical connection for safe operation. Fits applications that use a 3-terminal power connection. What it does:

• Provides a durable connection point for incoming line, neutral and ground conductors
• Replaces damaged, cracked or loose terminal points that can cause intermittent power or burning smell
• Secures wiring to the heating element or control harness to maintain consistent power delivery
• Helps prevent arcing or poor contact from worn terminals when installed correctly

• One terminal block

• Always disconnect power at the breaker or unplug the appliance before servicing
• Verify wiring colors and terminal positions before removal; take a photo for reference
• Use appropriate insulated tools; tighten terminal screws securely but avoid over-torquing
• If corrosion or damaged wiring is present, replace affected wires or connectors as needed

A replacement support rod bracket that secures the refrigerator/freezer support rod to the cabinet, restoring proper door support and alignment for smooth opening and closing. Designed to match OEM fit and function. What it does:

• Holds the end of the door support rod in place to keep the door properly supported
• Prevents the support rod from slipping or detaching during normal use
• Helps restore correct door alignment and reduce sagging or uneven closing
• Works with the matching support rod and mounting hardware to maintain stable operation

• Inspect the support rod and mounting area for damage; replace any additional worn parts for a complete repair
• Remove power to the appliance and empty the door area before beginning work for safety
• Typically secures with existing screws or clips; keep original fasteners unless replacements are provided
