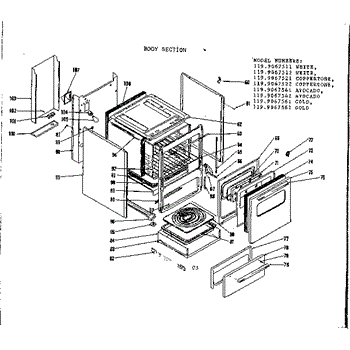

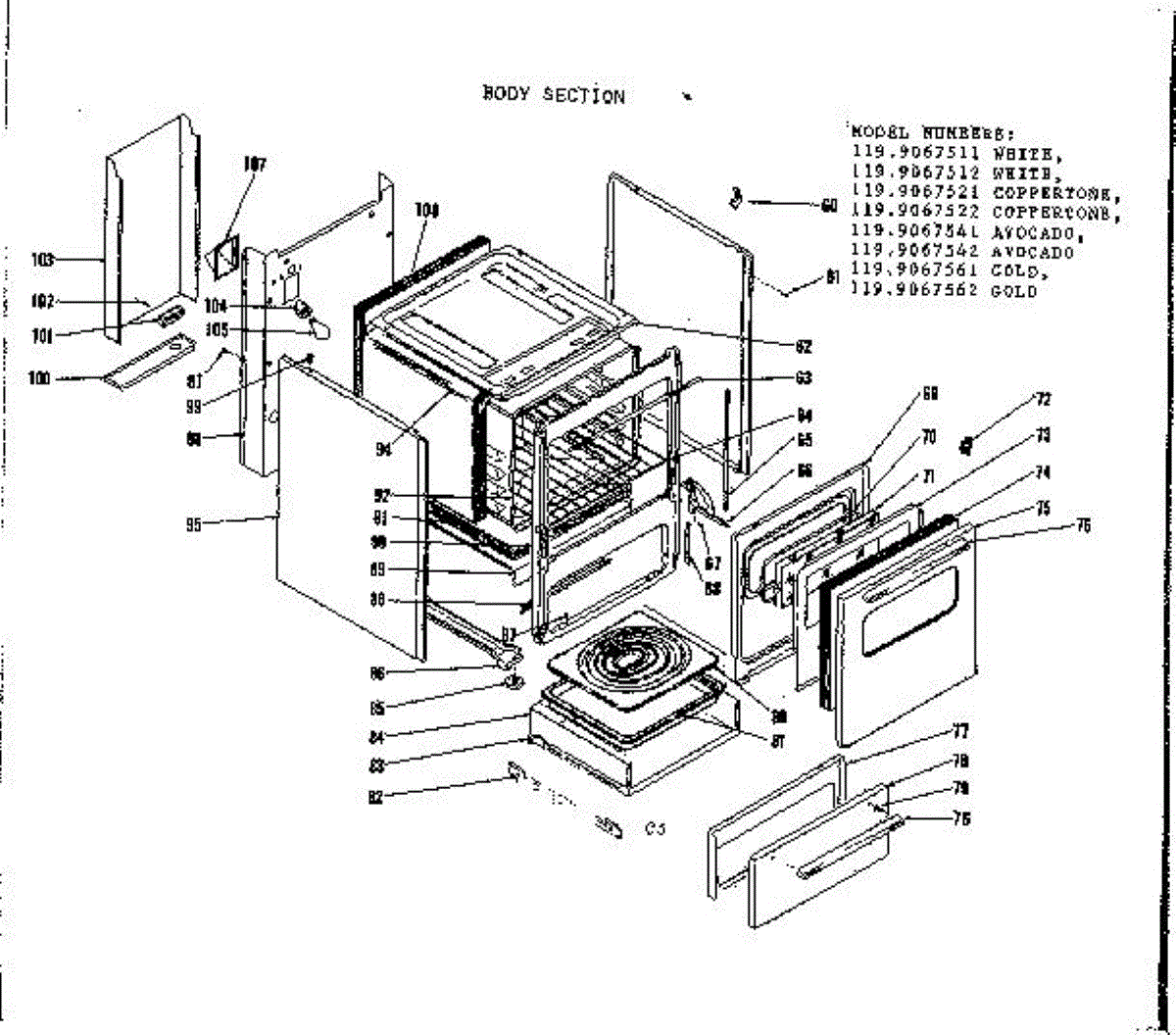

Parts for Kenmore 119.9067541 (1199067541, 119 9067541): Body Section Parts

This two-piece broiler pan and insert set creates a proper broiling surface in your range or wall oven. The vented top supports food while drippings collect below, helping reduce smoke and splatter for more consistent browning.

• Provides a slotted broiling surface that lets fats drain into the pan below
• Helps protect the oven cavity from spills and reduce smoke during broiling
• Replaces a missing, warped, rusted, or heavily stained broiler pan assembly
• If existing pan causes uneven browning, smoke, or odors, replacing it can restore broiling performance

• Allow the oven and racks to cool completely before handling
• Wash the new pan and insert before first use; dry thoroughly
• Set rack height per your owner's manual; seat insert on the pan and slide onto the rack
• Do not cover the insert with foil unless your manual permits; keep clear of the broil element

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
