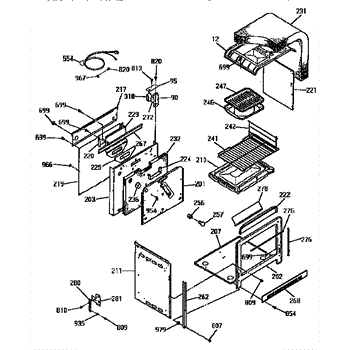

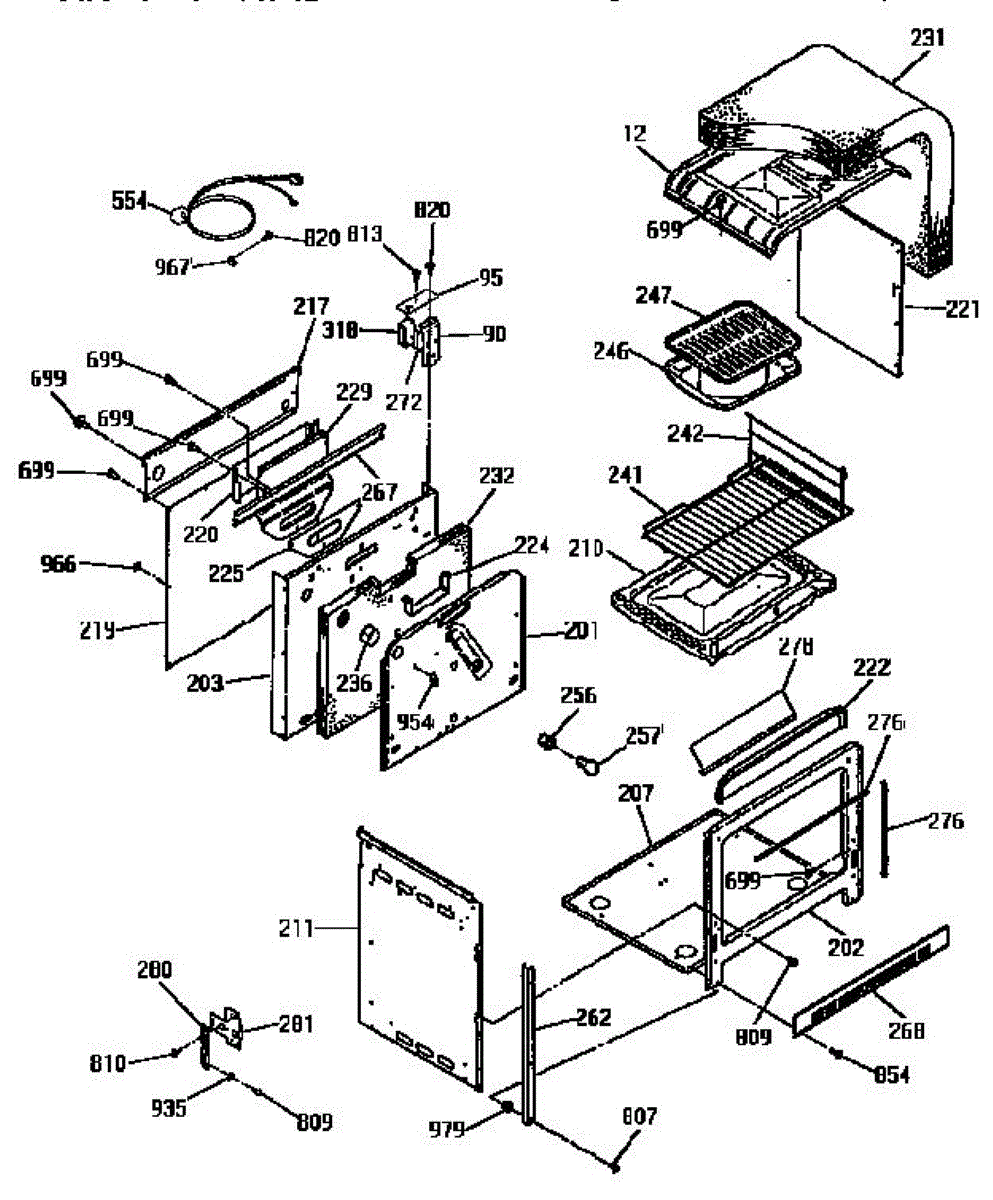

Parts for Kenmore 911.3524190 (9113524190, 911 3524190): Body Section Parts

This oven back lining is the rear interior panel that restores the oven cavity surface and protects internal insulation and components. It helps maintain a clean, intact cooking cavity for safe, efficient operation. What it does:

• Replaces damaged, dented, or corroded rear cavity panel to restore a sealed oven interior
• Protects insulation, wiring, and rear-mounted components from heat and food debris
• Provides the mounting surface/support for rear elements and related hardware
• Helps maintain consistent cavity temperatures by covering the back wall

• One oven back lining

• Disconnect power (and gas if applicable) before beginning any service
• Remove oven racks, broil element (if applicable), and access panels to reach the back lining
• Handle panel edges with care—use gloves to avoid cuts and protect the oven finish
• Retain or replace any insulation, gaskets, or fasteners that were removed; follow OEM diagram for correct placement

This light insulation retainer secures the oven light assembly and surrounding insulation to keep the lamp stable and insulation in place for safe, efficient oven operation. It helps reduce light movement and prevents insulation from shifting. What it does

• Holds the oven light housing and adjacent insulation in the correct position
• Keeps insulation from sagging or falling into the cavity
• Prevents the light from rattling or becoming misaligned during use
• Helps maintain proper heat containment around the light area

• Disconnect power to the appliance and allow the oven to cool before servicing
• Remove the oven light cover and any access panels as needed to reach the retainer
• Use basic hand tools; handle the light bulb and glass cover carefully to avoid breakage

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

This oven lamp holder is the replacement socket that secures and powers the interior oven light, restoring safe illumination for checking food without opening the door. Designed to fit industry-standard oven lamp bulbs. What it does:

• Provides a secure electrical connection and mounting point for the oven light bulb
• Enables interior oven illumination so you can monitor cooking without opening the door
• Commonly replaces cracked, burned, or loose lamp sockets that cause the light to flicker or not work
• Works with the oven's existing wiring and bulb type

• Disconnect power to the appliance at the breaker before servicing to avoid shock
• Replace only when the oven is cool; use gloves to protect hands and bulb surfaces
• Inspect wiring and connectors for damage; replace any damaged wiring per OEM guidance

This insulator protects and cushions the appliance control module, helping prevent electrical shorts and physical damage to the board. It's a simple replacement that supports reliable control operation. What it does:

• Separates the control/module from the chassis to prevent shorting and rubbing
• Cushions the module to reduce vibration-related connector issues
• Helps keep wiring and components positioned correctly for consistent electrical contact
• Can reduce intermittent control problems caused by loose or damaged insulation

• Disconnect power before beginning any repair to avoid shock or damage
• Access the control panel or console per your appliance's service instructions
• Fit the insulator under/around the module as shown in the parts diagram; ensure correct orientation and secure mounting hardware
• Avoid touching circuit board components; if connectors were removed, reseat firmly before reassembly

This spark module generates the high-voltage pulses that ignite the surface burners on your gas range or cooktop. Replacing a weak or failed module restores reliable clicking and ignition on the burners served by this 2-output (2+0) circuit. What it does:

• Generates high-voltage pulses to the surface-burner igniters when a control knob is turned to ignite
• Controls spark for two burners (2+0 configuration)
• Common failure symptoms: no clicking/spark on the affected burners, intermittent/weak spark, or needing a match to light

• 1 spark module

• Disconnect electrical power and shut off the gas supply before servicing
• Access the module (typically beneath the cooktop or behind the control panel) and label/photograph wiring for reference
• Transfer wires one at a time; ensure high-voltage leads are fully seated and the module is properly grounded
• Mount securely, reassemble, restore utilities, and test ignition on both burners

• "2+0" denotes a two-outlet surface-burner spark module; replace with the same configuration as the original

• A failed module typically affects all burners it serves; if only one burner won't spark, inspect that burner's igniter and switch first

ST10-16 X 7/16"

This black-finished screw secures appliance panels, brackets, or trim in place. Replacing a missing or damaged fastener restores a solid fit and helps prevent rattling, gaps, and loose components.

• Fastens panels, trim, brackets, or covers on the appliance
• Helps maintain proper alignment and reduces vibration noise
• Common replacement when the original is lost, stripped, rusted, or broken
• Symptoms include loose or wobbly parts, rattling, or visible gaps

• Disconnect power; for gas appliances, also shut off the gas supply
• Allow hot surfaces to cool before servicing
• Start threads by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reuse any original washers or spacers in the same order and location

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12
