Janice C Piney Flats , TN August 26, 2023 Appliance: Model BOSCH SHEM78W52N/10 Door gasket was deteriorating leaving black marks on anything that touched it. We replaced the black door seal gasket around the front of the dishwasher. The old black seal gasket had begun to deteriorate, every time it was touched black stuff would rub off onto hands and onto utensils in the upper basket. We wore some disposable gloves to remove the old seal to avoid getting the black stuff on our hands. Before entirely removing the old seal gasket we studied its placement to tell which way the new seal gasket should be placed. We didn’t want to place the seal gasket backwards. I folded the seal gasket in half as the video suggested to find the center and marked it with a magic marker. We carefully cleaned the narrow channel groove where the new one would fit to be sure there was no debris or black stuff remaining. As the video suggested we aligned the marked center of the seal with the door latch and began pressing the seal gasket into the channel groove at the top center. We finger pressed left and right along the top and stopped at the curves. We looked to see how much seal gasket was hanging down and measured to be sure an equal amount would eventually be pressed into the side grooves with the ends in a similar distance from the bottom. We knew not to stretch the seal gasket. Once the seal gasket was in place we double checked with finger pressing to be sure it was equally pressed into place all around. Almost done! I used a paper towel with ordinary glass cleaner to clean the door where the seal gasket makes contact to be sure no black stuff remained. I removed the strainer from the bottom of the dishwasher and scrubbed it clean with a toothbrush and liquid dish detergent. The black stuff from the old seal gasket had accumulated in the screens and plastic parts. This job was quite easy, did not require any tools except paper towels, spray cleaner, toothbrush, liquid dish detergent and an old rag. We ran the dishwasher through a short rinse cycle to be sure there would be no leaks. Read More... 10 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes
Dawn P Everett , WA February 14, 2023 Appliance: Bosch Dishwasher SHX68T52UC/02 E 15 error message; Bosch dishwasher Stopped running mid cycle. I found a slow drip coming from the water inlet valve. This was the source of the E-15 message. The water collected around the styrofoam disk, which then tripped the leak sensor. It was easy to replace the valve, following the video instructions. At the same time, I decided to replace the two door seals, due to periodic leaking in the front of the dishwasher. The lower door seal replacement procedure was long, but the video was very helpful and thorough. The larger, upper door seal was very quick to replace, but there was one problem. The video did was not clear as to the proper orientation of the blade seal with respect to the seal taper. I first installed the seal with the taper pointing outwards. The result was leakage and noisy operation. I found a second source that specified a definite orientation of the seal; that the taper should be pointing inwards. After turning the seal around, the leaking stopped and the dishwasher ran quiet. Success! I suggest that you update your installation video for the upper door seal to make this more clear. Thanks. Read More... 9 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Pliers, Screwdrivers

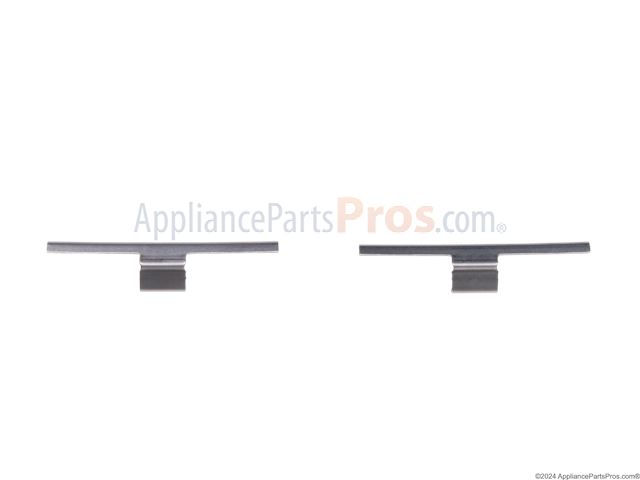

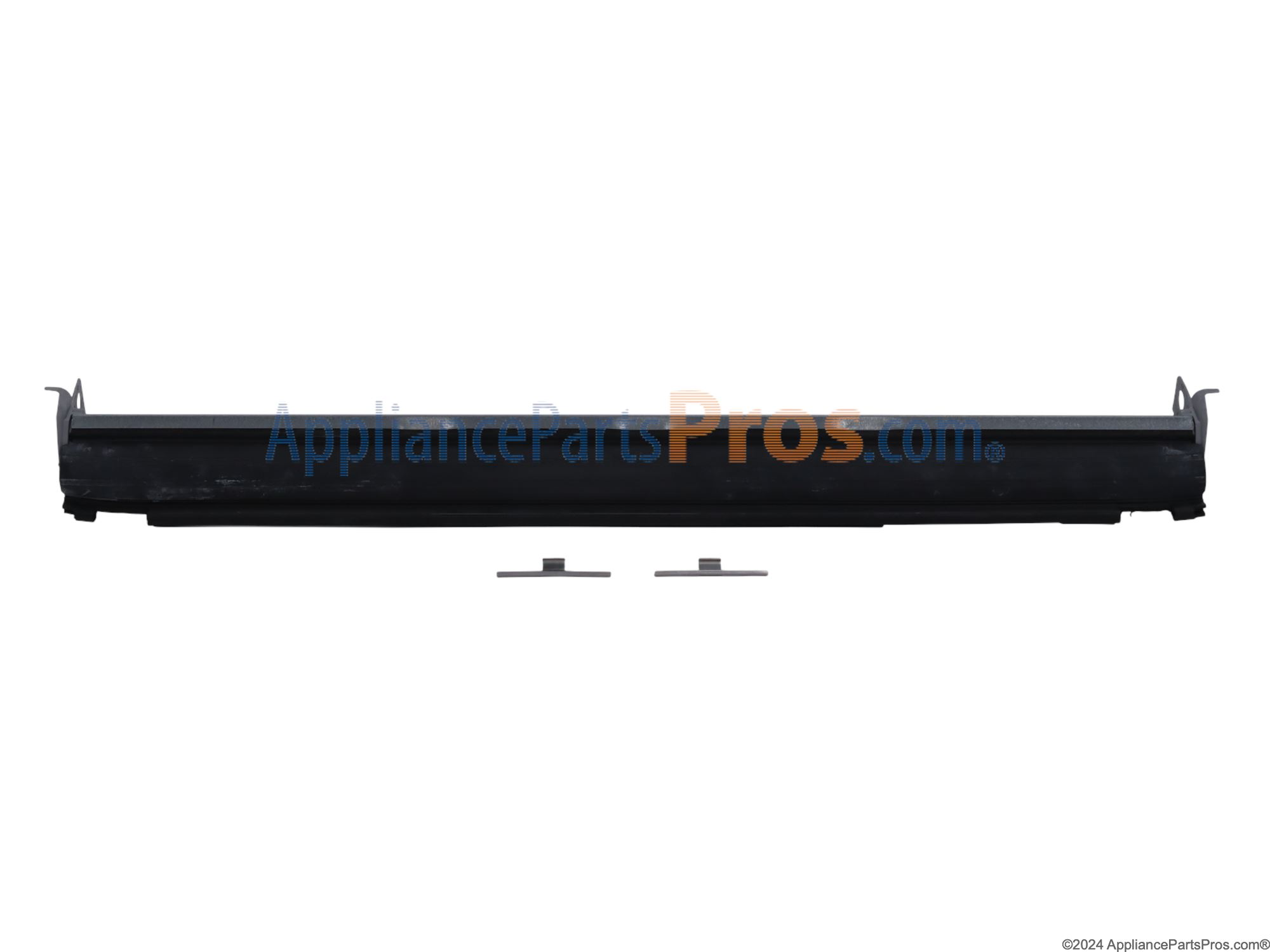

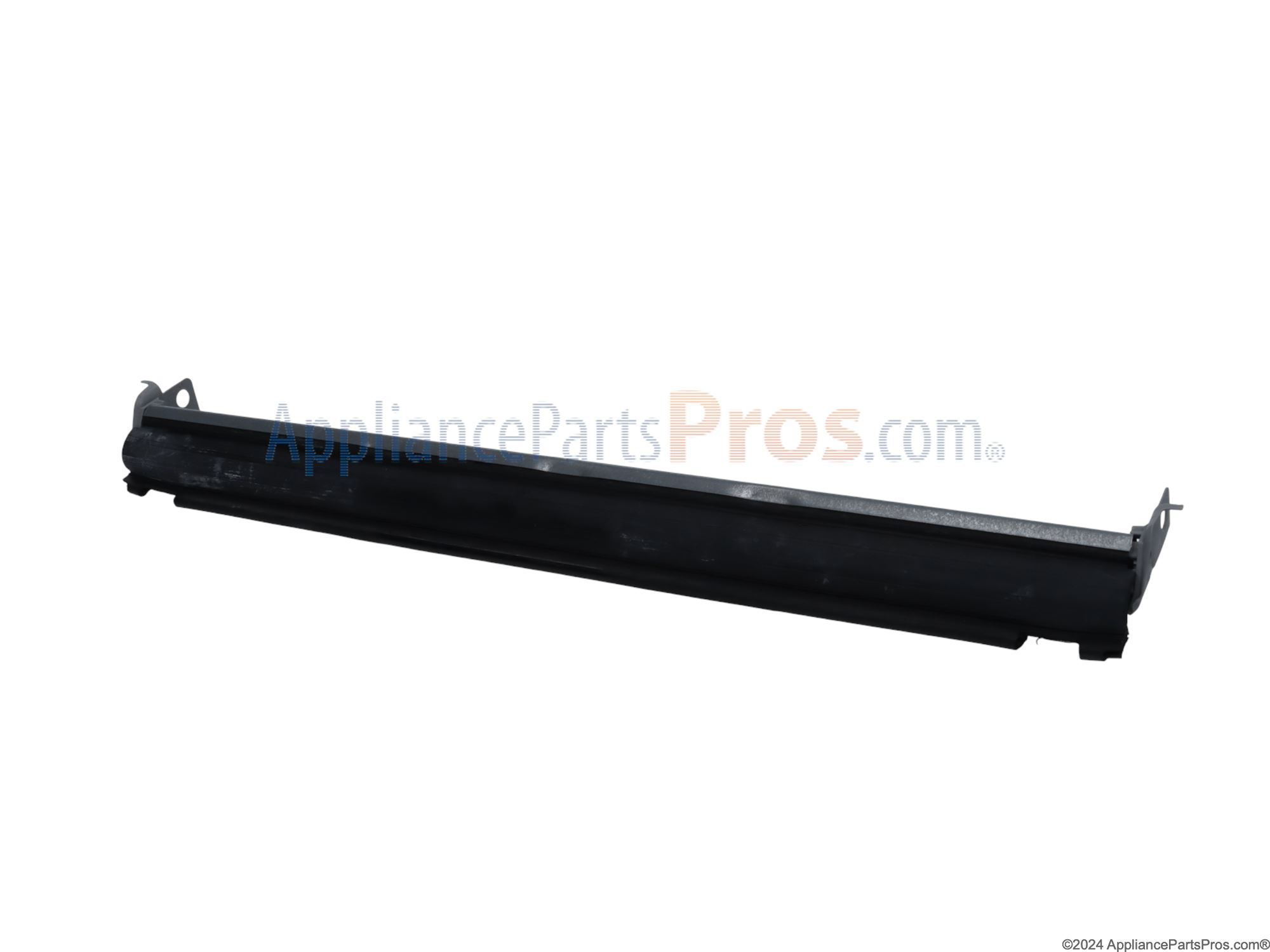

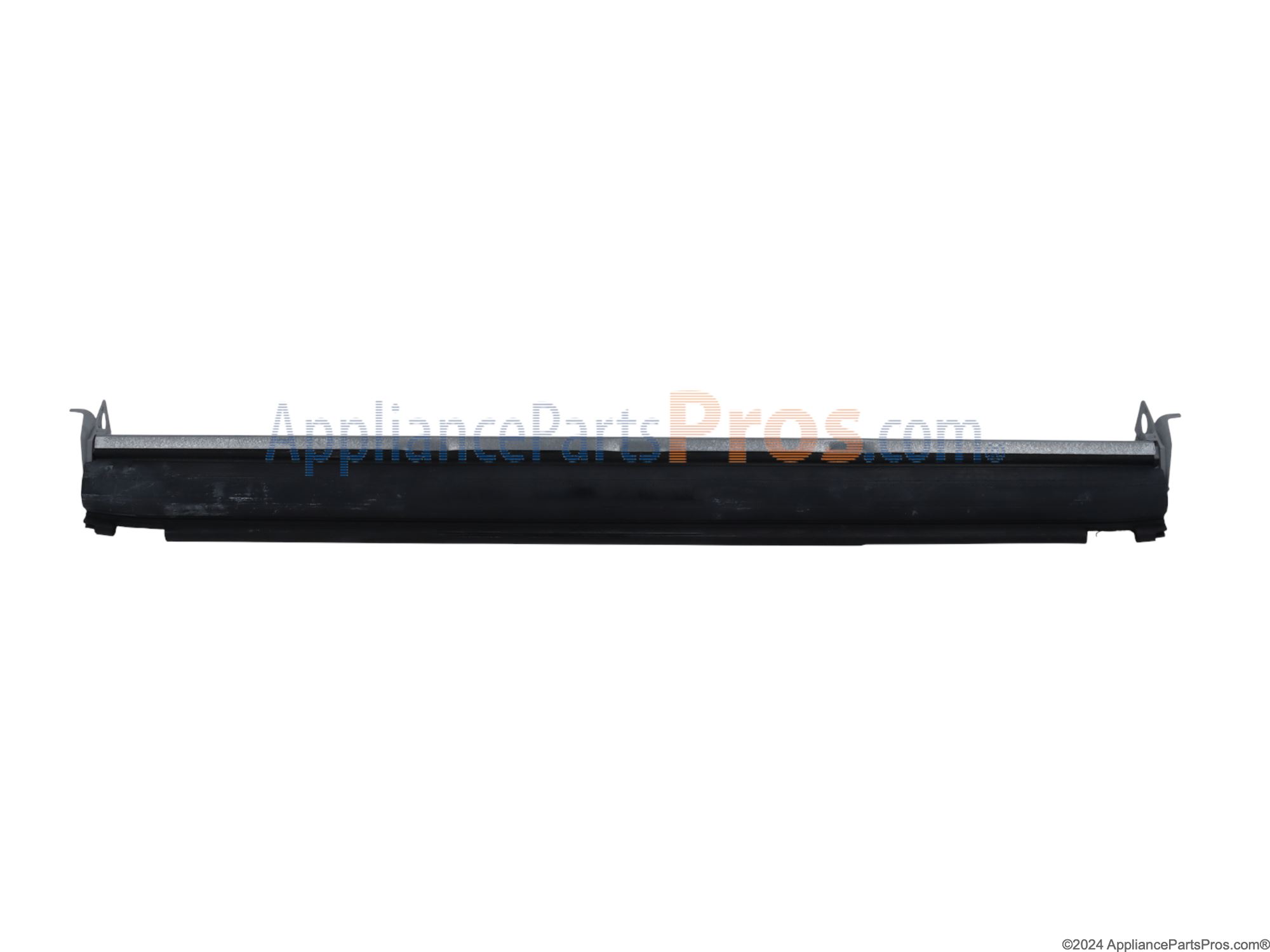

Jim F Fairfax Station , VA April 12, 2020 Broken lower door seal on dishwasher/ I fixed it using the appliance parts pros video and by ordering the part form them. Read More... 3 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Pliers, Screwdrivers

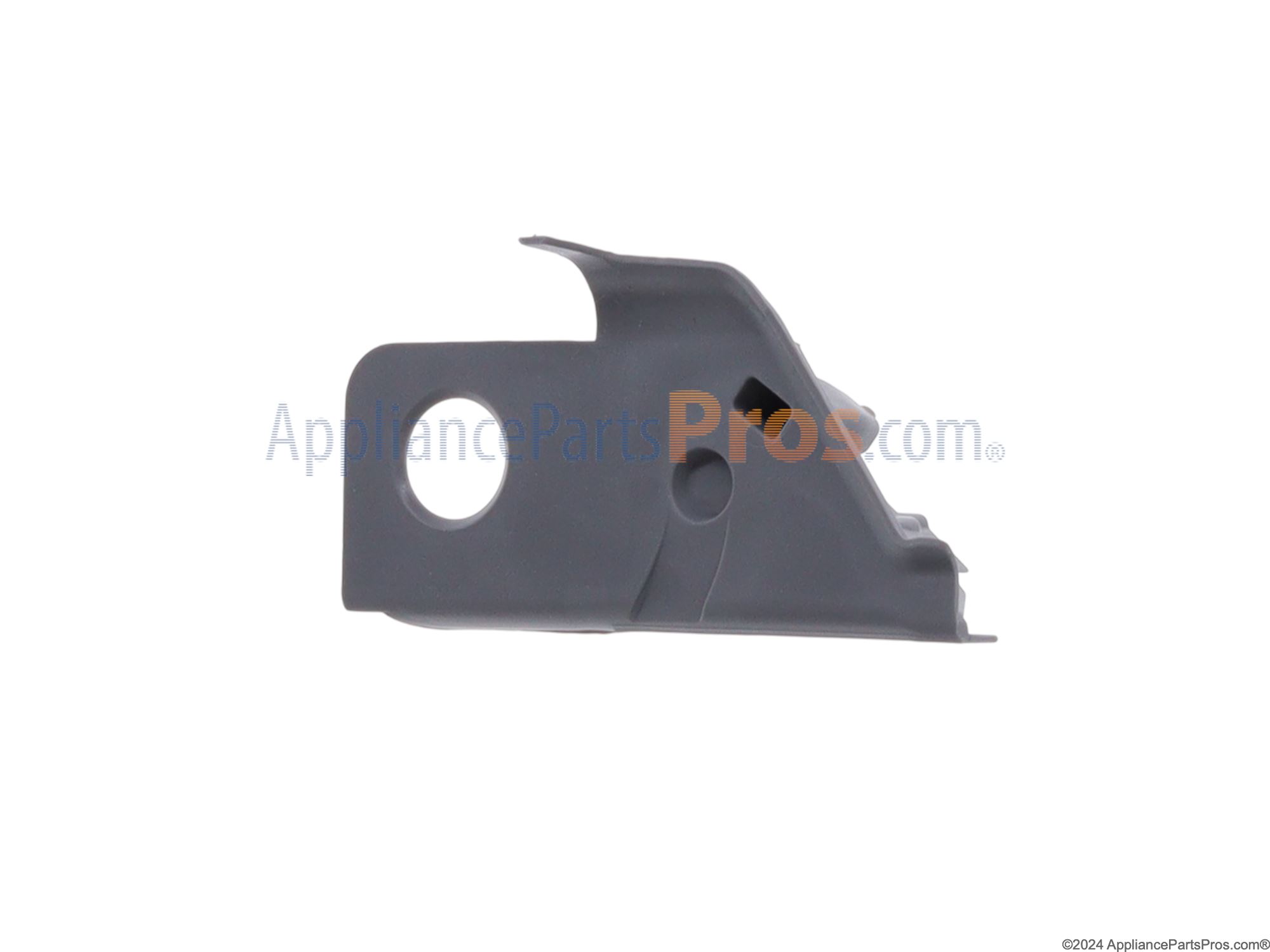

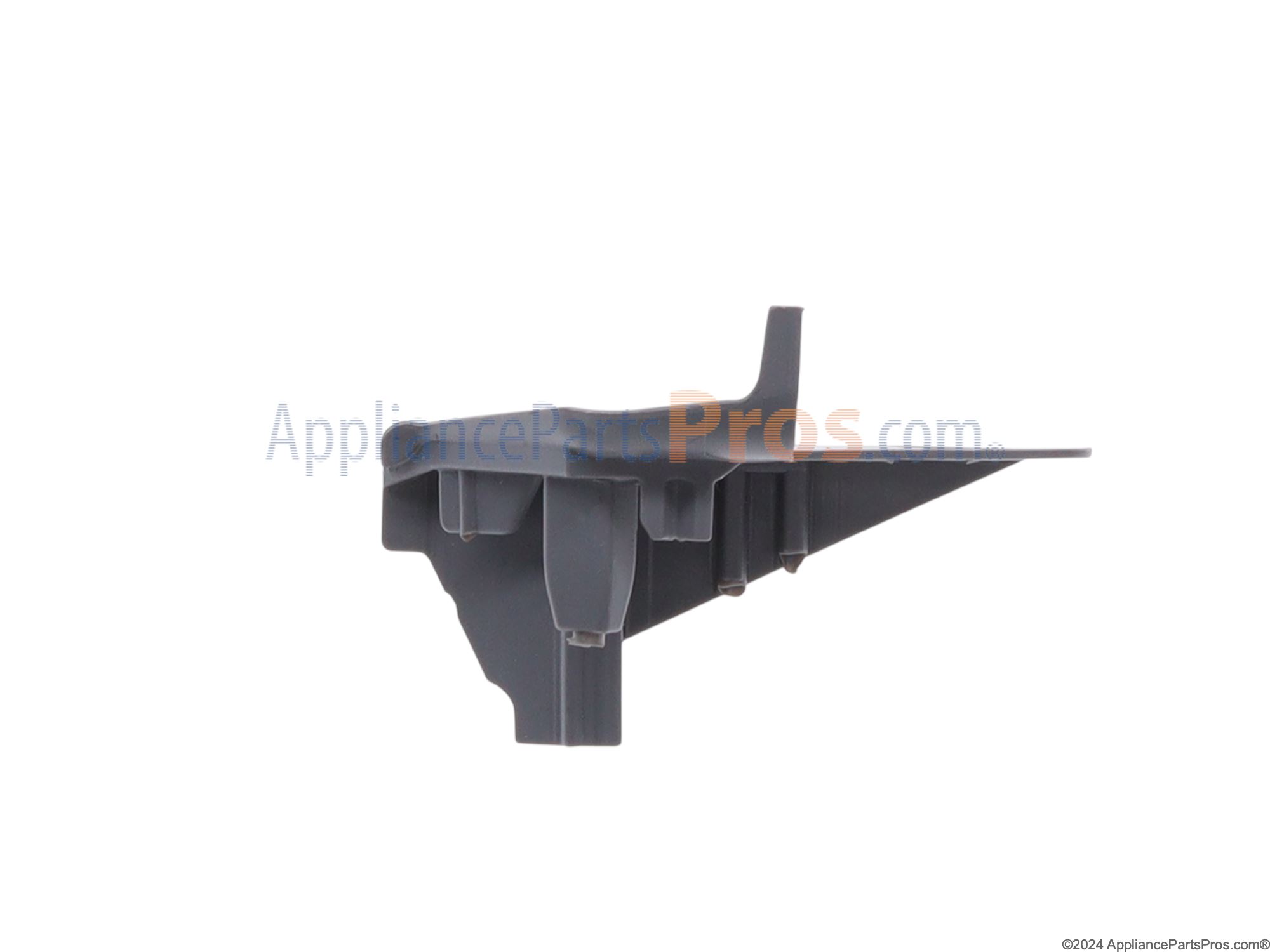

William A Mountain City , TN June 29, 2020 Appliance: Bosch Dishwasher SHXM78W55N/01 One of the seals end brackets had worn through The repair included pulling the unit from under the counter,removing the door, removing the old seal and replacing with the new seal which fit perfectly. This repair was made much easier by viewing the video that was available. Read More... 3 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Screwdrivers
Stephen T Colorado Spgs , CO October 05, 2025 Appliance: Bosch Dishwasher SHPM78Z54N/01 Seal failure in bosch dishwasher Replaced seal Read More... Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Nut Drivers, Pliers, Screwdrivers
