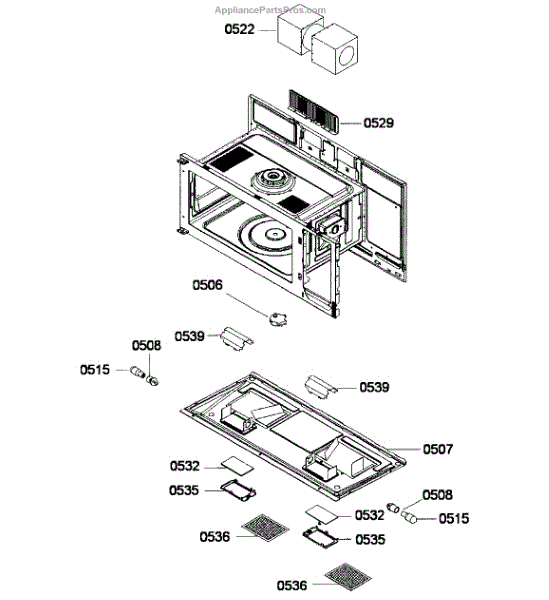

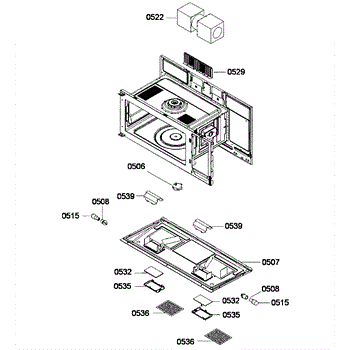

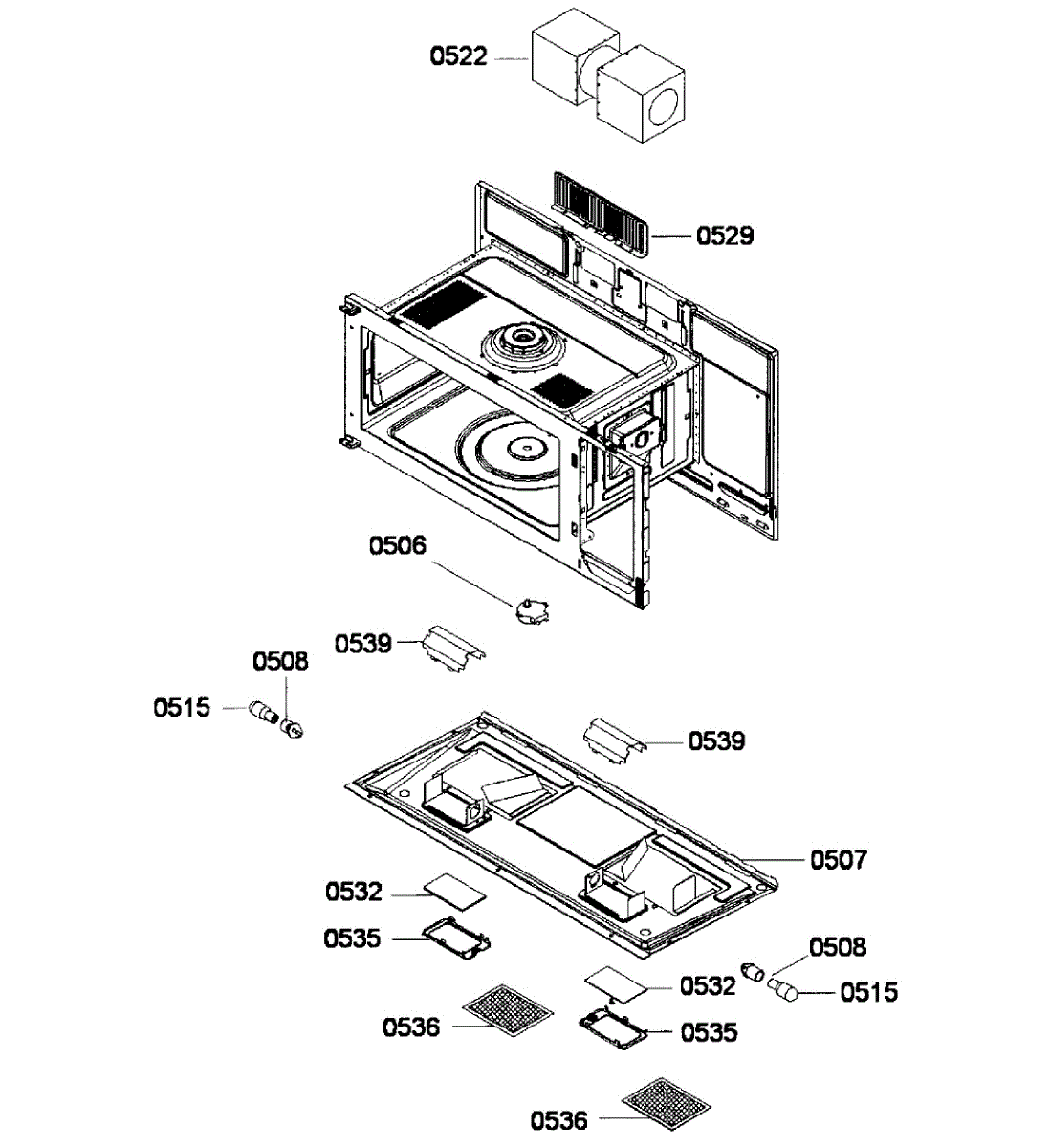

Parts for Bosch HMV5051U/01: Bottom Assembly Parts

Parts for Bosch HMV5051U/01: Bottom Assembly Parts

Location on Diagram
Part Description
Price & Availability
506
Product photo
By: Bosch
Part Number: 00617213

A replacement circulation pump motor that restores water movement in the dishwasher's wash system for proper cleaning and rinsing. Installs in the pump assembly to replace a worn or failed motor and stop noisy or non-operating pumps. What it does:

  • Drives the dishwasher's water circulation/pump assembly so wash arms receive proper water flow.
  • Common symptom: little or no water spray during the wash cycle or poor cleaning performance.
  • Common symptom: loud grinding, humming, or the pump not starting when the cycle runs.
  • Works as the rotating motor portion of the pump; requires correct pump housing and seals for a leak-free installation.
What's included:
  • One motor
Install notes:
  • Disconnect power and turn off water supply before beginning repair.
  • Inspect pump housing, gaskets, and impeller during replacement; replace worn seals to prevent leaks.
  • Handle the motor and electrical connections carefully; ensure connectors are fully seated and secured.
  • After installation, restore power and run a short cycle to check for proper operation and leaks.

More
$87.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
507
By: Bosch
Part Number: 00770999
$61.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
508
Product photo
5.0 (1)
By: Bosch
Part Number: 00617214

Holds the bulb and provides electrical connection for interior lighting. Replace if cracked, heat-damaged, or loose causing lights to fail. Confirm fit.

More
$9.61

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
515
Product photo
5.0 (8)
By: Bosch
Part Number: 00617215

This replacement lamp restores proper lighting in your appliance, making it easier to see contents and monitor cycles. Install it when the original bulb burns out or flickers to bring clear, reliable illumination back.

  • Provides illumination when the appliance's light circuit or door switch activates
  • Common symptoms: no light, intermittent or flickering light, or a visibly failed bulb
  • Heat, age, vibration, or moisture can cause the lamp to fail
  • A new lamp typically resolves lighting issues if the socket and switch are sound
  • Disconnect power at the breaker or unplug before servicing
  • Allow the area to cool fully before opening the light cover
  • Handle the glass with clean gloves or a cloth to avoid skin oils
  • Install the exact replacement specified for your model; do not exceed the manufacturer's rating

More
$11.54

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
522
By: Bosch
Part Number: 00676129
$161.71

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
529
By: Bosch
Part Number: 00676128

This is a metal or plastic grid panel that serves as a protective grille or rack inside the appliance. It helps with airflow, filtration, or acts as a structural support within the unit. Replace this grid if it is cracked, warped, or has broken sections that affect proper operation.

More
$6.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
532
By: Bosch
Part Number: 00648877
$5.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
535
By: Bosch
Part Number: 00648878

Replacement cover panel for your microwave. Installs on the exterior or interior housing. Order a new one if your original is cracked, broken, or missing.

More
$11.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
536
Product photo
5.0 (1)
By: Bosch
Part Number: 00651858

This grease filter traps airborne grease and cooking particles before they reach the ventilation blower and ductwork, helping maintain airflow and keep kitchen surfaces cleaner. Replace a saturated or damaged filter to restore effective venting.

  • Captures grease and particulates from cooking vapors to protect the fan and internal components
  • Helps maintain proper airflow and reduce lingering smoke or odors
  • A clogged or damaged filter can cause weak venting, increased fan noise, visible grease buildup, or a filter-clean reminder to stay on
  • Replace when mesh is torn, frame is bent, or the filter no longer stays secured
What's included: 1 grease filter Install notes:
  • Disconnect power to the ventilation unit before servicing
  • Allow the hood to cool; support the filter while releasing the latch or tabs
  • Note orientation; insert the new filter and latch securely
  • Reset the filter reminder per the user manual after replacement

More
$57.39

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
539
By: Bosch
Part Number: 00648880
$4.18

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
