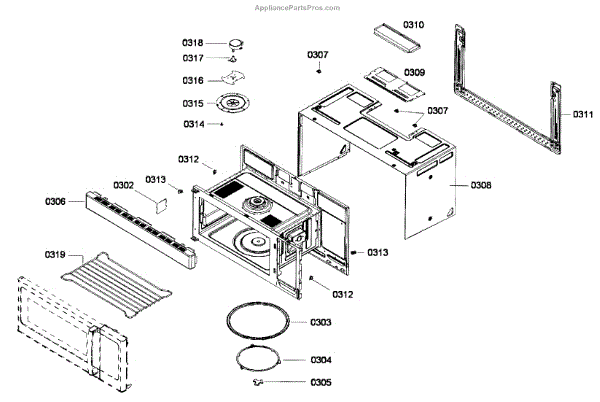

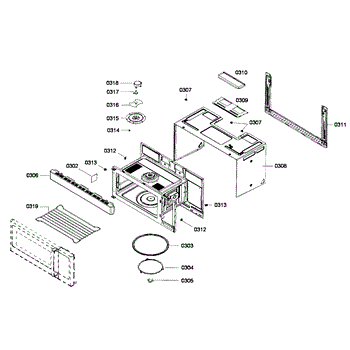

Parts for Bosch HMV5051U/01: Cabinet 1 Parts

This replacement cover restores the protective housing that secures and shields internal components on compatible Bosch appliances. It helps keep parts in place and prevents debris from entering sensitive areas. What it does:

• Replaces a cracked, broken, or missing cover that exposes internal components
• Protects wiring and mechanisms from dirt and accidental contact
• Helps maintain proper part alignment and prevents rattling or loose fit
• Useful when cabinet damage or wear prevents the original cover from seating correctly

• One replacement cover

• Disconnect power to the appliance before service to avoid shock or injury
• Remove any fasteners or clips holding the old cover; retain hardware if not replacing
• Align the new cover carefully and secure with the original screws or clips

This is the glass turntable that sits inside the microwave cavity. Replacing a cracked, chipped, or missing tray restores a smooth, level surface and proper rotation so food heats more evenly and dishes stay stable while cooking.

• Provides a flat, heat-resistant surface that rotates during cooking for even heating
• Direct replacement when the original tray is broken, chipped, missing, or won't seat correctly
• Helps correct issues like wobbling, poor engagement, or uneven heating due to a damaged tray
• Seats on the turntable support and engages the drive coupler for smooth rotation

• Disconnect power before service and allow the oven cavity to cool
• Remove the old tray; clean the support ring and drive coupler of debris
• Align the center hub on the underside of the new tray with the coupler; ensure it sits flat and spins freely
• Test with a microwave-safe cup of water to confirm smooth rotation

This turntable support ring sits beneath the microwave glass tray and lets it rotate smoothly for more even heating. Replace a worn or warped ring to restore consistent tray movement and reduce scraping, binding, or wobble during operation. What it does:

• Supports the glass turntable so the drive system can rotate it smoothly
• Helps maintain steady rotation for more consistent cooking results
• Replace if the tray stalls or binds, wobbles, or makes scraping/grinding noises while turning
• Wear or deformation can cause intermittent or noisy rotation

• 1 turntable support ring

• Disconnect power to the microwave before servicing
• Remove the glass tray; lift out the old ring and clean the track on the cavity floor
• Set the new ring flat in the track and reinstall the tray on the drive coupler
• Test rotation with a microwave-safe cup of water; never open the cabinet—microwaves contain high voltage

This drive coupling connects the washer motor to the gearcase to transfer torque for agitation and spin. Replacing a worn coupling restores proper drum movement and helps eliminate slipping or grinding during use. What it does:

• Transfers rotational motion from the motor to the transmission/gearcase so the drum can agitate and spin
• Failsafe against motor/transmission shock by using a replaceable rubber/nylon interface
• Common symptom: washer won't spin or agitate even though motor runs
• Other symptoms: loud grinding or clicking during spin, intermittent movement or slipping

• Disconnect power and water supply before beginning any repair
• Access typically requires removing the washer's front or rear access panels; follow OEM instructions for your model
• Inspect motor shaft and gearcase input for wear when replacing the coupling and replace any damaged components

The Vent Grille is an OEM replacement part for Bosch microwaves. It is located at the front of the microwave and serves the purpose of ventilating air out of the appliance. The grille ensures that the microwave operates at an optimal temperature, preventing overheating and promoting efficiency.

Symptoms of a bad Vent Grille include:

• Blocked or restricted airflow
• The microwave overheating
• Visible damage or warping to the grille
• Accumulation of dust or debris affecting ventilation

The common causes for a malfunctioning Vent Grille often involve physical damage, clogging due to accumulated debris, or wear and tear from regular use. When the vent grille is compromised, it can lead to inadequate ventilation, impacting the microwave's performance and lifespan.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Keep your appliance protected and operating as designed with this replacement cover. It shields the related assembly from debris and accidental contact, restoring a secure enclosure when the original cover is cracked, warped, or missing.

• Protects internal components from dust, moisture, and accidental contact
• Maintains proper enclosure and alignment of the related assembly
• Helps reduce noise or vibration when properly secured
• Replaces a damaged, loose, or missing cover to restore safe operation

• Disconnect power and, if applicable, turn off the water supply before servicing
• Retain and reuse original screws/clips unless new hardware is provided for your model
• Transfer any seals or gaskets from the old cover if required and in good condition
• Ensure all tabs/fasteners engage; do not overtighten

This replacement support bracket restores secure mounting for the affected appliance component, helping stop movement and reduce noise. A direct-fit part that brings back stable alignment and reliable operation. What it does:

• Provides structural support to the associated component to prevent sagging or shifting
• Restores proper alignment to reduce rubbing, vibration, or rattling noises
• Replaces cracked, bent, or worn supports that can compromise component seating
• Helps ensure connected parts operate smoothly by holding them in the correct position

• Disconnect power and, if applicable, water supply before starting any repair
• Use basic hand tools; follow the schematic for removal and reassembly
• Inspect adjacent fasteners and mounting points; replace any damaged hardware for a secure fit

Replacement support mounting bracket that secures internal components and restores proper alignment in your appliance. Helps reduce vibration and rattling caused by loose or worn mounting points for smoother, quieter operation. What it does:

• Provides a stable mounting point to hold internal parts in position
• Reduces vibration and rattling that can occur from loose or broken supports
• Restores proper alignment to connected components for reliable operation
• Prevents further wear or damage caused by shifting parts

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Use basic hand tools; handle brackets and fasteners carefully to avoid stripping or damage
• Keep track of any screws or clips removed and reinstall them in the original locations

This rivet is a small fastener used to permanently join appliance panels and components for a secure fit and reliable alignment. It restores proper assembly and helps stop movement or rattling where a broken or missing rivet caused looseness. What it does

• Secures two pieces of metal, trim, or internal components to maintain alignment and structural stability
• Keeps panels and covers from separating or shifting during use
• Stops rattling, vibration noise, and loose parts caused by a missing or damaged fastener
• Provides a permanent fastening solution where screws or clips are not suitable

• One rivet

• Use the correct rivet tool or installation method for the rivet type and size
• Disconnect power and follow safety procedures before removing panels or working inside the appliance
• Replace only with the exact rivet style and size to ensure proper fit and function

This cover sheet is the replacement inner panel that protects internal components and finishes the appliance's interior. It restores a clean, secure barrier between the cabinet and working parts. What it does:

• Replaces a damaged, dented, or corroded inner panel to prevent exposure of wiring and mechanisms
• Helps block moisture and food debris from reaching internal components
• Restores a smooth surface for proper fit and sealing of adjacent panels
• Useful when appearance or accessory mounting points are compromised

• Disconnect power and water supply before beginning any repair
• Remove surrounding trim and hardware to access the old cover sheet; keep screws and clips for reuse if undamaged
• Handle sheet metal carefully to avoid sharp edges; wear gloves and eye protection
• Replace with OEM components for best fit

This drive shaft is the rotating spindle that links the dishwasher's motor to the lower pump/impeller assembly, restoring powered water circulation for normal wash performance. It's a direct-fit replacement designed to match OEM form and fit. What it does:

• Transmits motor rotation to the pump/impeller so water is circulated during the wash cycle
• Restores normal spray and drain function when a worn or broken shaft prevents pump operation
• Helps eliminate grinding, wobbling, or no-water-flow symptoms caused by a damaged drive connection
• Works with the dishwasher's lower sump/pump assembly to maintain sealed, aligned rotation

• One drive shaft

• Disconnect power and water before starting any repair; follow all safety precautions
• Access typically requires removal of the dishwasher base/sump and disassembly of the pump housing
• Inspect surrounding seals, bearings, and impeller for wear and replace as needed

This fan motor circulates air inside the appliance to support cooling and ventilation, restoring proper airflow and helping prevent overheating. It replaces a worn or failed motor to reduce noise and restore normal operation. What it does:

• Spins the blower wheel to move air for cooling, ventilation or drying functions
• Stops unusual noises caused by worn bearings or imbalanced operation
• Restores airflow when the appliance shows reduced or no air movement
• Helps prevent overheating by maintaining proper internal ventilation

• Disconnect power before starting any repair to avoid electrical shock
• Handle the motor and wiring harness carefully to avoid damage
• Basic hand tools may be required; follow OEM disassembly steps for your model

This wire oven rack provides a stable, heat-safe surface for cookware and bakeware, restoring proper support and airflow inside the oven. Replace a bent or missing grid to prevent dishes from tipping and to help ensure even cooking. What it does:

• Supports baking pans, roasting pans and cookware while allowing heat circulation
• Restores correct clearance and airflow for even baking and roasting
• Replaces bent, warped or broken wire rack surfaces that cause unstable cookware
• Simple, passive component — no electrical connections or controls

• One wire oven grid

• Allow the oven to cool completely before removing or installing the rack
• Slide into the designated rack guides until fully seated; no tools typically required
• Wear gloves to protect hands from sharp edges on damaged racks
• Do not modify the grid; use the exact part number to confirm fit for your oven
