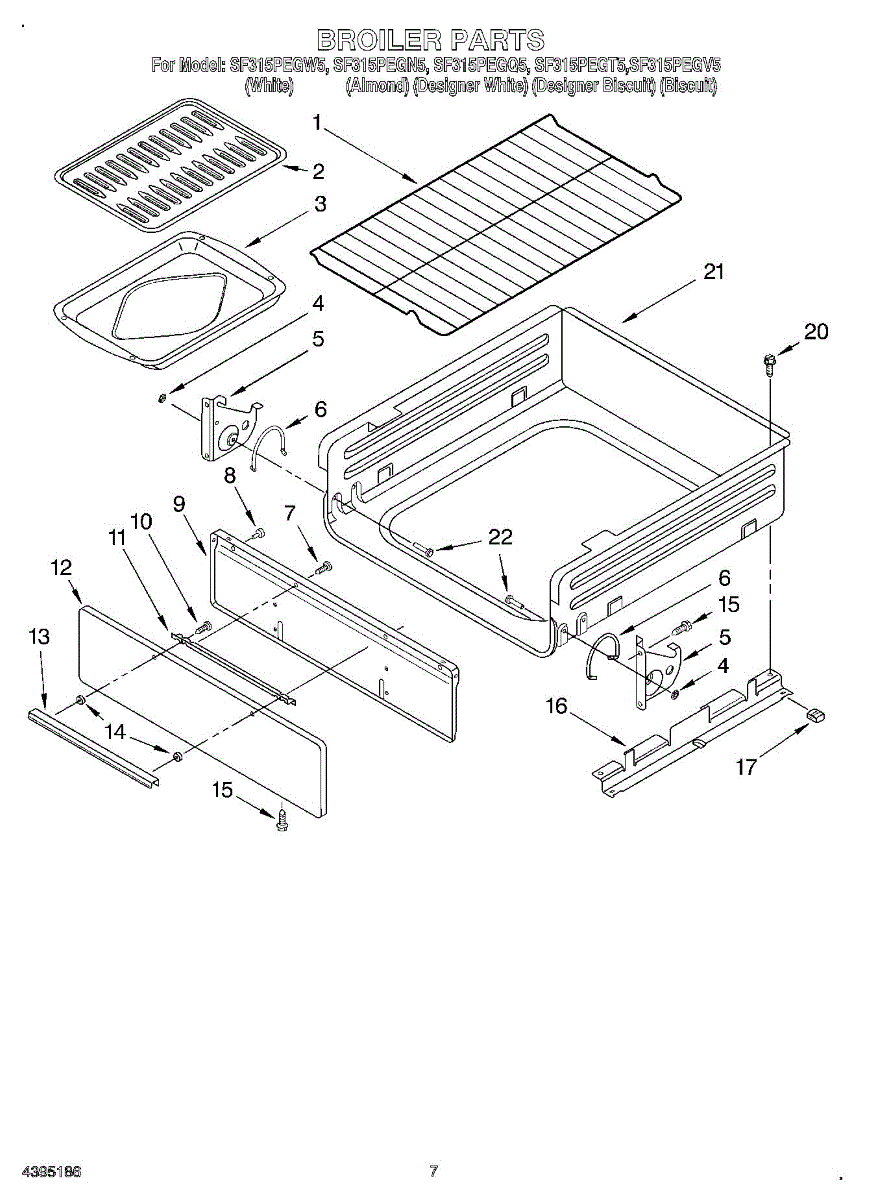

Parts for Whirlpool SF315PEGQ5: 05 - Broiler Parts

Replace your cracked, warped, or missing oven rack. This sturdy metal rack provides a reliable cooking surface inside your range oven cavity.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Color: Black. For biscuit order 98008169. For white order WP98008544.

Color: White.

Color: White.

Color: White.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This broiler carriage glide supports and guides the under-oven broiler drawer so it slides smoothly and stays aligned. Replacing a worn glide restores easy operation and helps prevent binding, scraping, and the drawer jumping off its track. What it does:

• Supports and aligns the broiler drawer/carriage on its rails
• Provides a low-friction surface for smooth opening and closing
• Helps keep the drawer level to reduce racking or sagging
• Common symptoms: drawer hard to open/close, scraping/squeaking, binding, or popping off track

• Includes 1 broiler drawer/carriage glide

• Disconnect power and let the range cool completely before servicing
• Remove the broiler drawer to access the glides
• Note orientation; remove the worn glide (screws or tabs) and install the new glide securely
• Check both sides for smooth travel and alignment before reinstalling the drawer

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.
