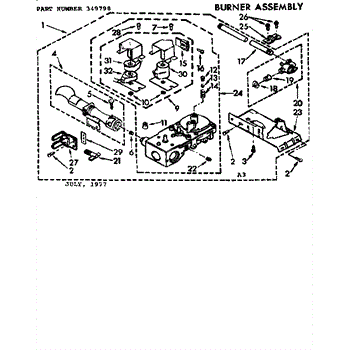

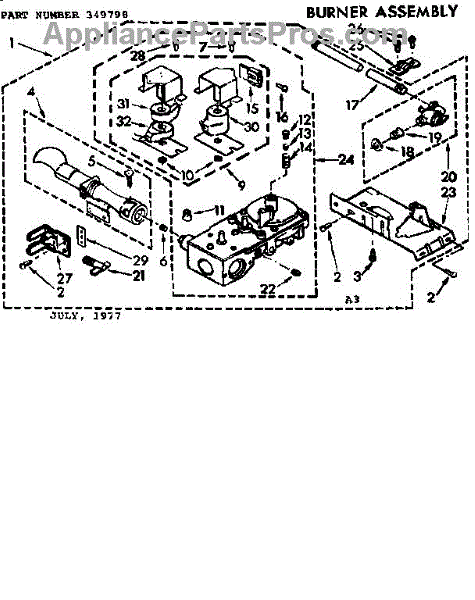

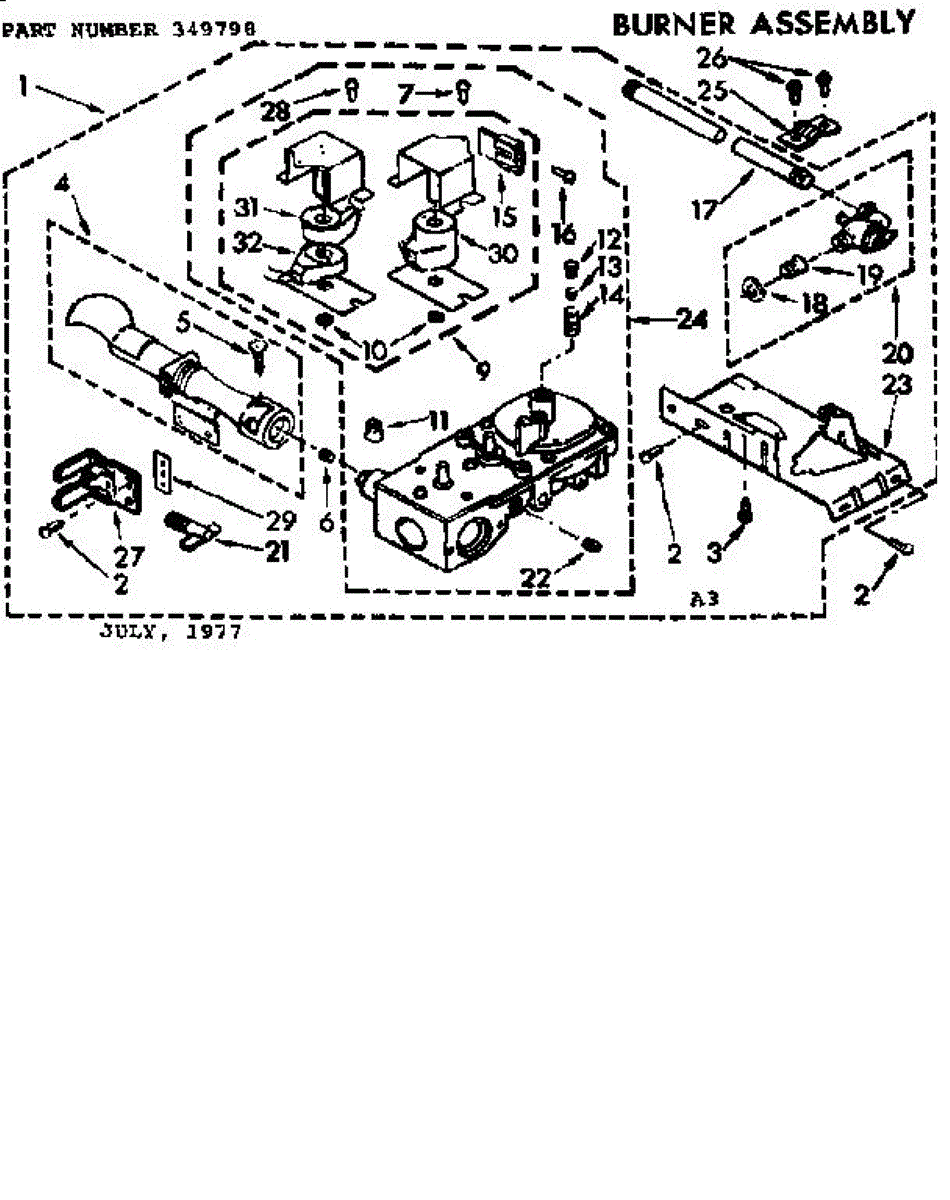

Parts for Kenmore 110.349798 (110349798, 110 349798): Burner Assembly Parts

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

This precision-drilled burner orifice is sized for Type 4 butane applications. It meters gas to the burner so flames ignite reliably and burn cleanly when the appliance is configured for butane per the manufacturer's specifications. What it does:

• Regulates gas flow to the burner head for proper flame size and shape
• Type 4 drilling intended for butane gas configurations specified by the manufacturer
• Replaces a missing or stripped orifice during service or gas-type conversion

• 1 burner orifice (Type 4, butane)

• Shut off gas supply and power; allow the appliance to cool before service
• Access the orifice at the burner base/manifold; remove the original with the correct wrench or socket
• Start threads by hand; tighten snugly—avoid overtightening or cross-threading
• After reassembly, leak-check with soapy water and verify flame; gas conversions should be performed following OEM instructions and local codes

Screw: 8-16 x 3/8 inch.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation
