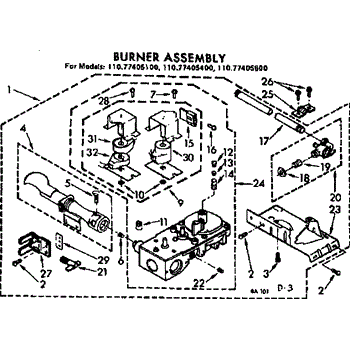

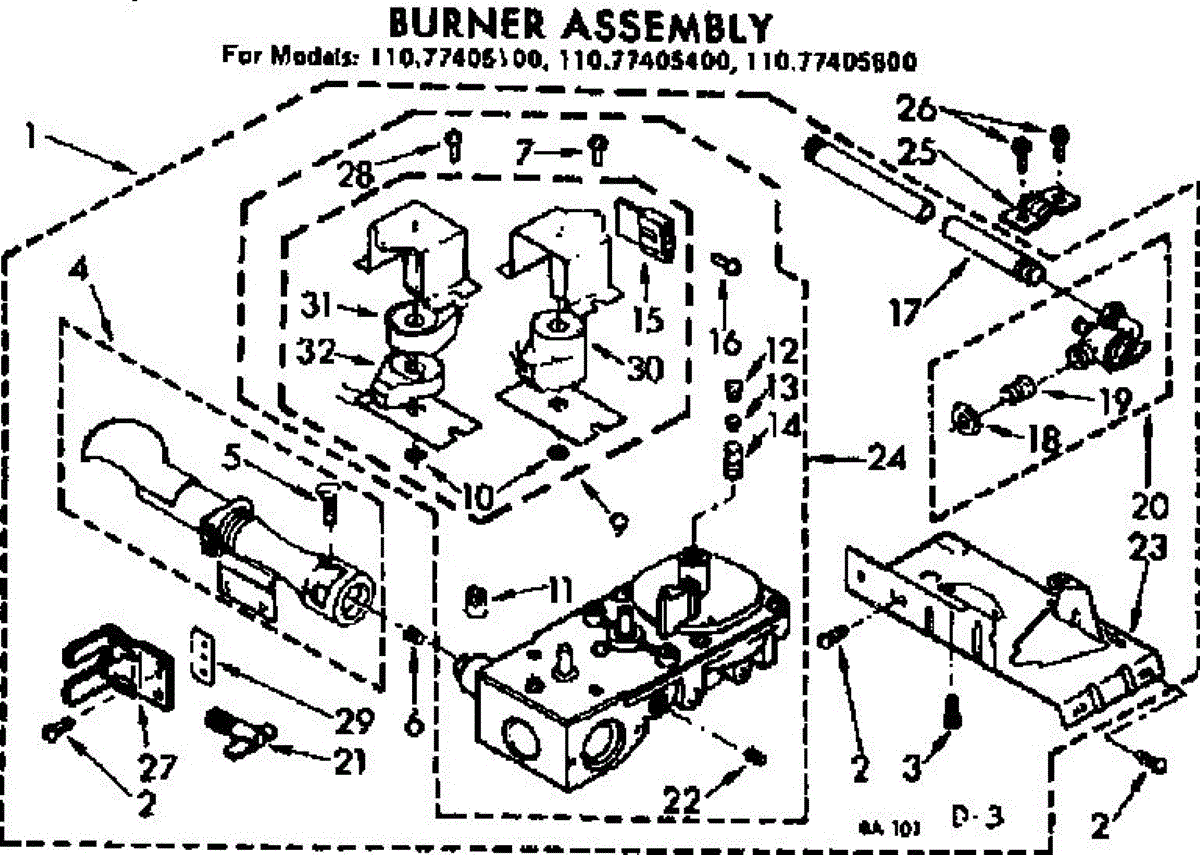

Parts for Kenmore 110.77405600 (11077405600, 110 77405600): Burner Assembly Parts

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

Specs: 10-16 x 1/2 inch.

Screw: 8-16 x 3/8 inch.

This orifice is the small gas passage that controls burner fuel flow to create a proper flame for cooking. It restores correct gas metering so the burner lights and maintains a steady flame. What it does:

• Regulates gas flow to the burner for a consistent, controllable flame
• Helps fix symptoms like weak or uneven flames, burners that won't stay lit, or delayed ignition
• Fits into the burner assembly where the gas line meets the burner tube
• Works with the appliance's existing valve and burner components to maintain safe operation

• One burner orifice

• Turn off the gas supply and unplug the appliance before servicing
• Inspect for debris or damage and replace if the orifice or seat is corroded or clogged
• Tighten to the manufacturer's torque spec; do not overtighten or force into the seat

This precision-drilled burner orifice is sized for Type 4 butane applications. It meters gas to the burner so flames ignite reliably and burn cleanly when the appliance is configured for butane per the manufacturer's specifications. What it does:

• Regulates gas flow to the burner head for proper flame size and shape
• Type 4 drilling intended for butane gas configurations specified by the manufacturer
• Replaces a missing or stripped orifice during service or gas-type conversion

• 1 burner orifice (Type 4, butane)

• Shut off gas supply and power; allow the appliance to cool before service
• Access the orifice at the burner base/manifold; remove the original with the correct wrench or socket
• Start threads by hand; tighten snugly—avoid overtightening or cross-threading
• After reassembly, leak-check with soapy water and verify flame; gas conversions should be performed following OEM instructions and local codes

The Natural Gas Orifice is an OEM replacement part for Whirlpool gas dryers. Installed within the dryer burner assembly, it regulates gas fuel flow into the burner.

Common causes relate to natural deposits obstructing the small gas port, as well wear inducing intermittent ignition of flames during many years of laundering cycles.

Symptoms of a failed orifice include:

• Slow or inefficient drying times and extended cycles
• Uneven or incomplete drying of loads
• Changes in flame appearance like higher than normal yellow tips

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Screw: 8-16 x 3/8 inch.

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

For mating plug use 691707.

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This pipe plug seals an unused or service opening in a household appliance's plumbing to stop leaks and prevent debris entry. It restores a watertight closure so the appliance can operate safely and without water loss. What it does:

• Plugs open pipe or hose fittings to prevent water leaks
• Helps maintain proper water flow by sealing unused ports
• Keeps debris and contaminants out of the plumbing system
• Can stop intermittent drips originating from service openings

• One pipe plug

• Turn off water supply and power to the appliance before starting work
• Hand-start threads to avoid cross-threading; tighten only to OEM torque or finger-tight plus a quarter-turn if unspecified
• If the original used sealant or gasket, replace with the same type per OEM instructions

Complete burner assembly with gas valve, coils and igniter. Setup for natural gas.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
