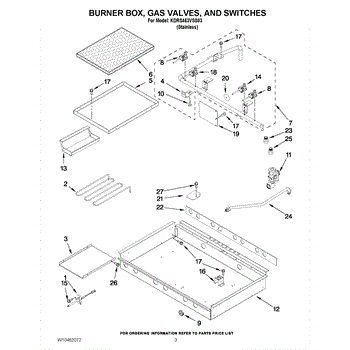

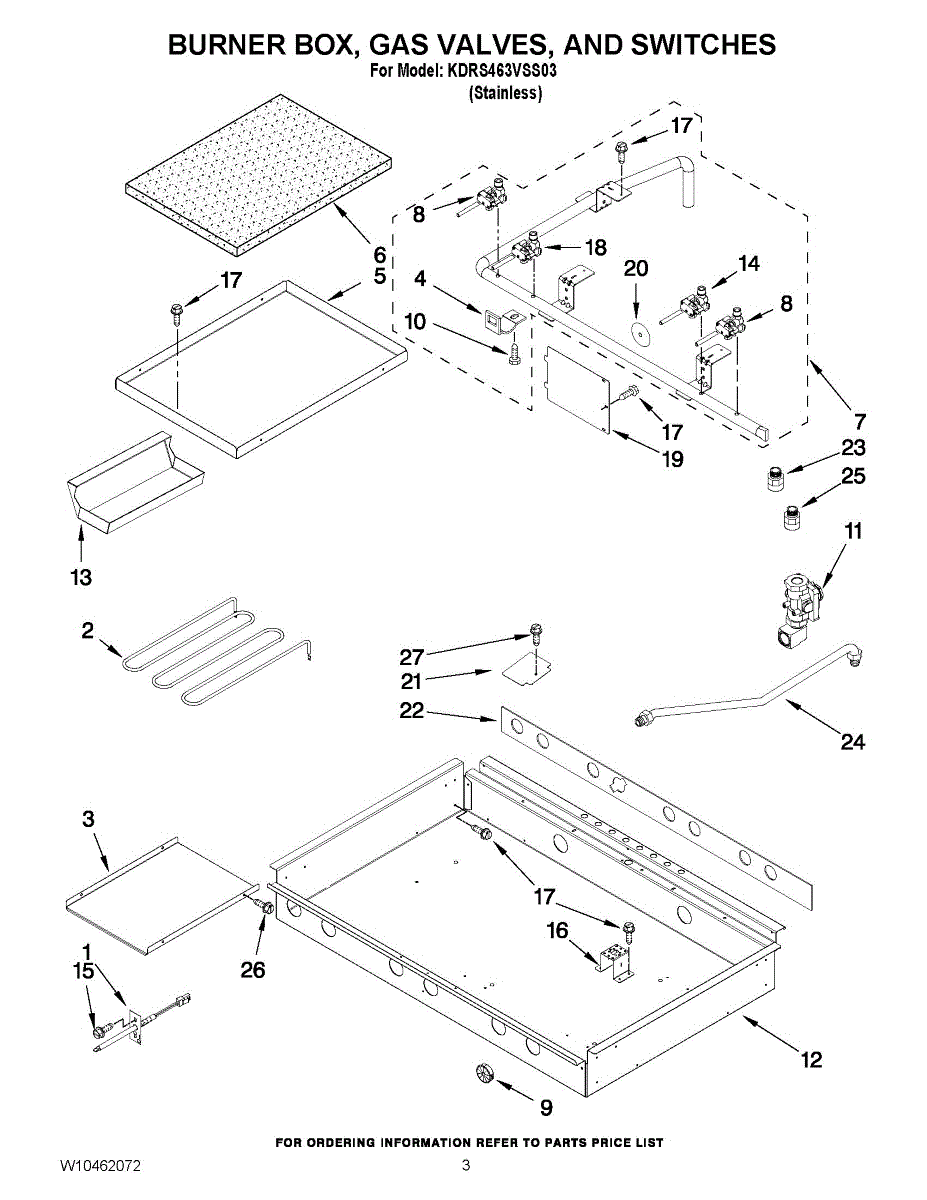

Parts for Kitchenaid KDRS463VSS03: 02 - Burner Box, Gas Valves, And Switches Parts

Bottom guard shield for gas cooktops and ranges. Protects internal components underneath the cooking surface. Replace if cracked, damaged, or missing.

Insulation tray installs beneath gas cooktop burners to dampen sound and protect internal components. Replace if cracked, worn, or missing for proper fit.

Insulation pad that installs beneath the cooktop surface to reduce heat transfer and dampen sound. Replace if torn, compressed, or missing.

This manifold routes water from the household supply to the refrigerator dispenser and icemaker, restoring reliable water flow and dispensing. It replaces a worn or cracked supply manifold to stop leaks and intermittent or no-water dispenser operation. What it does:

• Directs and distributes water to the dispenser and icemaker assemblies.
• Replaces cracked or damaged manifold sections that cause leaks.
• Helps restore steady water flow when dispenser output is weak or intermittent.
• Works with the refrigerator's water valve and tubing connections.

• Turn off power and shut off the refrigerator water supply before starting.
• Inspect and replace any worn tubing, seals, or mounting hardware as needed.
• Use basic hand tools; avoid overtightening fittings to prevent damage.

If your gas burner won't light or flame is weak, this burner valve controls gas flow to restore proper ignition and flame control. Direct replacement part.

Gas pressure regulator for ranges. Mounts to the gas supply line to control fuel pressure. Replace if cracked, damaged, or leaking gas.

This replacement burner box is the structural housing that holds a gas range's burners and related components, restoring safe alignment and containment for proper burner operation and heat distribution. What it does

• Replaces a damaged or corroded housing that holds the surface or top burners
• Restores proper burner alignment so flames and heat are directed correctly
• Helps stop gas or flame from contacting surrounding components when intact
• Addresses symptoms like visible box damage, uneven flames, or burner instability

• One replacement burner box (single unit)

• Turn off gas and electricity to the appliance before beginning work
• Installation may require removing the cooktop or burner components and re-sealing gas fittings
• Inspect and replace gaskets, screws, or mounting hardware as needed

Replacement drip pan installs under range burners to catch spills, grease, and food debris. Replace if cracked, warped, rusted, or heavily stained.

Fix a simmer burner that won't light or only runs on high. This valve restores precise low-heat control and safe flame adjustment on your gas cooktop.

Fix burners that won't light or hold flame with this dual burner valve. Controls gas flow to two cooktop burners, stopping leaks and restoring heat control.

Replace the burner access cover on your gas range or cooktop. Installs over burner components to protect internal parts. Order a new one if cracked or damaged.

This 1/2" female adapter is a threaded plumbing connector that lets a 1/2" male water line or fitting join the appliance inlet safely and securely. It provides a simple, durable connection to restore proper water flow. What it does:

• Adapts a 1/2" male threaded water supply to the appliance's inlet fitting
• Restores a secure, leak-free connection when the original fitting is damaged or missing
• Commonly used where a reliable, compact threaded coupling is needed
• Can help stop drips or leaks caused by worn or corroded connectors

• One 1/2" female adapter

• Turn off the water supply and unplug the appliance before installing
• Use plumber's tape on threads for a reliable seal unless the OEM instructions specify otherwise
• Hand-start threads to avoid cross-threading, then tighten with an appropriate wrench; avoid over-tightening
• Check connections for leaks after restoring water and operation

Gas supply tube for ranges. Connects the gas line to burner components. Replace if damaged, cracked, or showing wear to maintain proper gas flow connections.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Size: 6-32 x 3/8 inch.

Gas tube connects burner valves to manifold on gas cooktops and ranges. Replace if cracked, corroded, or leaking to restore safe gas flow connection.

Gas tubing that routes fuel from the supply valve to the burners on your range or cooktop. Replace if cracked, kinked, or damaged to restore safe operation.

Gas tubing component for cooktop burner assemblies. Replaces cracked, damaged, or worn gas supply tubes. Essential structural part for safe gas flow.
