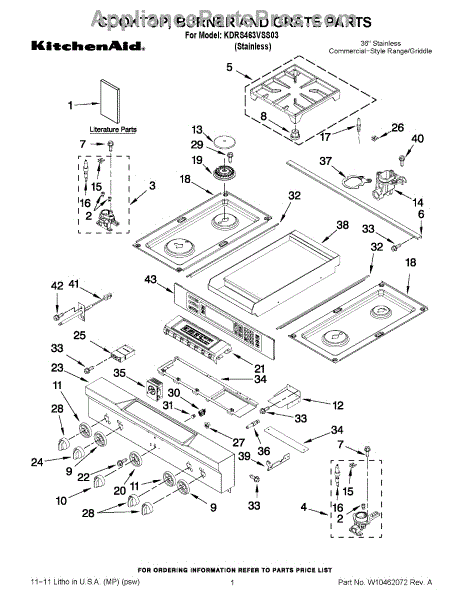

Parts for Kitchenaid KDRS463VSS03: 01 - Cooktop, Burner And Grate Parts

This gas burner orifice spud regulates gas flow to your range's burners. Replace if cracked, clogged, or damaged to restore proper burner operation.

Weak or uneven flame on your gas cooktop? This burner orifice meters gas flow to restore proper flame height and consistent heat. Quick 15-minute fix.

Directs gas flow into the burner for proper ignition and flame control. Replace if cracked, clogged, or damaged to restore consistent gas flow.

Fixes weak or uneven flames caused by misaligned gas flow. This orifice holder assembly secures the burner orifice for proper gas delivery and ignition.

Replace your cooktop's holder bracket if the original is cracked, broken, or missing. This structural component secures internal parts in place.

Replace broken, cracked, or worn grates on your gas cooktop or range. This grate kit restores a sturdy, level surface to safely support pots and pans.

Decorative trim piece that frames the perimeter of your cooktop surface. Replace if cracked, chipped, discolored, or missing to restore appearance.

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

Rubber feet that attach to the bottom of cooktop grates. Replace when missing, worn, cracked, or damaged to restore stability and protect the cooktop surface.

Control knob bezel for gas ranges and cooktops. Decorative trim ring that surrounds the control knob. Replace if cracked, discolored, or missing.

Replace your range's control knob if it's cracked, broken, or missing. This knob installs on the control panel to adjust burner settings and oven temperature.

Replace a cracked or missing knob bezel on your range or gas cooktop. This decorative trim ring installs around the control knob for a finished look.

Switch mounting bracket secures control switches in place on your range. Replace if the original bracket is bent, broken, or missing to properly mount switches.

Burner cap sits on top of the burner head to shape the flame and protect from spills. Replace if cracked, chipped, or missing to restore appearance.

Black burner cap for the auxiliary (small) gas burner on your cooktop or range. Replace if cracked, chipped, or missing to restore proper flame shape.

Sits atop the burner head to shape flame and shield from spills. Replace if missing, chipped, or warped to restore proper flame pattern and appearance.

Holds the brass orifice that regulates gas flow in range burners. Replace if cracked, broken, or missing to secure the orifice properly.

Secures panels and components on your cooktop, preventing rattles and misalignment. Replace when parts become loose or clips break. Confirm fit with model number.

If your gas burner won't light or clicking but no spark, the spark electrode may be faulty. This part generates the spark to ignite gas burners.

If your gas cooktop burner won't light or clicks constantly, a worn electrode is often the cause. This igniter creates the spark to ignite gas reliably.

Replacement glass cooking surface for gas cooktops and ranges. Installs as the main top. Order when your original glass is cracked, chipped, or broken.

Fix uneven flames or poor simmering on your small burner with this auxiliary burner head. Restores proper flame shape and low-heat control. Simple DIY fix.

Burner head that distributes gas evenly across the burner. Replace if cracked, clogged, or corroded to restore proper flame distribution on your gas cooktop.

Distributes gas evenly through burner ports on gas cooktops and ranges. Replace if cracked, clogged, or worn to restore uniform flame distribution.

Fix unresponsive buttons or blank displays on your range. This user interface control board interprets keypad inputs and drives the display panel.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Replace your cracked, damaged, or worn range control console. This assembly provides the mounting surface for user controls and display components.

Control knob for gas ranges and cooktops. Installs on the front control panel. Replace if cracked, broken, loose, or missing for proper burner control.

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

Push-on control knob for range and cooktop. Replaces worn, cracked, or missing knobs. Restores secure grip and smooth control feel for temperature settings.

M4 x 0.7 metric screw secures trim, panels, and brackets on your range or cooktop. Replace if original fastener is missing, stripped, or damaged.

Replace your range indicator light bulb when it burns out or dims. Illuminates control panel buttons and settings. Verify fit with your model number.

Replace your range indicator light lens to restore visibility of burner status and control panel indicators. Fits select gas and dual fuel ranges.

Decorative trim panel for gas range cooktops. Replaces cracked, chipped, or worn trim pieces. Installs around burner area to restore clean appearance.

If your cooktop griddle won't heat properly or runs too hot, this temperature control switch regulates heat settings for even cooking performance.

Replace your range burner gasket to seal gaps and prevent gas leaks. Install when worn, cracked, or damaged to ensure safe operation. Verify fit with your model.

This is a griddle module designed to mount on the cooktop surface of a range. It provides controlled heat distribution for the built-in griddle accessory. Replace this module if your griddle is not heating evenly, fails to reach proper temperature, or does not turn on at all.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

If your range buttons aren't responding or the display is hard to read, this membrane switch touch pad restores full control. Moderate DIY repair.
