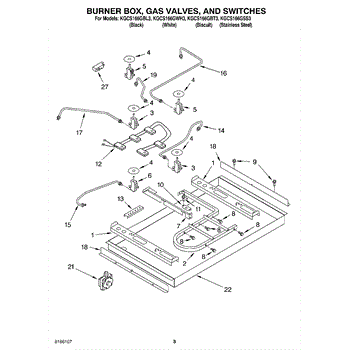

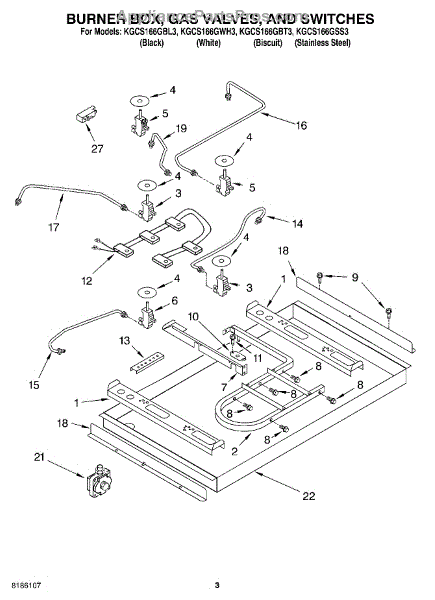

Parts for Kitchenaid KGCS166GSS3: 02 - Burner Box, Gas Valves, And Switches Parts

Size: Small. Front gas burner valve.

Gas valve shaft seal.

Size: Large. Rear gas burner valve.

Location: Left front.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

Location: Right front. Gas valve tubing.

Location: Left front. Gas valve tubing.

Location: Right rear. Gas valve tubing.

Location: Left rear. Gas valve tubing.

Location: Center.

Size: 8-32 x 2 1/2 inch.

Size: 15 inches long.

Size: 28 inches long.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

Includes 7 spuds.

This spark module supplies the high-voltage pulses that ignite the surface burners on compatible gas cooktops/ranges. Replacing a failing module restores consistent burner spark and reliable lighting when you turn the knobs.

• Distributes ignition voltage to multiple burners; coordinates spark when a burner is turned on
• Common failure symptoms: no spark on any or multiple burners, intermittent clicking, or burners that won't ignite despite gas flow
• Click continuously if internal circuitry fails or senses a short in the ignition system

• Disconnect power and shut off gas before servicing; verify no residual voltage
• Label and transfer each spark wire and connector one at a time to maintain correct routing
• Mount securely and avoid pinching or stretching ignition leads
• If burners still won't spark after replacement, inspect electrode wires, switches, and grounds
