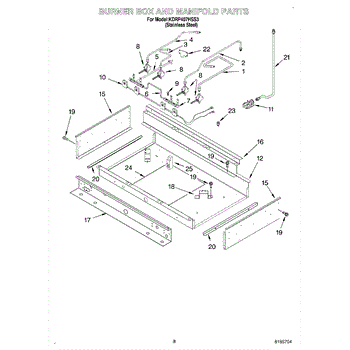

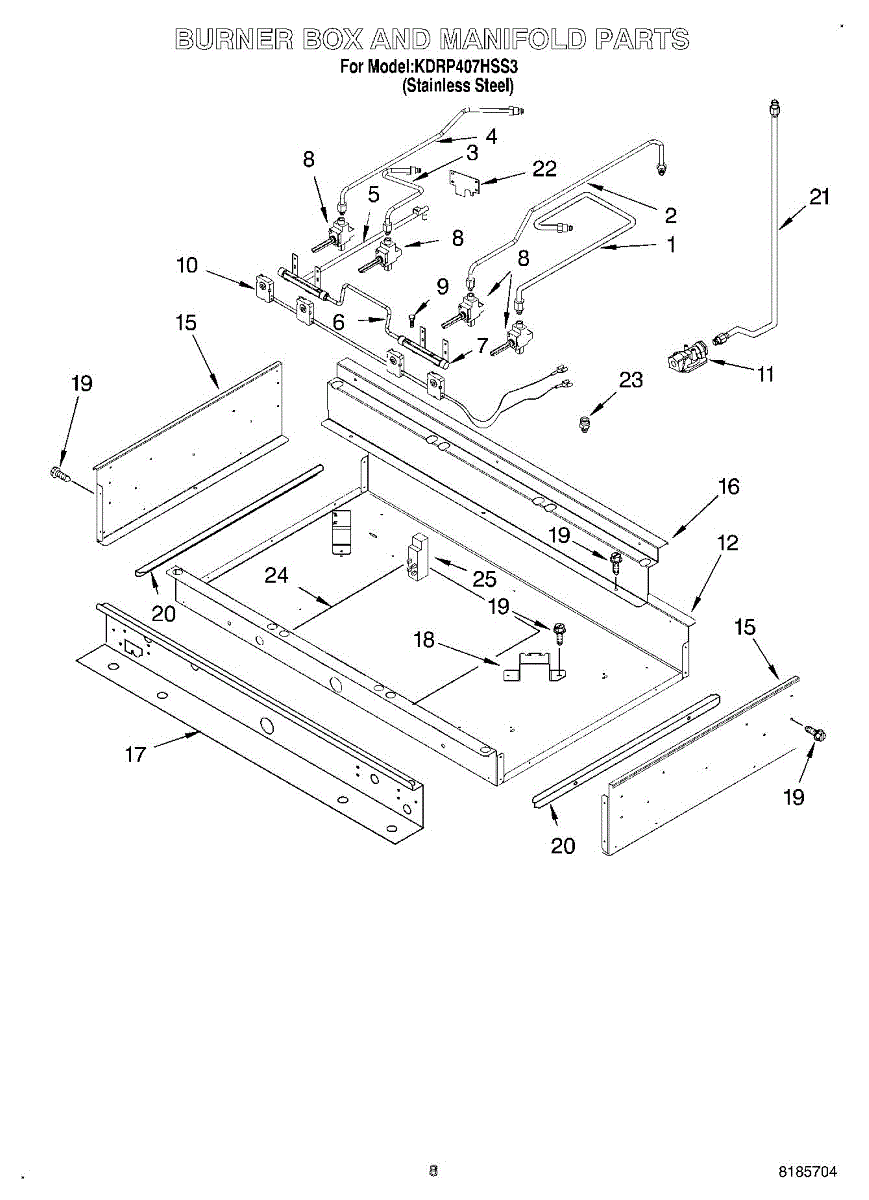

Parts for Kitchenaid KDRP407HSS3: 07 - Burner Box And Manifold Parts

Location: Left front.

Gas valve shaft seal.

This gas pressure regulator stabilizes incoming supply to your range or oven, delivering consistent burner flames. Replacing a failed regulator can restore proper heat output and reliable ignition across surface, bake, and broil burners.

• Regulates household gas supply to the appliance manifold for stable burner operation
• Helps maintain consistent flame height and heat in the oven and on the cooktop
• Protects downstream gas components from overpressure
• Failure symptoms include weak flames on all burners, oven or broiler not heating, or repeated clicking with no ignition

• Disconnect power, shut off gas supply, and allow the appliance to cool before servicing
• Observe flow-direction/orientation arrows and connect inlet/outlet ports correctly
• Apply an approved gas-rated thread sealant to threaded joints; avoid overtightening
• After installation, leak-test all connections with an approved solution—never use an open flame

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

Can be used for both sides.

This 1/2" female adapter is a threaded plumbing connector that lets a 1/2" male water line or fitting join the appliance inlet safely and securely. It provides a simple, durable connection to restore proper water flow. What it does:

• Adapts a 1/2" male threaded water supply to the appliance's inlet fitting
• Restores a secure, leak-free connection when the original fitting is damaged or missing
• Commonly used where a reliable, compact threaded coupling is needed
• Can help stop drips or leaks caused by worn or corroded connectors

• One 1/2" female adapter

• Turn off the water supply and unplug the appliance before installing
• Use plumber's tape on threads for a reliable seal unless the OEM instructions specify otherwise
• Hand-start threads to avoid cross-threading, then tighten with an appropriate wrench; avoid over-tightening
• Check connections for leaks after restoring water and operation

U-type clip

This spark module generates the high-voltage pulses that ignite your gas surface burners. Replacing a failed module restores consistent clicking and lighting so burners ignite quickly and reliably.

• Supplies timed high-voltage pulses to each surface igniter when a burner knob is turned
• Coordinates ignition for four burners
• Common symptoms: no spark on any burner, only some burners sparking, continuous clicking after flame lights, or intermittent/weak spark
• Helps resolve burners that only light with a match

• Disconnect power and shut off gas before servicing
• Access location varies by model
• Label and transfer wires one at a time to the new module; ensure the ground connection is secure
• Reinstall in the original position, route wires away from heat/sharp edges, and test all burners
