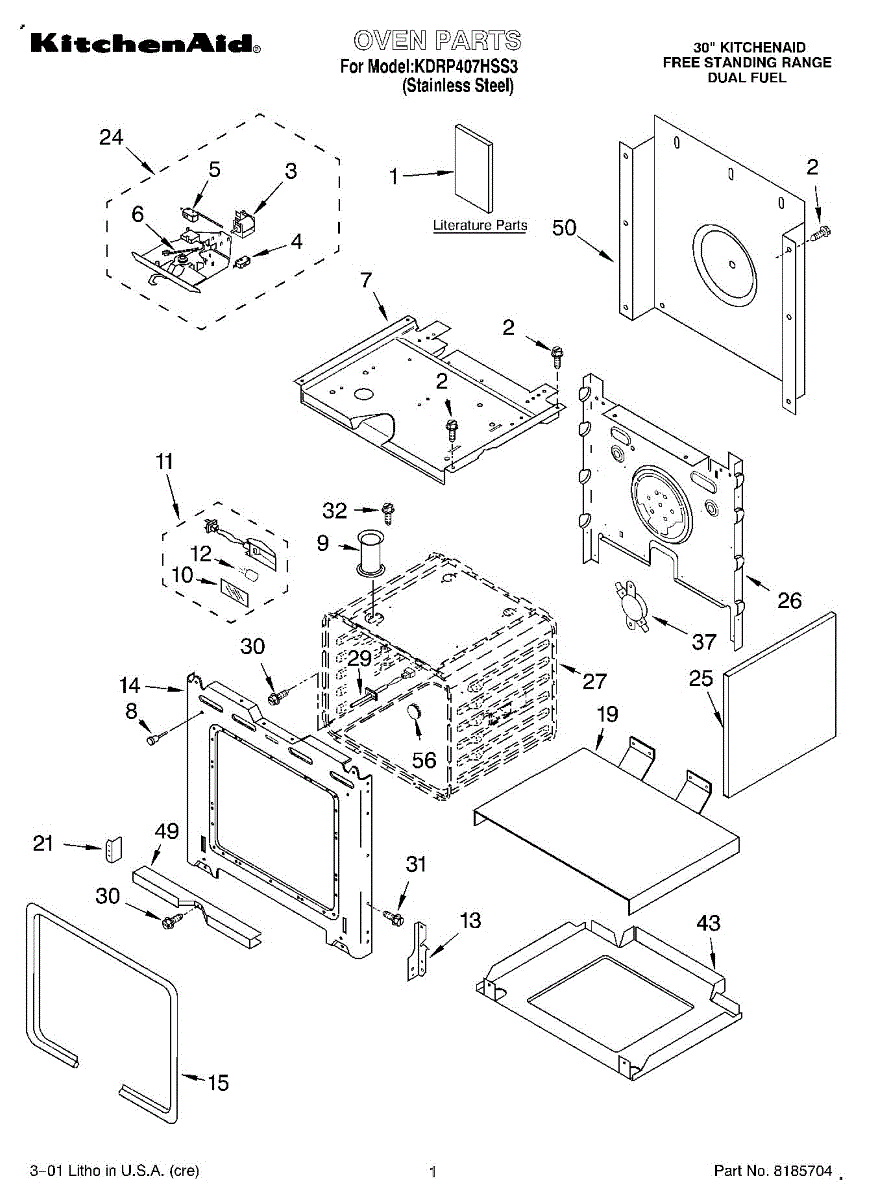

Parts for Kitchenaid KDRP407HSS3: 01 - Oven, Literature Parts

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Includes the two terminal solenoid, plunger and spring.

This mirco switch has normally closed contacts. This means when you press the button the contacts will be open.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

Vent tube for wall ovens and ranges. Directs hot air from the oven cavity through the exhaust opening. Replace if cracked, damaged, or missing.

Replacement mounting screw for electric wall ovens and ranges. Secures panels, brackets, and trim pieces. Replaces lost, stripped, or damaged screws.

Light assembly illuminates your oven cavity during cooking. Replace if light stays off, lens cracks, or wire connection breaks. Verify fit by model number.

Illuminates oven cavity for monitoring food while cooking. Replace when bulb burns out or oven interior is dim. Verify fit with your model number.

Left hand side. For the right hand side order 4455521.

Right hand side. For the left hand side order 4455520.

Seals your oven door to prevent heat loss and maintain cooking temperatures. Replace if worn, cracked, or heat escapes. Confirm fit with your model.

Includes latch lock body, door latch solenoid kit, two microswitches and the door latch spring.

Right and left hand side.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Size: 8-18 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven won't heat after self-clean cycle? A blown thermal fuse cuts power when temps spike. Easy DIY fix—disconnect power, test with multimeter, replace.

The Gasket Retainer is an OEM part for Whirlpool ovens. It secures the oven door gasket in place, ensuring a tight seal that prevents heat from escaping during cooking. This helps maintain consistent cooking temperatures and improves energy efficiency.

Causes of a bad oven gasket retainer can include wear and tear from repeated use, heat damage, or accidental impact that causes the retainer to break or become misshapen.

Symptoms of a bad oven gasket retainer include:

• The oven door gasket not staying in place
• Heat escaping from the oven, leading to uneven cooking
• Visible damage or deformation of the retainer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement back cover restores the appliance's rear housing to protect internal components from debris and accidental contact. It keeps wiring and controls enclosed and helps maintain proper airflow behind the unit. What it does:

• Covers and protects the motor, wiring, and control components at the rear of the appliance
• Replaces cracked, broken, or missing rear panels that expose internal parts
• Stops rattling or vibration caused by loose or damaged covers
• Helps prevent debris and pets from entering the cabinet area

• Disconnect power to the appliance before starting any repair
• Basic hand tools required; mounting screws may need removal and reinstallation
• Handle edges carefully—sheet metal can be sharp

Replaces worn, damaged, or missing foam insulation panel that lines the oven cabinet. Restores heat retention and temperature efficiency inside the unit.
