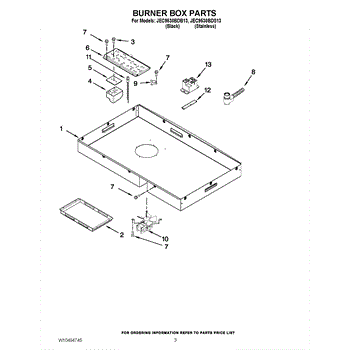

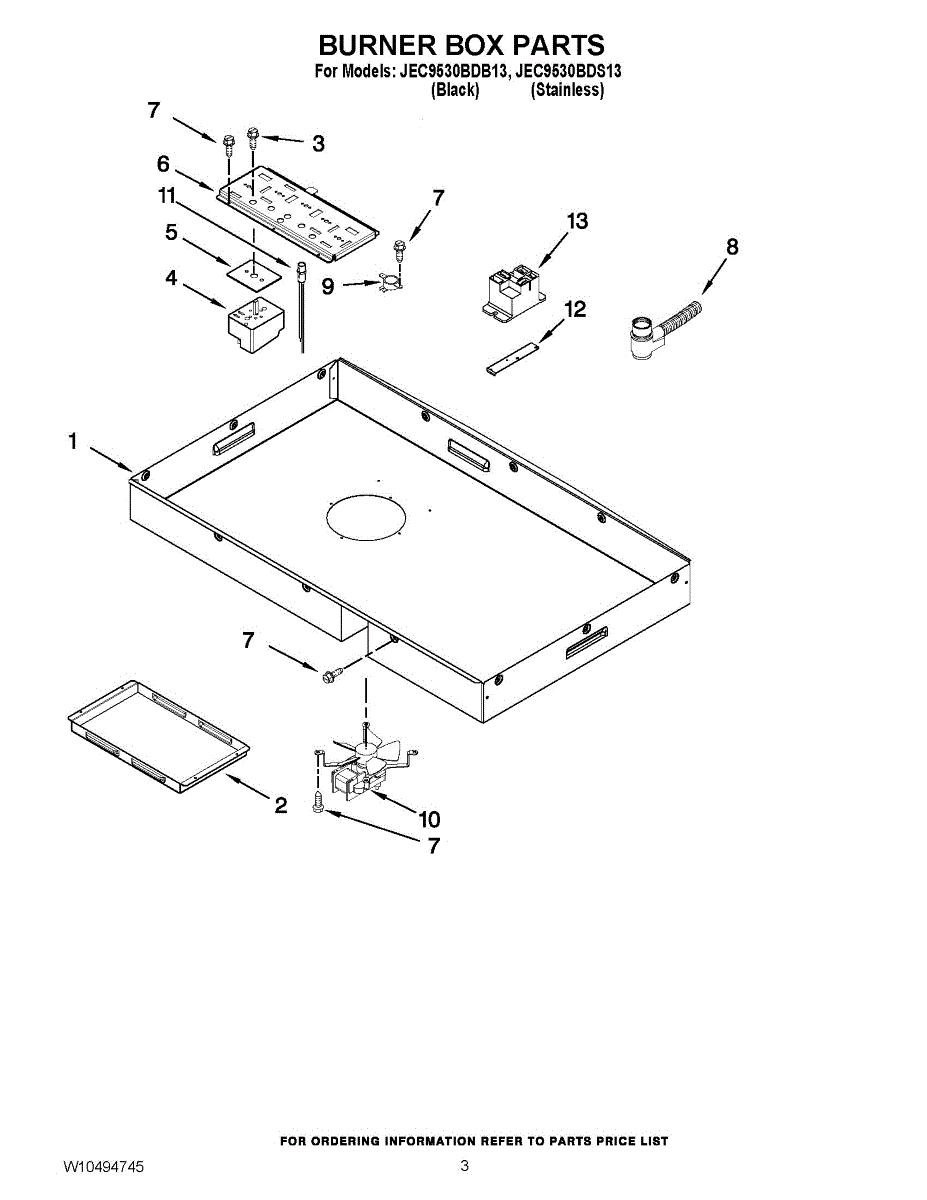

Parts for Jenn-Air JEC9530BDB13: 02 - Burner Box Parts

This infinite switch controls the heat level of a cooktop's front or rear top burner, restoring variable temperature adjustment for electric ranges. It replaces a worn or failed burner control to help your surface element respond correctly. What it does:

• Regulates burner heat by varying power to the surface element for low-to-high settings
• Commonly used when a burner won't heat, overheats, or only works on one or two settings
• Replaces a faulty control that causes erratic temperature changes or no response to knob adjustments
• Connects to the stove's internal wiring and mounts at the range control panel

• One infinite burner control switch

• Disconnect power to the appliance at the breaker before starting any work
• Note terminal locations and wire colors; transfer wires one at a time or label them to ensure correct reassembly

This relay is used on multiple types of appliances: Ranges, Cooktops, Wall Ovens, Washers and Dryers.
