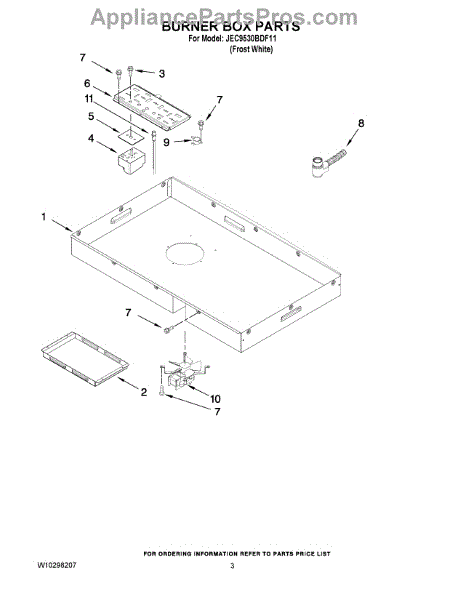

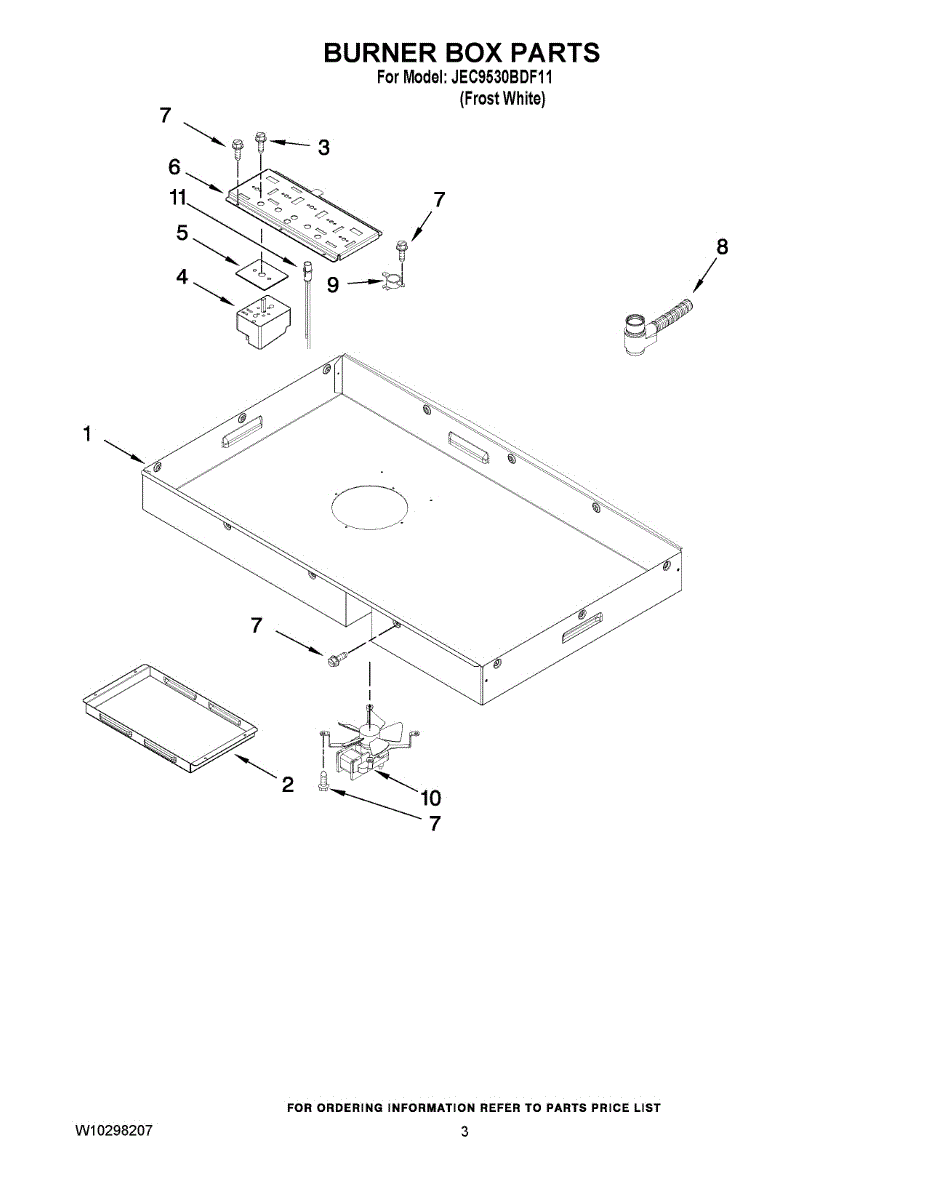

Parts for Maytag JEC9530BDF11: 02 - Burner Box Parts

Parts for Maytag JEC9530BDF11: 02 - Burner Box Parts

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: 4011F518-51
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: 3601F384-51
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP7101P309-60

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

  • Fastens panels, brackets, and internal parts to maintain proper alignment
  • Helps resolve issues caused by missing or damaged screws
  • Restores secure mounting after service where original hardware is lost
  • Use when threads are stripped or the screw head is damaged and won't tighten
What's included: One replacement screw. Install notes:
  • Disconnect power; turn off gas supply if applicable before servicing
  • Match screw location and length to your model's parts diagram for correct placement
  • Start threads by hand to avoid cross-threading; use the correct driver bit
  • Snug firmly but do not overtighten to prevent damage to mounting points

More
$9.07

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
4
By: Whirlpool
Part Number: 8507P368-60

Fix a burner that won't heat or won't turn off with this cooktop burner control switch. Most DIYers complete this repair in under 30 minutes.

More
$135.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
4
Product photo
By: Whirlpool
Part Number: WP74008252

If your cooktop burner won't adjust heat or stays on high, this infinite switch restores proper temperature control. Moderate DIY repair in 30-45 minutes.

More
$80.28

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
5
By: Whirlpool
Part Number: WP7201P130-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
By: Whirlpool
Part Number: 3605F343-51
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Best Seller
Product photo
4.6 (8)
By: Whirlpool
Part Number: WP90767

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

  • Loose or wobbly components within the appliance
  • Panels or parts that are not securely attached
  • Rattling or unusual noises due to loose parts
  • Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

More
$7.56

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
8
By: Whirlpool
Part Number: 5171P823-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
Product photo
By: Whirlpool
Part Number: 7403P227-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Maytag
Part Number: 7407P192-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Maytag
Part Number: 7407P191-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Maytag
Part Number: 7407P190-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Maytag
Part Number: 7407P189-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Maytag
Part Number: 7407P188-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
By: Maytag
Part Number: 7407P187-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
