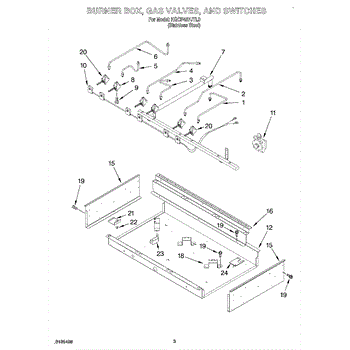

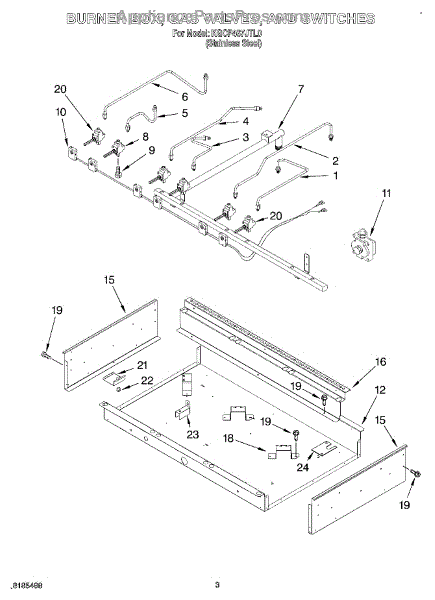

Parts for Kitchenaid KGCP467JTL0: 02 - Burner Box, Gas Valves, And Switches Parts

Location: Right front.

Location: Right rear.

Location: Center front.

Location: Center rear.

Location: Left front.

Location: Left rear.

Location: Left front.

Gas valve shaft seal.

This gas pressure regulator stabilizes incoming supply to your range or oven, delivering consistent burner flames. Replacing a failed regulator can restore proper heat output and reliable ignition across surface, bake, and broil burners.

• Regulates household gas supply to the appliance manifold for stable burner operation
• Helps maintain consistent flame height and heat in the oven and on the cooktop
• Protects downstream gas components from overpressure
• Failure symptoms include weak flames on all burners, oven or broiler not heating, or repeated clicking with no ignition

• Disconnect power, shut off gas supply, and allow the appliance to cool before servicing
• Observe flow-direction/orientation arrows and connect inlet/outlet ports correctly
• Apply an approved gas-rated thread sealant to threaded joints; avoid overtightening
• After installation, leak-test all connections with an approved solution—never use an open flame

Right side burner box assembly.

Left side burner box assembly.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

Size: Small. Front gas burner valve.

This support bracket secures and stabilizes appliance panels and internal assemblies where a small mounting brace is required. It restores proper alignment and helps prevent vibration or sagging for a firmer fit and quieter operation. What it does

• Anchors and supports panels, trim, or internal components to the cabinet or frame
• Keeps assemblies aligned to prevent rubbing, gaps, or misalignment
• Reduces rattling and vibration caused by loose or missing bracketry
• Restores proper fit when original bracket is bent, broken, or missing

• Disconnect power to the appliance before beginning any repair
• Inspect mounting location and replace any stripped fasteners or damaged hardware
• Use the correct screws and hand tools to avoid stripping or overtightening

Size: 28 inches long.
