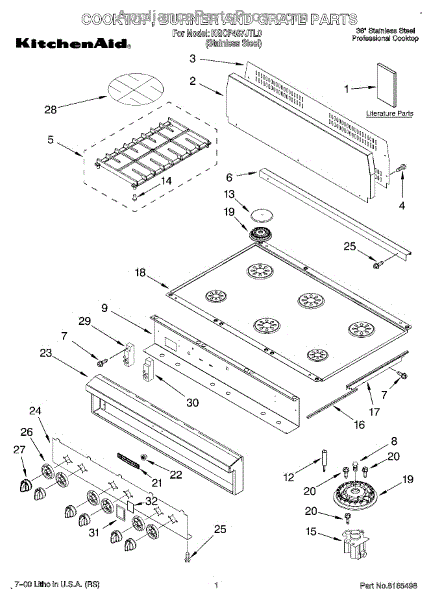

Parts for Kitchenaid KGCP467JTL0: 01 - Cooktop, Burner And Grate Parts

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Color: Black.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

Location: Left front.

Location: Right front.

Replacement electrode that creates the spark needed to light a gas range or cooktop burner, restoring reliable ignition and consistent burner operation for safe, predictable cooking. What it does

• Produces the spark at the burner to ignite gas when the control is turned on.
• Replaces a cracked, fouled, or non-sparking electrode that prevents burners from lighting.
• Can resolve weak, intermittent, or no-ignition symptoms and reduce continuous clicking.
• Works as the ignition element for the cooktop/range burner assembly.

• Disconnect power and shut off the gas supply before starting any service; allow the appliance to cool completely.
• Handle the ceramic tip and wiring gently—do not force or bend the electrode.
• Use basic hand tools to access and secure the electrode; confirm correct alignment and tight mounting.

Color: Coal matte black. 14,000 BTU.

The Foot Pad Kit for Whirlpool ranges is an OEM part specifically designed to fit underneath the grates. These small but critical components provide cushioning and stability for the grates, preventing them from scratching the cooktop surface and reducing noise and movement during cooking.

Symptoms of worn or missing Foot Pads include:

• Grates that wobble or shift during use
• Increased noise, such as rattling or scraping, when moving pots and pans
• Scratches or other damage to the cooktop surface beneath the grates
• Uneven cooking surfaces which can affect the stability of cookware

Causes of degradation in foot pads can include high heat exposure, frequent cleaning that wears down the material, or the natural breakdown of rubber or silicone over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Includes spark electrode.

Can be used for both sides.

Left hand side.

Right hand side.

Location: Left front. 14,000 BTU.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement control knob restores a worn or damaged gas range control interface so you can safely and accurately adjust burner/oven settings. It gives a secure grip and reliable rotational control for normal operation. What it does:

• Fits onto the gas control shaft to allow manual selection of burner or oven settings.
• Restores proper tactile feel and alignment when the original knob is cracked, stripped, or missing.
• Helps prevent accidental slips or imprecise adjustments that make flame/temperature control difficult.
• Common symptom: knob spins, won't engage the valve, or is physically broken and cannot be used.

• Turn off gas supply and electric power to the appliance and allow all surfaces to cool before attempting replacement.
• Remove the old knob by pulling it straight off the control shaft; align the new knob to the splines and push it firmly into place.
• Do not force the knob if it doesn't seat smoothly; double-check alignment.

This spark module generates the high-voltage pulses that ignite your gas surface burners. Replacing a failed module restores consistent clicking and lighting so burners ignite quickly and reliably.

• Supplies timed high-voltage pulses to each surface igniter when a burner knob is turned
• Coordinates ignition for four burners
• Common symptoms: no spark on any burner, only some burners sparking, continuous clicking after flame lights, or intermittent/weak spark
• Helps resolve burners that only light with a match

• Disconnect power and shut off gas before servicing
• Access location varies by model
• Label and transfer wires one at a time to the new module; ensure the ground connection is secure
• Reinstall in the original position, route wires away from heat/sharp edges, and test all burners

Instruction sheet included.
