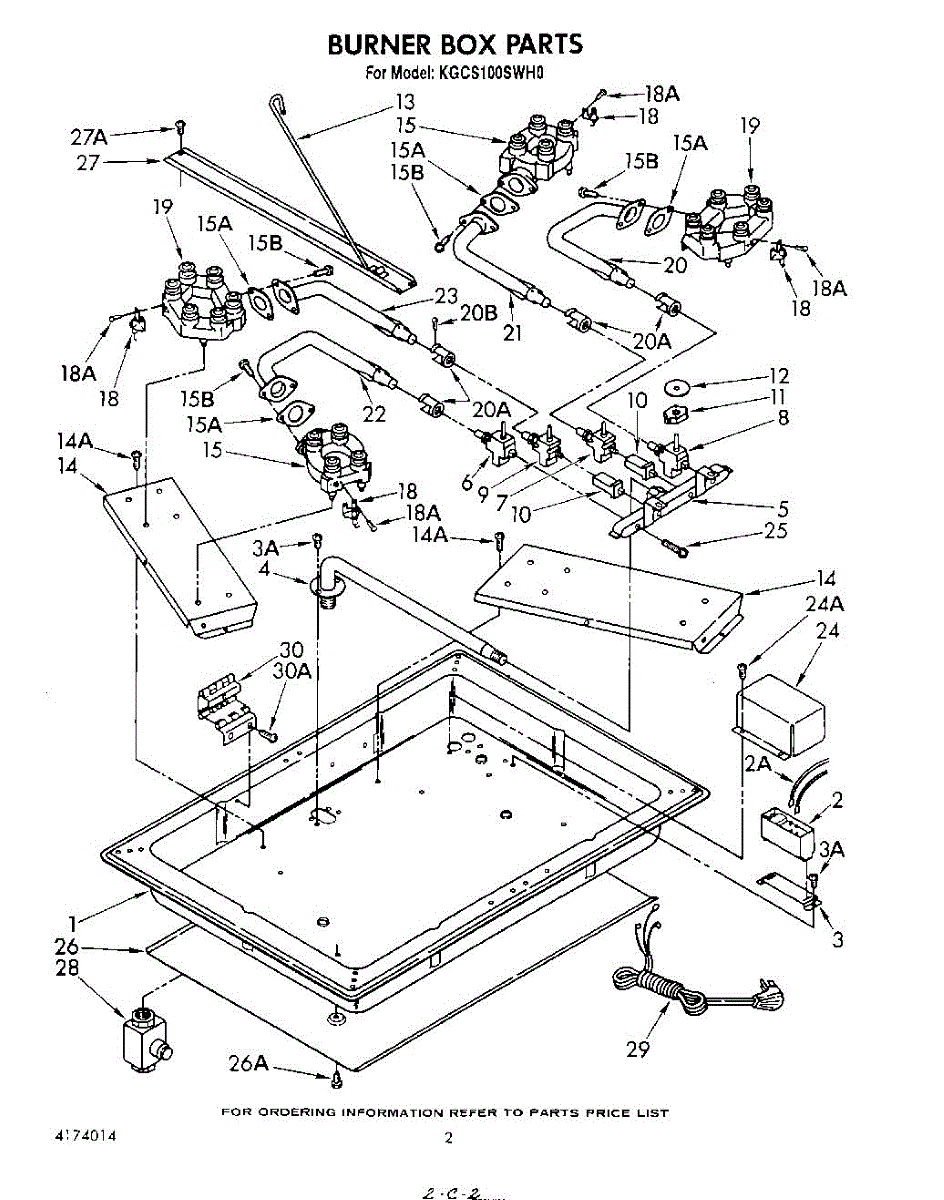

Parts for Kitchenaid KGCS100SWH0: 02 - Burner Box Parts

Size: 8-18 x 1/4 inch. Self tapping.

Location: Left front.

Location: Right rear.

Location: Right front.

Location: Left rear.

Gas valve shaft seal.

Size: 8-18 x 3/8 inch.

This part has been discontinued by the manufacturer and is no longer available.

Size: Small.

This part has been discontinued by the manufacturer and is no longer available.

Size: 6-32 x 9/32 inch.

This igniter top is the spark electrode that produces the spark to light a gas cooktop burner, restoring reliable ignition for safe cooking. It replaces the worn or damaged electrode that fails to spark or lights intermittently. What it does:

• Sends the spark to ignite the burner when the control is turned on.
• Commonly used when burners click but do not light or flame is slow to ignite.
• Helps stop continuous sparking caused by cracked or misaligned electrodes.
• Works with the burner cap and gas valve to ensure consistent ignition.

• One igniter top (spark electrode) as shown

• Disconnect power and shut off gas supply before attempting replacement.
• Handle the ceramic insulation carefully to avoid cracking; inspect wiring and connectors for damage.
• Verify correct part number and fit with your appliance diagram before ordering.

Size: Large.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Size: 8-18 x 3/8 inch.

This part has been discontinued by the manufacturer and is no longer available.

Size: 8-18 x 1/4 inch. Self tapping.

Size: 8-18 x 3/8 inch.
