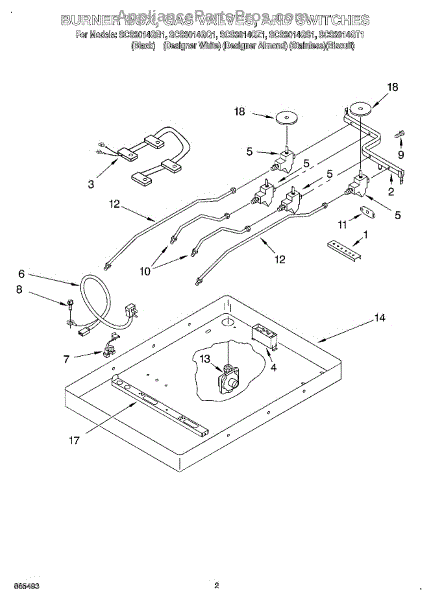

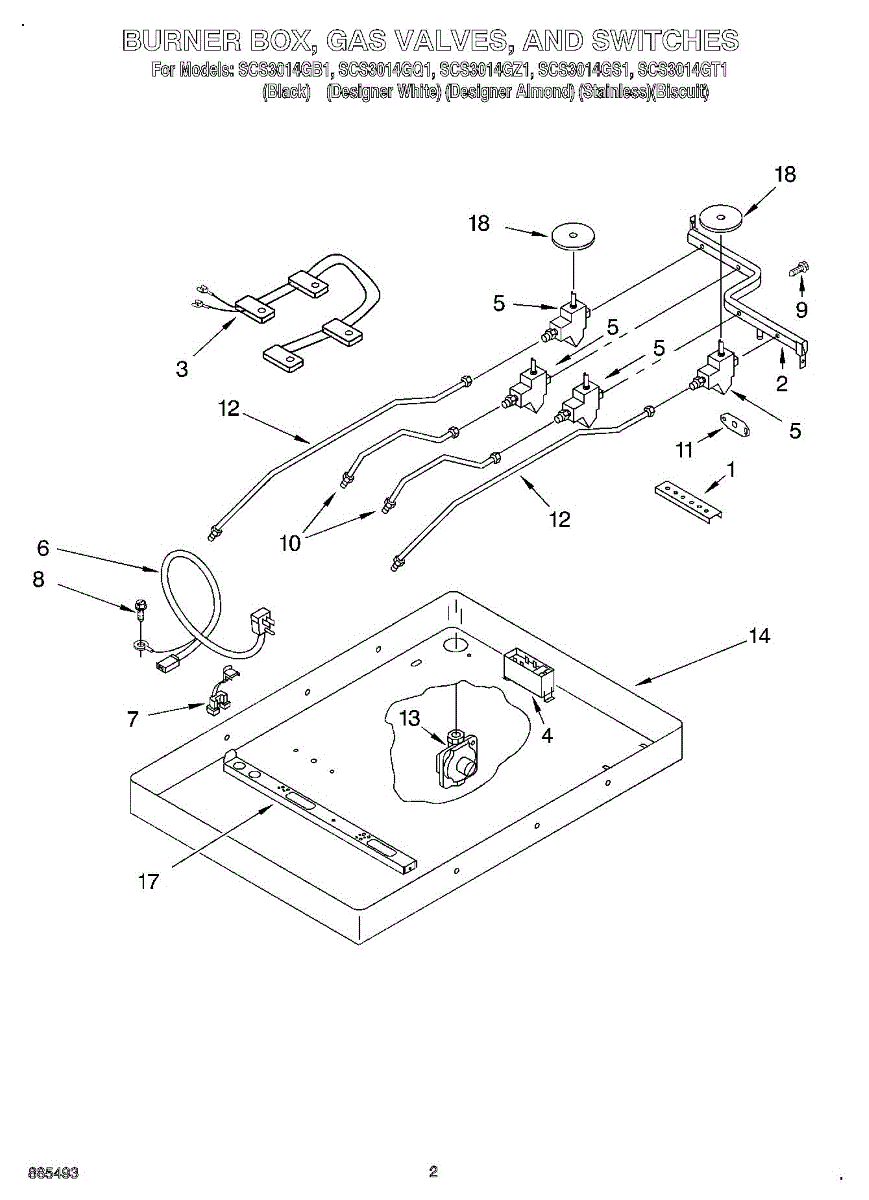

Parts for Whirlpool SCS3014GT1: 02 - Burner Box, Gas Valves, And Switches Parts

Size: 8-32 x 2 1/2 inch.

Hardware kit with screws and brackets to secure cooktop components. Replaces worn, missing, or damaged mounting fasteners for proper fit and stability.

Manifold pipe for gas cooktops. Distributes gas from the supply line to the burner valves. Replace if cracked, corroded, or leaking. Essential component.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement switch and wire harness assembly that restores the electrical connection for the associated appliance control. It provides a direct, plug-and-play solution to replace a worn or damaged switch harness and help return the affected function to normal. What it does:

• Routes power and control signals between the appliance wiring and the switch
• Completes the circuit when the switch is engaged so the controlled feature operates
• Eliminates intermittent or failed operation caused by broken wires, loose connections, or faulty switch contacts
• Helps address symptoms such as the related control or feature not powering on or responding reliably

• Disconnect power to the appliance before starting any repairs
• Handle connectors and wiring gently to avoid damaging terminals

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

Gas burners won't light or click erratically? A faulty spark module stops igniters from sparking. Moderate DIY repair—requires cooktop removal.

Size: Large. Rear gas burner valve.

Size: Small. Front gas burner valve.

Electric bushing for gas cooktop burner assembly. Replaces worn, cracked, or missing bushings that support electrical connections. Direct fit part.

Appliance won't start or trips breaker? This ground screw secures the grounding conductor to the chassis for safe electrical connection. Simple fix.

This set of four gas tubes delivers fuel from the main gas line to each burner on your cooktop. The tubes are precisely sized to ensure proper gas flow and pressure to each burner location. Replace this tubing set if you smell gas, burners won't light consistently, or if existing tubes are kinked or damaged.

Burner tubing for left front and rear burners on gas cooktops. Replace if cracked, damaged, or leaking. Connects gas valve to burner assembly.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Support plate for gas cooktops. Mounts underneath the cooktop surface to provide structural support. Replace if cracked, bent, or damaged during repairs.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Gas valve shaft seal.

Size: 15 inches long.

Size: 28 inches long.

LP conversion kit with 7 spud orifices for converting gas cooktop from natural gas to propane. Includes multiple orifice sizes for different burners.

LP conversion kit with 7 spud orifices for converting gas cooktop from natural gas to propane. Includes multiple orifice sizes for different burners.
