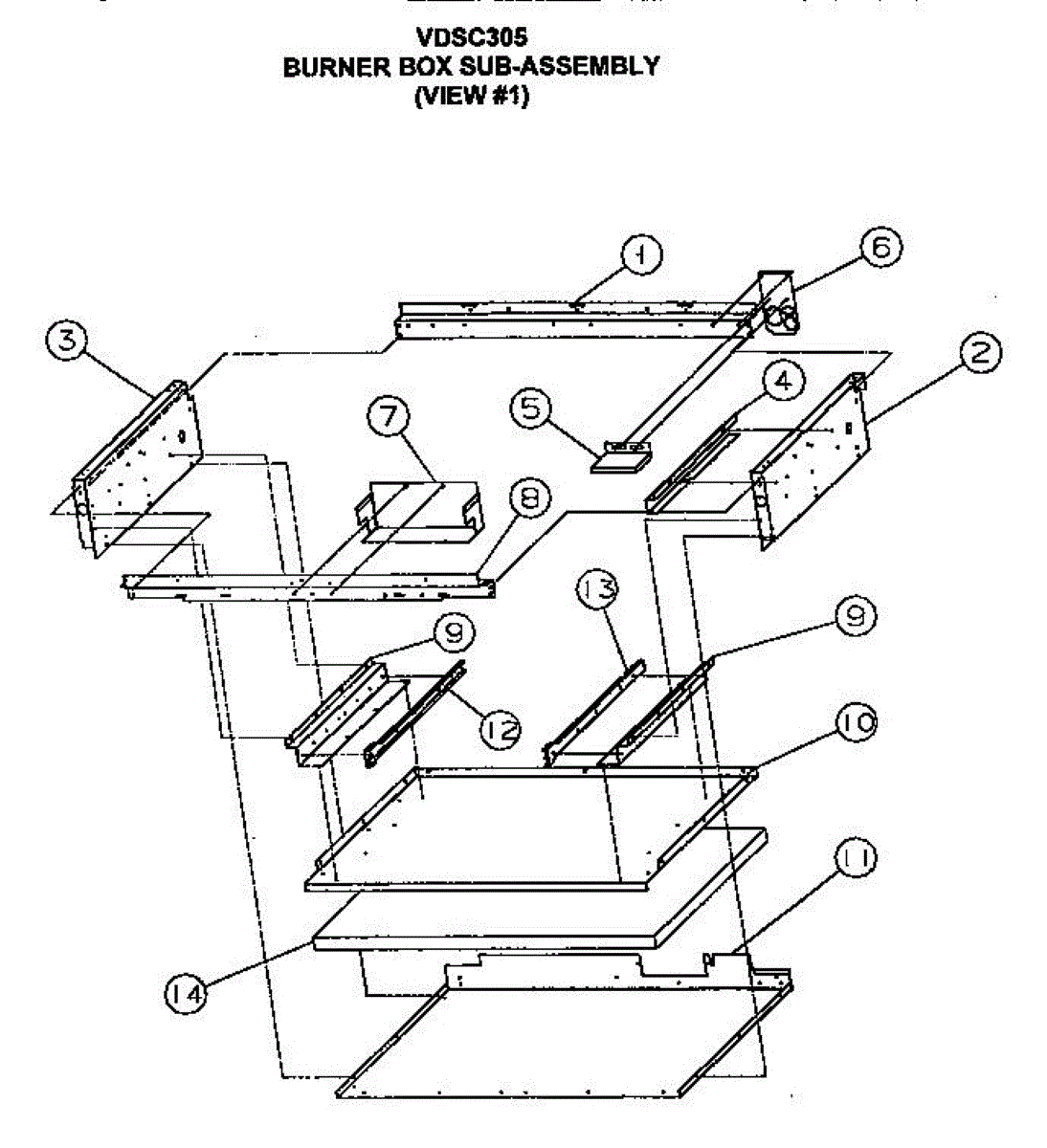

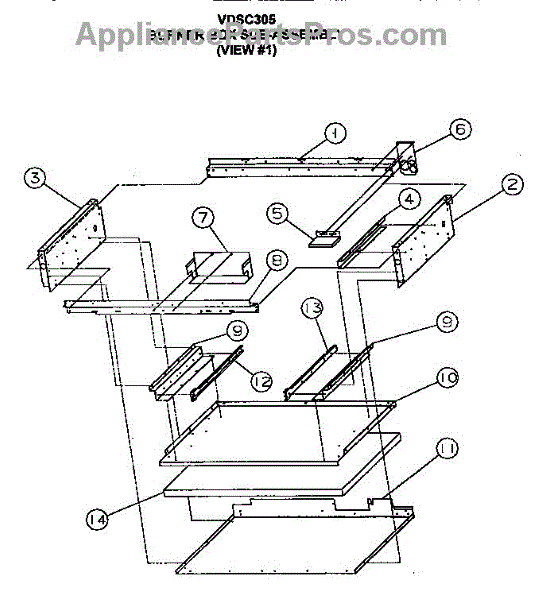

Parts for Viking Range VDSC305: Burner Box Sub-Assembly Parts

This drip tray guide bracket secures and aligns the appliance's removable drip tray so it slides smoothly and stays in place. It helps prevent the tray from rattling or shifting while in use. What it does:

• Supports and guides the drip tray or pan along its track for proper alignment
• Keeps the tray stable to reduce noise and prevent spills from shifting
• Restores smooth insertion and removal of the drip tray
• Useful when bracket is bent, cracked, or missing

• One drip tray guide bracket

• Designed for field-replacement; inspect surrounding mounts and hardware before installing
• Use appropriate hand tools and avoid over-tightening fasteners
• Disconnect power to the appliance and follow OEM safety recommendations if accessing electrical components
• If bracket is corroded or mounting holes are damaged, replace damaged hardware.

Left-hand drip tray guide for gas cooktops and ranges. Replaces cracked, broken, or missing guides that secure the drip tray assembly in position.

Oven insulation roll that installs under the oven pan for heat retention and protection. Replace if missing, deteriorated, or damaged. Cuts to size.
