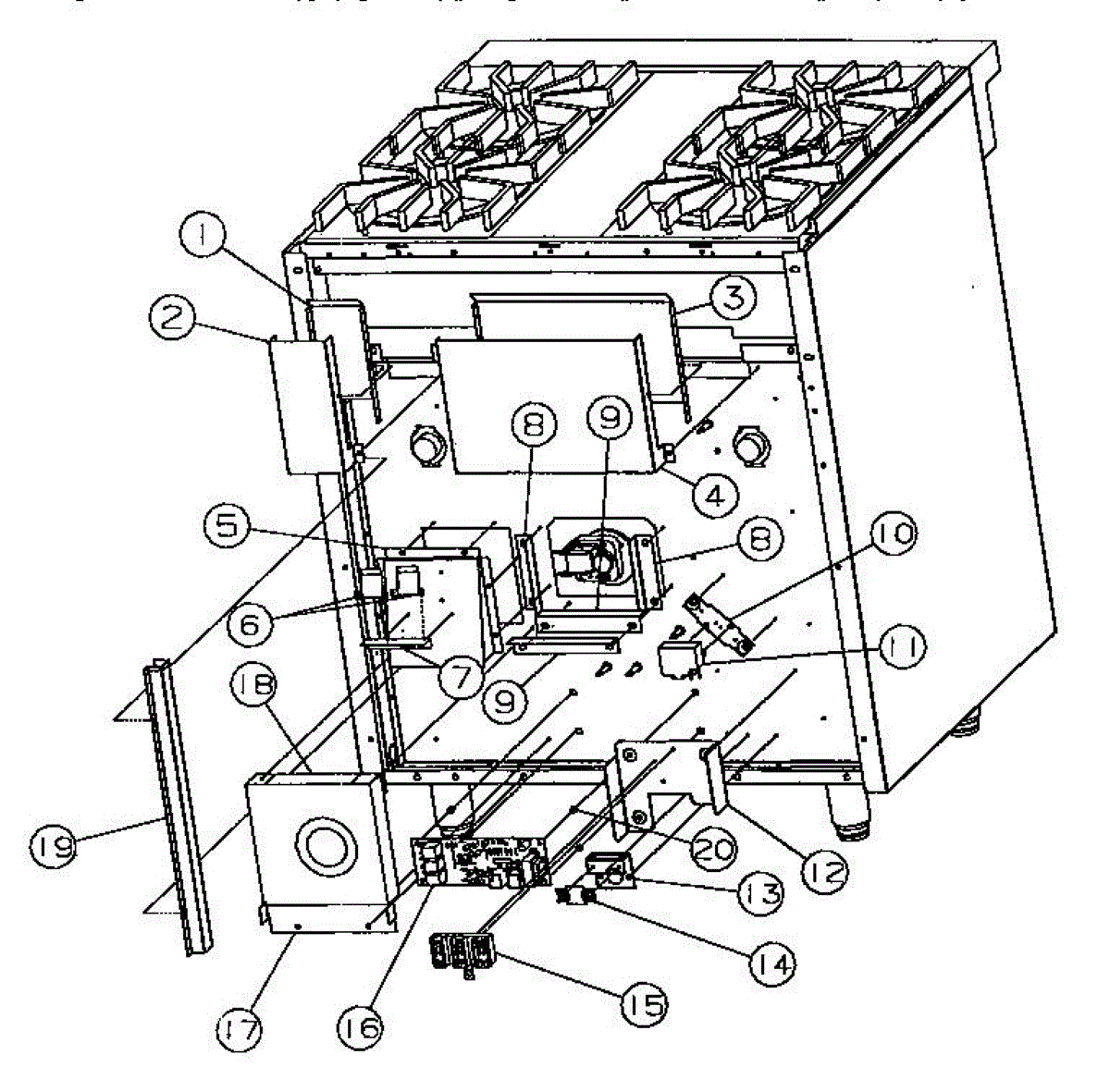

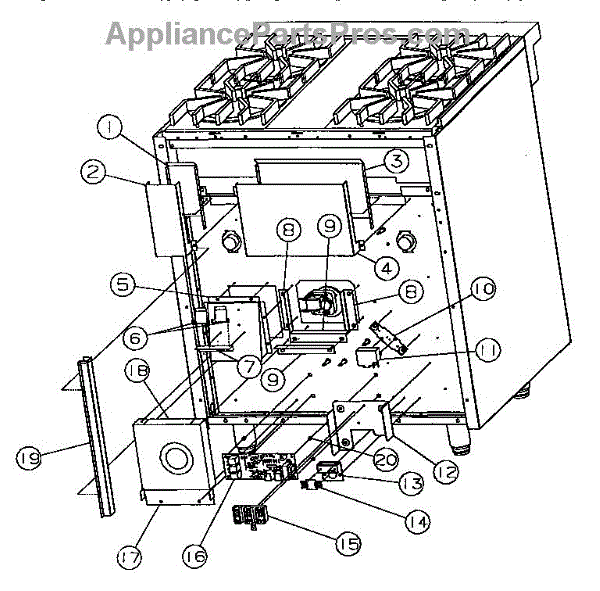

Parts for Viking Range VDSC305: Rear Panel Assembly Parts

Range won't heat or cycles incorrectly? This double-pole control relay switches two circuits to restore heating and control operation in your oven.

Secures thermal cutoff sensor for accurate oven temperature control. Replaces broken or damaged brackets that allow sensor to shift position.

Oven won't heat after self-clean or overheats during cleaning? This auto-reset safety thermostat limits heat during the cycle and restores power automatically.

This control board operates the oven's self-clean cycle and timer functions, restoring reliable control of cleaning, timed cook settings, and related control signals. Replaces a failed electronic module to return normal oven control behavior. What it does:

• Manages the oven self-clean sequence and related safety interlocks
• Controls clock and timer functions used for delayed or timed cooking
• Sends/receives control signals to the oven's temperature and door systems
• Commonly replaces a board that causes self-clean to fail, timers to not run, or control errors to appear

• Disconnect power at the breaker before starting; this is an electrical/ESD-sensitive module
• Handle the board by edges and avoid static discharge; wear an anti-static strap if available
• Installation typically requires removing the console or rear panel and reconnecting wiring harnesses exactly as found
