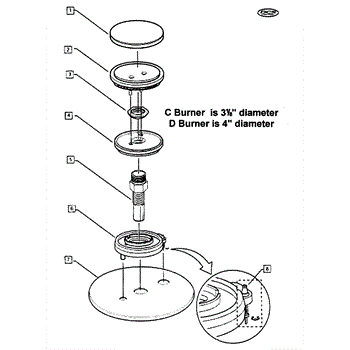

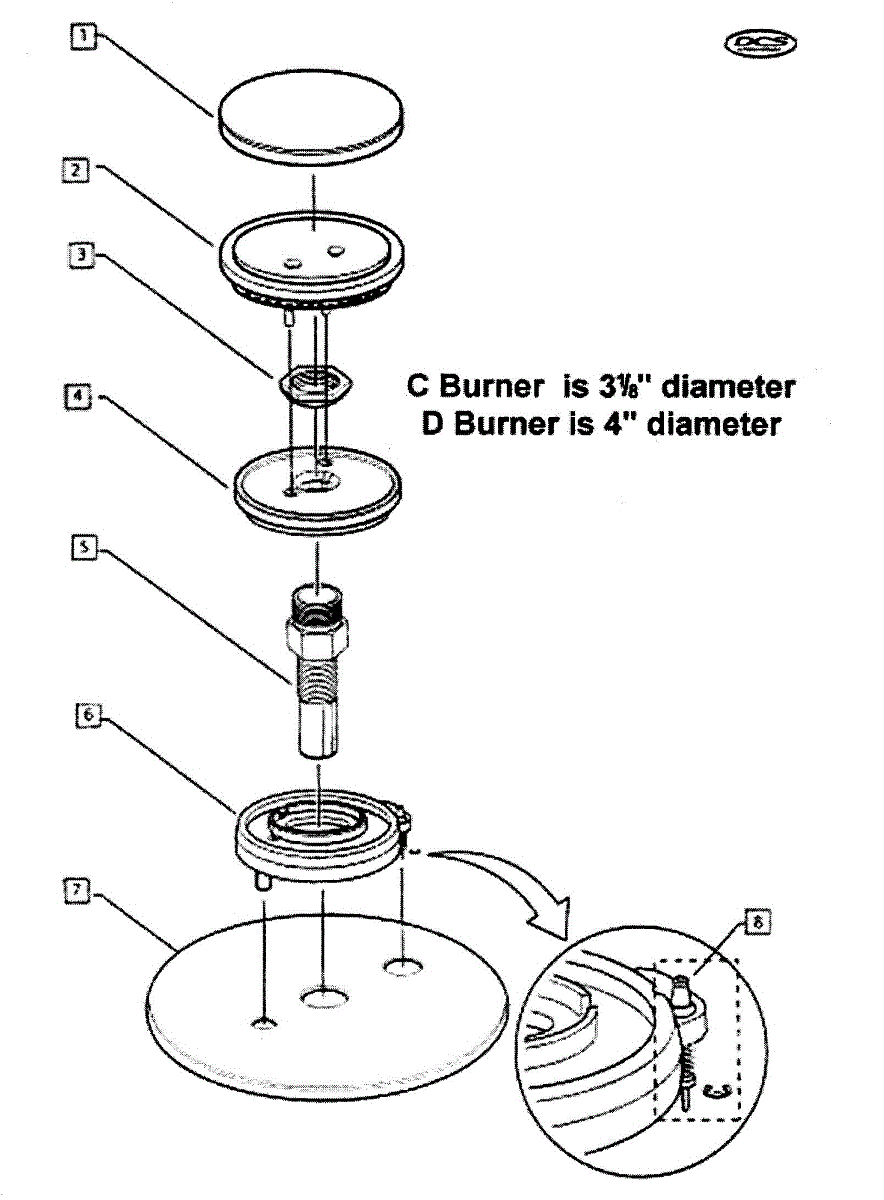

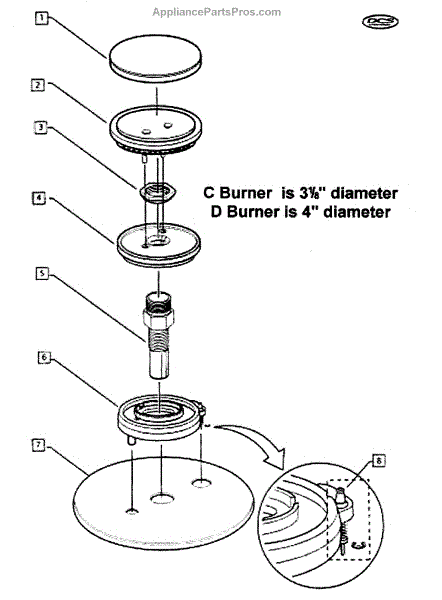

Parts for Dcs RDT485GD-70714: Burner Parts

A replacement D-shaped burner cap that restores even flame coverage and protects the burner head on compatible gas cooktops. Use this cap to improve ignition reliability and maintain correct heat distribution for safer cooking. What it does:

• Covers the burner head to direct flame and promote even heating across cookware
• Helps prevent uneven ignition, sputtering flames, or weak burners caused by damaged or missing caps
• Protects the burner head from spills, debris, and wear that can interfere with performance
• Matches the OEM geometry for proper alignment and flame pattern when seated correctly

• One D-shaped burner cap

• Turn off the cooktop gas supply and ensure the surface is cool before removing or replacing the cap
• Lift the old cap straight up; place the new cap onto the burner post, ensuring it sits flat and centered
• Clean burner head and ports of debris before installing the new cap to ensure proper flame

A chamfered nut used to secure appliance components, helping parts seat smoothly and stay tight during normal use. Replace a missing or worn nut to restore secure fastening and reduce vibration or loose panels. What it does:

• Secures a matching stud or bolt to hold panels, brackets, or components in place.
• Chamfered edge guides the nut onto the mating part for easier alignment and seating.
• Helps prevent loosening that can cause rattling, vibration, or misaligned parts.
• Small replacement used where an exact fit and flush finish are required.

• One chamfered nut (1 pk)

• Disconnect power and any water supply before servicing the appliance.
• Start threads by hand to avoid cross-threading, then tighten with the appropriate tool.
• Do not overtighten; replace any damaged mating hardware or washers as needed and keep small parts away from children.

This simmer ring is the low-heat ring for a C-size gas cooktop burner, helping concentrate the flame for gentle simmering and even low-heat cooking. Designed to fit under the burner cap and work with the burner base. What it does:

• Directs and shapes the burner flame for consistent low-heat/simmer cooking.
• Helps stabilize a small flame and prevent flare-ups at low settings.
• Restores correct burner cap alignment and even heating when the original ring is damaged or warped.
• Useful when you see weak, uneven, or wandering flames on the C-position burner.

• Allow cooktop to cool completely before you start; wear work gloves to protect hands.
• Remove grates and burner caps first, then lift out the old simmer ring and set the new ring into the burner base, ensuring proper seating.
• Do not force parts; check that the burner cap sits flat and the ring does not interfere with gas ports.
• If you smell gas, turn off the appliance at the supply.

A replacement simmer ring designed for D-style gas surface burners to restore even low-heat flame control and reduce hot spots during simmering. Fits specified Fisher & Paykel cooktop D burners for precise low-heat cooking. What it does:

• Replaces worn or warped simmer ring to help stabilize low flames for gentle simmering
• Helps improve heat distribution at low burner settings and reduce flame fluctuation
• Useful when the burner produces uneven heat or the flame lifts or sputters at low output

• For gas cooktops only; turn off gas supply and power before servicing
• Allow the cooktop to cool completely and follow manufacturer instructions for burner disassembly
• Inspect surrounding burner components (cap, base, orifice) for damage and clean before reassembly

The Venturi/Burner Tube is an OEM part for Fisher & Paykel gas ranges and cooktops. This tube is located at the inlet of each gas burner and is responsible for properly mixing gas and air before combustion.

Causes can include damage, cracking, warping or blockages that disrupt the vital venturi effect. Over time, heat and pressure can degrade burner tubes, preventing optimal fuel-air mixing.

Symptoms of a bad Venturi/Burner Tube include:

• Uneven or unstable burner flames
• Reduced flame height or gas output
• Yellow flame indicating improper gas/air mixture
• excessive flame noise or lifting

This ignitor kit replaces the burner spark electrode and its retainers, restoring dependable ignition. It produces a focused spark at the burner so the gas lights quickly and consistently. What it does:

• Generates the high-voltage spark needed to ignite gas at the burner
• Retaining spring and clip hold the electrode in the correct position for reliable ignition
• Helps address: burner won't light, intermittent or weak spark at a burner, or a cracked/chipped electrode insulator

• 1 ignitor (spark electrode), 1 retaining spring, 1 clip

• Disconnect electrical power and shut off gas; allow the appliance to cool before servicing
• Remove burner components to access the electrode; release the clip/spring and withdraw the old ignitor
• Transfer the spark lead to the new electrode; handle the ceramic insulator carefully to avoid damage
• Seat the electrode and secure with the spring and clip; align the tip per service guidelines and test for spark before reassembly
