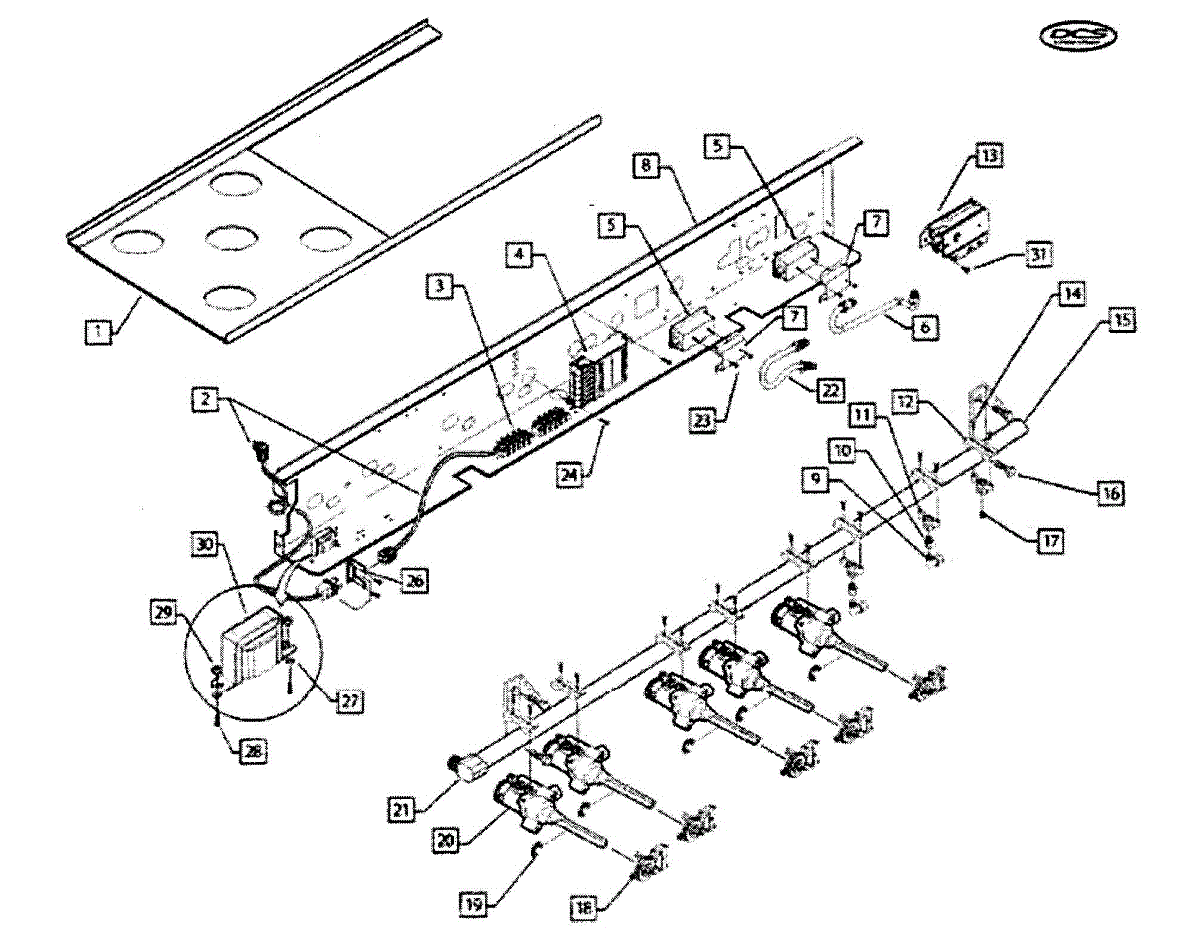

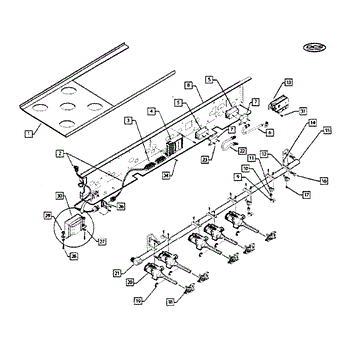

Parts for Dcs RDT485GD-70714: Manifold Parts

This inner cooktop panel is the internal top assembly that supports and protects cooktop components, restoring proper fit and structural support for the cooking surface. Use it to replace a cracked, warped, or damaged inner cooktop panel. What it does:

• Provides structural support beneath the cooktop surface so burners and grates sit correctly
• Shields internal components from spills, debris, and heat exposure
• Helps maintain correct alignment of surface elements for reliable operation
• Replaces panels that are bent, cracked, or heat-damaged and cause fit or sealing issues

• Disconnect power (and gas, if applicable) before starting any repairs
• Handle panel edges carefully — metal edges may be sharp
• Keep screws, brackets, and seals removed during disassembly to reinstall in original positions

This single thermal valve controls gas flow to a gas range burner, providing a reliable means to regulate ignition and flame. Replacing a faulty valve restores normal burner operation and improves oven/range safety. What it does:

• Regulates natural gas flow to a single burner or burner assembly
• Acts as a control point for ignition and flame maintenance
• Commonly replaced when a burner won't light, won't stay lit, or has inconsistent flame
• Matches OEM function and mounting for direct replacement

• Disconnect power and shut off the gas supply before attempting service
• Replace only with the exact valve specified for your appliance to ensure safe operation
• Check all fittings and connections for leaks after installation

This igniter switch mounts on the burner valve shaft and completes the ignition circuit when you turn the knob, causing the burners to click and light. Replacing a faulty switch restores dependable ignition and can stop nuisance clicking.

• Closes the ignition circuit when a control knob is turned
• Sends power to the spark module to generate burner spark
• Common symptoms include no clicking/spark when a knob is turned or continuous clicking after the burner lights

• Disconnect electrical power and shut off gas before servicing
• Remove the control knob and front panel/trim as needed to access the valve and switch
• Move wires from the old switch to the new one one at a time; orient the switch correctly on the valve shaft
• Reassemble, restore gas and power, then test burner ignition
