Parts for Electrolux E30GF74TPSB: Burner Parts

This replacement drain tube routes condensation and defrost water away from the evaporator area to the refrigerator drain system, helping prevent pooling and ice buildup. It restores proper water flow when the original tube is cracked or clogged. What it does:

• Channels defrost and condensation water from the evaporator to the drain pan or drain trough
• Helps prevent water pooling inside the fresh food or freezer compartments
• Reduces risk of ice buildup and associated odors caused by standing water
• Restores proper drainage after physical damage, cracks, or blockages

• Disconnect power to the appliance and, if applicable, shut off the water supply before starting.
• Remove access panels as needed to reach the evaporator/drain area; keep track of fasteners.
• Inspect surrounding grommets and fittings; replace any damaged seals to prevent leaks.

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring normal water delivery for drinking and ice production. It's a direct-replacement valve used in compatible Frigidaire refrigerators. What it does:

• Opens to allow water into the ice maker and dispenser when signaled by the refrigerator
• Stops water flow to prevent leaks when the refill cycle is complete or the unit is off
• Commonly replaced when dispenser or ice maker won't fill, or when water drips continuously
• Matches OEM function for reliable water delivery and shutoff

• One water inlet valve

• Disconnect power and shut off the house water supply before starting
• Drain remaining water lines and relieve pressure to avoid spills
• Replace with the same valve orientation and secure all inlet/outlet fittings; tighten to manufacturer torque specs if provided

The Gas Valve is an OEM part for Frigidaire gas ranges. It controls the flow of gas to the surface burners, enabling precise temperature adjustments and safe operation. This valve operates by opening and closing to allow gas to pass through when the burner is turned on and shutting off the flow when it is turned off.

Causes of a bad gas valve can include mechanical wear, debris buildup that obstructs the valve, or failure of the electrical components that control the valve's operation.

Symptoms of a bad Gas Valve include:

• Gas burner failing to light despite the ignition sparking
• Uneven flame or a flame that goes out unexpectedly
• A noticeable gas smell when the appliance is in use, indicating a potential leak
• Inability to adjust the flame height or heat level on the burners

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This burner assembly replaces a single surface burner on compatible gas ranges, restoring reliable heat for cooking. It provides the burner base, orifice support and connections needed to produce a steady flame when operating correctly. What it does:

• Holds and directs gas to the cooktop burner for ignition and steady flame
• Replaces worn or damaged burner hardware that can cause weak, uneven, or no flame
• Restores proper spacing and support for burner caps and grates
• Helps resolve ignition and heating issues when the burner component is the cause

• Disconnect the appliance from power and shut off gas supply before beginning work
• Basic hand tools typically required; some installations may require removing cooktop components
• Inspect seals and fittings for damage and replace if necessary to prevent leaks

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This ignitor orifice assembly secures the ignitor and delivers the correct gas flow to the oven burner for reliable ignition. It restores normal spark/heat behavior so the oven can light and heat consistently. What it does:

• Holds the ignitor/electrode and aligns it with the burner for proper sparking.
• Controls the gas flow to the burner through the orifice for safe ignition.
• Helps resolve symptoms like a weak or no flame, delayed ignition, or inconsistent heating.
• Works as a replacement for a damaged, clogged, or misaligned ignitor/orifice area.

• Turn off gas and electricity before starting work.
• Use proper tools and torque; replace any damaged gaskets or fasteners to ensure a safe seal.
• After installation, check for gas leaks and verify the oven lights and cycles normally.

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

This assembly combines the spark igniter electrode with the orifice holder for a gas surface burner. It restores dependable ignition and proper gas delivery so the burner lights quickly and consistently.

• Provides the spark to ignite the surface burner
• Routes gas from the valve through the orifice holder to the burner head
• Typical symptoms: burner won't light, clicks but no flame, intermittent ignition, or cracked/chipped igniter insulator
• Replacing a damaged assembly restores reliable ignition at that burner

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner head; lift the top or access panel as your model requires
• Disconnect the spark wire, unfasten the old assembly, mount the new one, and reconnect the wire
• Restore gas and power, then check connections for leaks with an approved solution and test ignition

The Regulator is an OEM part for Frigidaire ranges and cooktops. It's designed to maintain a safe and consistent gas flow to the burners, ensuring optimal performance and efficiency during cooking. This regulator adjusts the pressure of the gas coming from your home's supply line to match the requirements of the appliance, allowing for precise temperature control and reliable operation.

Causes of a bad regulator can include general wear and tear over time, exposure to high temperatures or cleaning chemicals that degrade its components, or a malfunction within the regulator itself, such as a stuck valve or broken diaphragm.

Symptoms of a bad Regulator include:

• Inconsistent flame size or color
• Burners not lighting
• A noticeable gas smell when the cooktop or range is on
• Weak or uneven heating performance

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement part is a safety valve. This part is found in various types of refrigerators or freezers and is able to ensure that the appliance is running smoothly and safely during use. A new safety valve might be needed if the user notices that the current one is no longer working properly. This may include it having a leak or making unfamiliar sounds. The user should be able to access the back of the appliance to replace or repair this part.This is a genuine OEM replacement part made by Frigidaire, sold individually. The item, made of durable materials, is meant to last a long time.

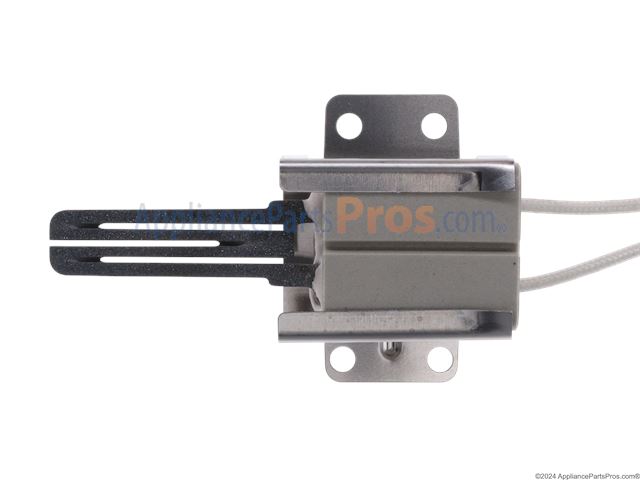

The Broil Igniter is an OEM part for Frigidaire gas ranges. It is the component responsible for igniting the broil burner located at the top of the oven cavity.

Without a functioning igniter, the broiler cannot be used to cook or brown food directly under the heating element. Over extended use at high broiler temperatures, igniters can degrade and crack rendering them unable to create the required electric spark.

Causes for replacement include standard wear over time or impact damage occurring during cleaning that compromises the integrity of the igniter.

Symptoms of a bad broil igniter are:

• Inability to light or reignite the broiler burners
• Error codes or messages related to ignition issues
• Broiler component that looks dark, worn, or broken

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Ignitor is an OEM replacement part for Frigidaire gas ranges. Located near the burner heads, this component is responsible for generating the electric spark required to light stove top burners.

Symptoms of a faulty ignitor include:

• Burners that will not light or only light intermittently
• Clicking noises but no flame ignition
• Diminished or no spark from the ignitor itself

Causes of ignitor failure can be an accumulation of deposits over many heating cycles. Physical damage from pots/pans is also possible. As electrical parts, ignitors have a limited lifespan depending on range usage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for safe, reliable operation. What it does:

• Secures panels, brackets, and trim to prevent rattling or loosening
• Restores proper fit where a damaged or missing screw caused gaps or movement
• Helps maintain component alignment for smooth operation
• Simple hardware replacement that supports overall appliance stability

• Disconnect power and gas before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Keep small parts away from children and dispose of old fasteners responsibly

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
