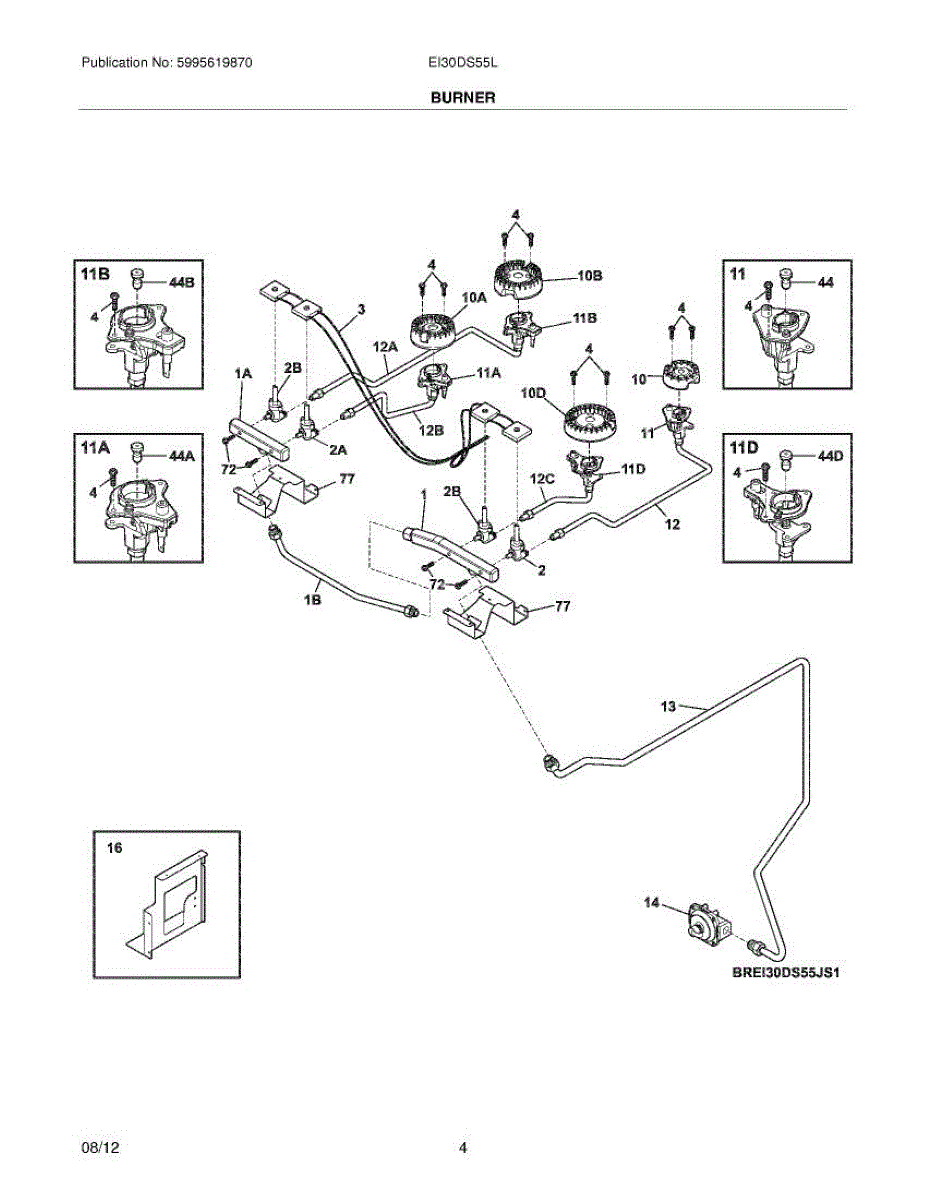

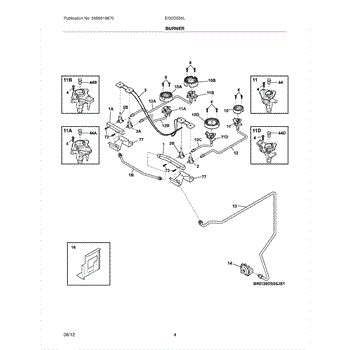

Parts for Electrolux EI30DS55LBB: 05 - Burner Parts

The Wiring Harness is an OEM component specially designed for Frigidaire gas ranges. Comprising bundled electrical wires, it powers critical control functions linking internal systems.

Continuous vibration from burners and motors fatigues insulation over time risking circuit failures or shorts that limit operations. Performance reliability decreases.

Causes involve normal thermal cycling from gas heating repeatedly flexing harness sheathing. Impacts risk abrading or severing vulnerable conductors.

Symptoms of a bad wiring harness include:

• Unresponsive control panels or display errors
• Individual cooking features ceasing to operate
• Range failing to power on as expected

Replacing with this OEM Frigidaire harness restores integrated range functionality. Compatibility also fits some Kenmore, Gibson, and Electrolux appliances preserving safe, optimized performance for years through authorized maintenance.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner replaces a worn or damaged unit on your range to restore reliable, even heat. Swap it in to correct poor performance caused by cracks, corrosion, or blockages so cooking results return to normal.

• Provides the heat source for a cooking zone on the range
• Common fix for damage, warping, or clogged ports/passages
• Symptoms include won't light/heat, weak or uneven heating, or irregular/yellow flame on gas models
• Visible rust, cracks, or deformation indicate replacement is needed

• Disconnect power; for gas models, also shut off the gas supply. Allow the appliance to cool completely
• Remove grate/cap or unplug element as applicable; take out screws/retainers to lift off the old burner
• Transfer reusable items from the original part (such as cap, electrode/igniter, and screws) if required by your model
• Align correctly and tighten fasteners evenly; restore utilities and test for proper operation

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

This assembly combines the spark igniter electrode with the orifice holder for a gas surface burner. It restores dependable ignition and proper gas delivery so the burner lights quickly and consistently.

• Provides the spark to ignite the surface burner
• Routes gas from the valve through the orifice holder to the burner head
• Typical symptoms: burner won't light, clicks but no flame, intermittent ignition, or cracked/chipped igniter insulator
• Replacing a damaged assembly restores reliable ignition at that burner

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner head; lift the top or access panel as your model requires
• Disconnect the spark wire, unfasten the old assembly, mount the new one, and reconnect the wire
• Restore gas and power, then check connections for leaks with an approved solution and test ignition

This ignitor and orifice assembly provides the ignition source and gas orifice for a gas oven or range burner, restoring reliable ignition for cooking. Replaces a worn or damaged ignitor/orifice to help the burner light correctly. What it does:

• Supplies the ignition element and properly sized orifice so the burner can light and maintain a stable flame.
• Replaces burned-out or cracked ignitors that cause slow or no ignition.
• Replaces clogged or damaged orifices that can cause weak or uneven flames.
• Common symptoms it can address: burner won't light, repeated clicking with no ignition, or a weak/uneven flame.

• Turn off the appliance power and shut off the gas supply before servicing.
• Handle the ignitor carefully—the ceramic/sensing tip is brittle and can break if dropped or bumped.
• Disconnect electrical connectors and note wire positions before removal; reconnect exactly as found.

This regulator controls and stabilizes the gas pressure delivered to the appliance so burners and the oven heat consistently. Replacing a faulty regulator restores proper flame performance and helps the appliance reach correct cooking temperatures. What it does:

• Regulates incoming gas pressure to the burner manifold and oven burner
• Helps maintain steady, even flame height during operation
• Can correct symptoms like weak or uneven flames and inconsistent heating
• Works as part of the gas supply system to protect downstream components

• One regulator

• Turn off the gas supply and power to the appliance before starting work
• Inspect gas fittings and use approved thread sealant where required by code
• After installation, check all gas connections for leaks and proper operation

A fixed natural gas orifice that meters fuel to a cooktop or oven burner to help maintain the correct flame size for reliable ignition and consistent heating. Replaces a worn or damaged natural-gas orifice to restore normal burner performance. What it does:

• Regulates the flow of natural gas to a burner for proper flame shape and heat output.
• Helps address weak, uneven, or low flames and burners that take longer to reach set temperature.
• Works at the burner valve/orifice holder to maintain steady ignition and cooking performance.
• Intended for natural gas systems only—use LP/propane orifices only when a verified conversion has been performed.

• Before servicing, shut off the gas supply and electrical power to the appliance.
• Replace only with the correct OEM or equivalent orifice size; do not force or overtighten.
• After installation, check all connections for leaks.

The Burner Orifice is an OEM part for Frigidaire ranges. This part regulates the flow of gas to the burners, ensuring proper combustion and heat output.

Causes of a bad burner orifice can include clogging from debris or food particles, corrosion or damage to the orifice opening, or improper installation or misalignment.

Symptoms of a bad burner orifice include:

• Uneven or flickering flames on the burners
• Yellow or orange-colored flames instead of a steady blue flame
• Burners producing excessive noise or popping sounds
• Difficulty in igniting the burners or keeping them lit
• Inconsistent heat output or hot and cold spots on the cooking surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Burner Orifice is an OEM replacement part for Frigidaire gas ranges and cooktops. It controls the mixture of gas and air delivered to each burner element.

Symptoms of a faulty orifice can include:

• Inconsistent or unpredictable burner flame heights
• Yellow flames that create excess soot or carbon buildup
• Potential risk of flashback into gas lines

Causes may involve gradual damage from normal usage, such as cracks developing. Improper cleaning can deposit residue that changes flame characteristics as well.

This OEM Frigidaire replacement restores balanced gas flow regulation. Compatible with ranges from Electrolux, Gibson, and select Kenmore models.

The Burner Orifice is an OEM part for Frigidaire cooktops and ranges. It is a critical component that controls the flow of gas to the burner, ensuring a consistent and stable flame for cooking. The orifice regulates the amount of gas released to the burner, which in turn affects the size and intensity of the flame.

Causes of a bad burner orifice can include food debris or grease build-up, corrosion from prolonged exposure to gas, or physical damage from cleaning or handling.

Symptoms of a bad burner orifice include:

• Uneven or irregular flame
• Burner not igniting
• Weak or yellow flame
• Gas smell near the burner

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This conversion kit changes a compatible gas range or cooktop's fuel configuration so burners operate correctly when switching fuel types. Use it to restore proper burner flame height and heat control after a gas-type change. What it does:

• Replaces orifice/regulator components needed to convert the appliance between gas fuel types
• Restores correct burner flame size and stability when fuel type is changed
• Helps eliminate low, uneven, or hard-to-light burners caused by incorrect orifices
• Ensures the appliance matches local fuel supply and operating requirements

• Gas conversions must follow the OEM instructions included with the kit; read all documentation before starting
• Turn off the gas supply and electricity to the appliance before beginning work
• Additional parts or adjustments may be required for some models

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
