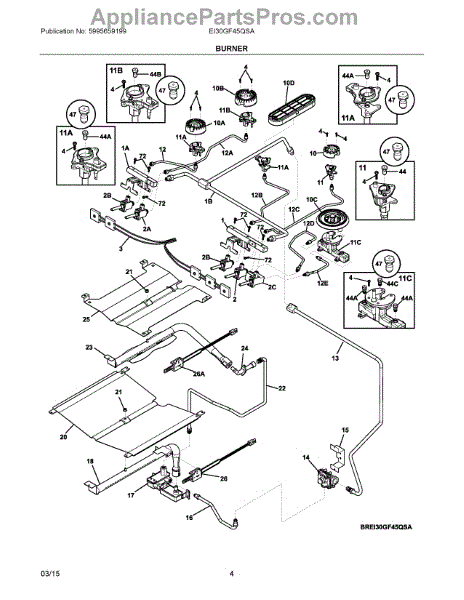

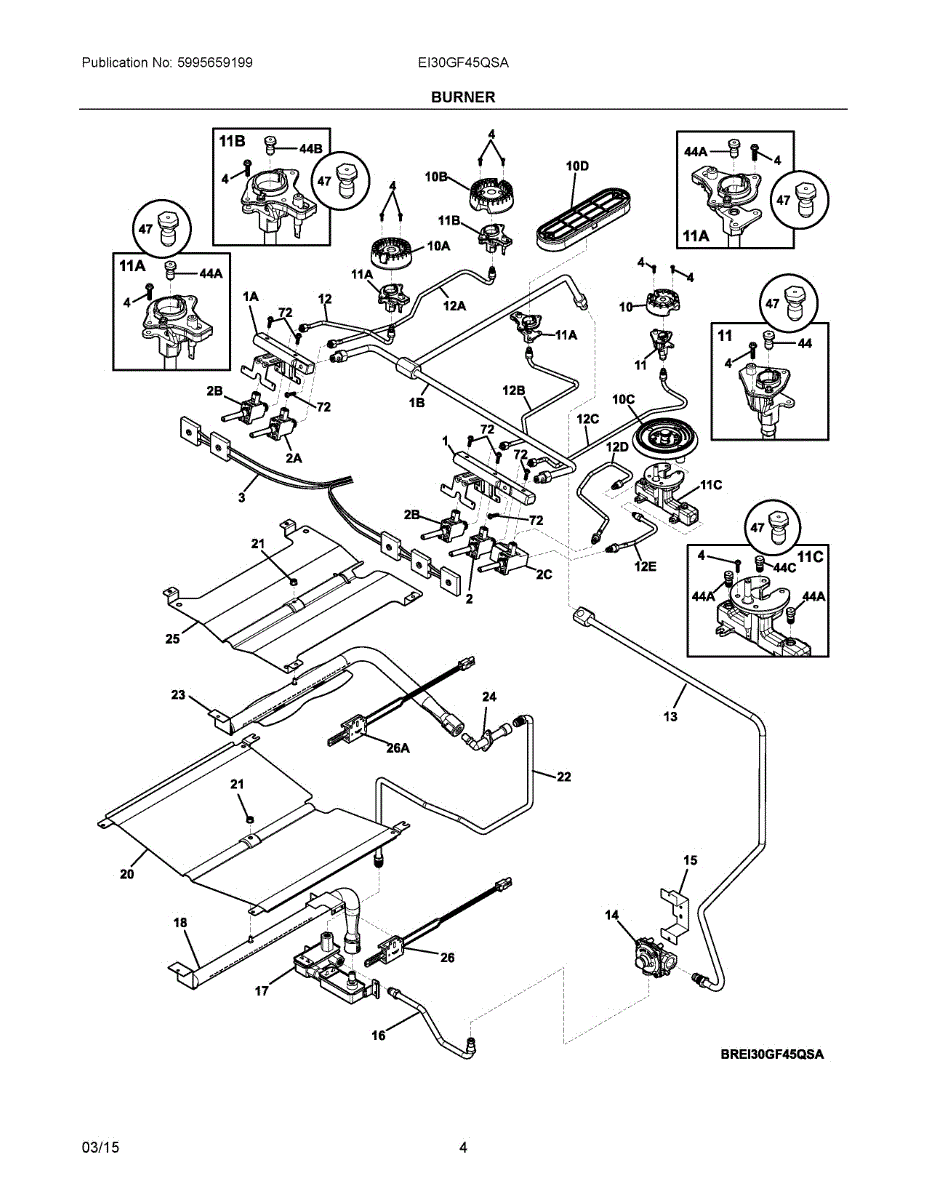

Parts for Electrolux EI30GF45QSA: 03 - Burner Parts

Burner won't ignite or flame won't adjust? This top burner valve controls gas flow to your cooktop burner, restoring proper ignition and flame control.

This safety valve controls gas flow to the oven burner, opening only when the ignition system calls for heat. Replacing a weak or stuck valve restores reliable ignition and consistent oven temperatures for safe, dependable baking and roasting. What it does:

• Regulates and shuts off gas to the oven burner circuit
• Works with the igniter; opens only when proper current is present
• Fails closed to help prevent unlit gas from entering the oven
• Common symptoms may include: oven won't heat, intermittent heating, very long preheat, or a weak/unstable flame

• 1 safety valve

• Disconnect power and shut off gas supply before servicing
• Label and transfer all tubing and wires from the original valve one-for-one
• Support flare fittings with two wrenches; use thread sealant only on NPT threads (never on flare connections)
• After installation, restore gas and check every joint for leaks with an approved leak-detection solution

Wire harness for ranges. Connects electrical components inside your appliance. Replace if wires are frayed, damaged, or connections are loose or corroded.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Burner won't light or flame is weak? This surface burner assembly restores proper gas flow and steady flames on gas ranges and cooktops. DIY-friendly.

Replacement surface burner for gas range cooktops. Installs directly onto the burner base. Order when your existing burner is cracked, clogged, or missing.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly delivers and meters gas to the oven/range ignitor so burners light reliably. Replace a damaged or clogged assembly to restore consistent ignition and proper burner lighting on compatible gas appliances. What it does:

• Routes and meters gas flow to the ignitor so the burner can light
• Supports consistent ignition timing for oven and range burners
• Commonly used when an oven won't light, has weak or uneven flames, or ignition failures occur
• Helps prevent gas leaks by providing a secure connection when installed correctly

• Disconnect power and shut off the gas supply before starting any work
• Only install on compatible appliances; follow the OEM instructions
• Hand-tighten connections and check for leaks with a soapy-water solution after restoring gas

This assembly includes the spark ignitor and gas orifice for a single stovetop burner element. Replace if the burner won't light, produces yellow flames instead of blue, or takes multiple attempts to ignite.

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Controls gas flow to your range oven burners. Replace if the valve is leaking, won't shut off completely, or has damaged threads or connections.

This replacement surface burner restores stovetop heating for electric ranges, providing a direct, reliable heat source for pots and pans. Designed to match the original element shape and fit for a straightforward swap. What it does:

• Heats cookware on the cooktop so you can boil, simmer, and sauté
• Replaces a cracked, warped, or non-heating burner element
• Addresses symptoms such as little or no heat, intermittent heating, or uneven hot spots
• Works with the existing burner receptacle and cooktop cutout when the correct element is used

• One round surface burner element

• Disconnect power to the range before servicing to avoid electrical shock
• Remove the cooktop or lift the burner assembly per your model's service instructions
• Align and seat the element into the socket, then secure any mounting clips or screws as originally installed

Replace a cracked, damaged, or missing baffle in your gas range. This structural component installs inside the oven cavity to direct airflow properly.

Broiler won't light or heat? This range broil ignitor ignites the top broiler burner. Common fix when broiler fails to start or brown food properly.

The Ignitor is an OEM replacement part for Frigidaire gas ranges. Located near the burner heads, this component is responsible for generating the electric spark required to light stove top burners.

Symptoms of a faulty ignitor include:

• Burners that will not light or only light intermittently
• Clicking noises but no flame ignition
• Diminished or no spark from the ignitor itself

Causes of ignitor failure can be an accumulation of deposits over many heating cycles. Physical damage from pots/pans is also possible. As electrical parts, ignitors have a limited lifespan depending on range usage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Gas burner orifice jets meter fuel flow to range and oven burners. Replace when damaged, worn, or missing to restore proper flame size and heat control.

Burner orifice regulates gas flow to your range burners. Replace if clogged with debris, corroded, or damaged to restore proper combustion and heat output.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Converts your gas range from natural gas to LP (propane) fuel. Includes orifices and components for burners and oven. Replace when switching fuel types.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Fix intermittent power or control issues in your gas range with this wiring harness. Restores electrical connectivity between components. DIY repair.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
