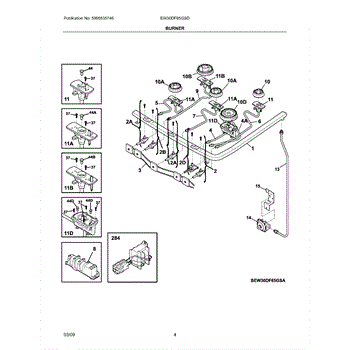

Parts for Electrolux EW30DF65GSD: 05 - Burner Parts

This genuine wiring harness connects and routes power and signals between refrigerator components to restore reliable electrical connections and component control. It replaces damaged or worn wiring to stop intermittent faults and loss of function. What it does:

• Carries power and signal between fridge modules and components for normal operation
• Replaces frayed, burned, or broken wires and damaged connector ends
• Helps stop intermittent component failures, no-power conditions, and electrical arcing
• Restores secure plug-and-play connections for affected circuits

• One complete harness assembly as shown

• Disconnect power to the appliance before starting any work
• Follow OEM routing and secure with existing clips; avoid pinching or sharp edges
• Match connector shapes and colors; do not force connectors to fit

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Burner base includes orifice and ignitor.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Burner base includes orifice and ignitor.

This transformer supplies the low-voltage power needed by an appliance's control system so the user interface and control board operate correctly. Replaces a worn or failed transformer to restore proper control voltage and reliable operation. What it does:

• Converts incoming line voltage to the lower control voltage used by the appliance's control board and display.
• Common symptom: control panel or display is dim, blank, or intermittently responsive.
• Common symptom: control functions (timers, cycles, lights) fail or reset unexpectedly.
• Helps stabilize control voltage to prevent erratic electronic behavior.

• One transformer

• Disconnect all power (unplug or shut off breaker) before accessing internal components.
• Observe proper wiring and polarity; match connections to the original transformer and secure terminal fasteners.
• Use appropriate mounting hardware and strain reliefs; avoid pinching or exposing wires.

This replacement shield is a molded protective cover that helps keep appliance wiring and internal components safe from heat, moisture and accidental contact. It restores the appliance's original protection and helps maintain reliable operation. What it does:

• Covers and protects wiring, terminals or control components from debris and direct heat
• Prevents accidental contact with live parts during normal use
• Helps reduce the risk of shorting or damage from loose debris
• Restores the appliance's factory shielding to reduce noise from vibrating parts

• One replacement shield

• Disconnect power before servicing to avoid shock risk
• Handle carefully; edges may be sharp and clips or tabs can be brittle on older units
• Retain and reuse factory fasteners when possible; replace broken clips with OEM parts
• Verify proper alignment and secure fit so the shield does not contact moving parts

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
