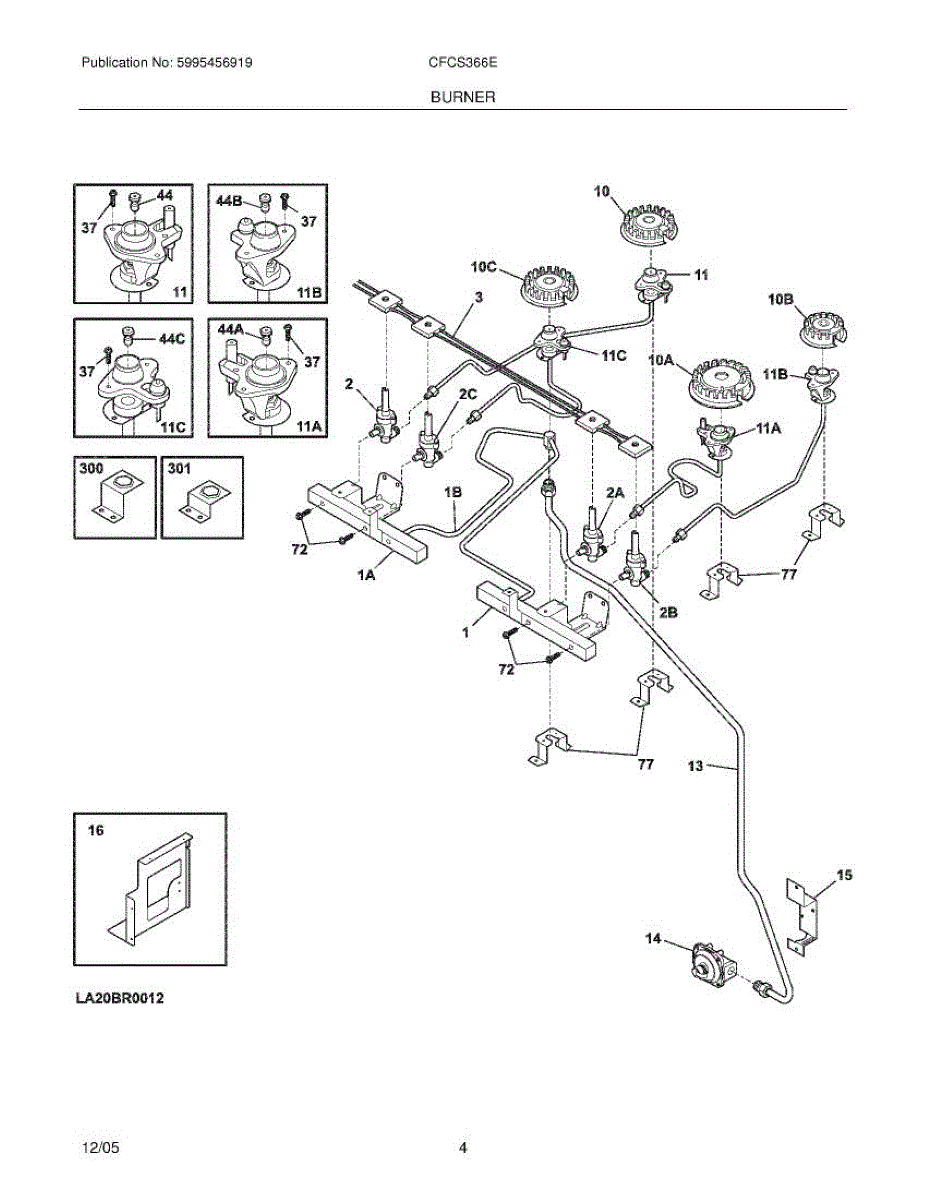

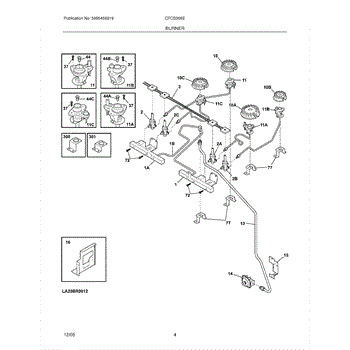

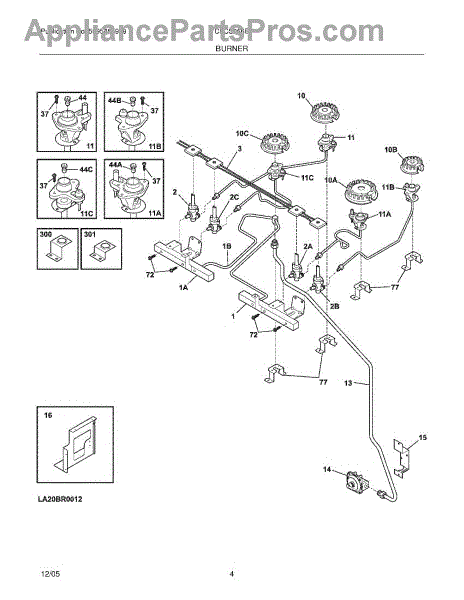

Parts for Frigidaire CFCS366ES2: 05 - Burner Parts

This top burner gas valve controls gas flow to a single cooktop burner, restoring proper flame control and allowing safe ignition and adjustment. It's designed as a direct replacement part for compatible gas ranges. What it does:

• Regulates gas to one top/burner for steady flame control
• Helps resolve symptoms like burner failing to light, weak or inconsistent flame, or inability to adjust flame level
• Works with the burner orifice and valve stem assembly to modulate gas flow
• Intended for use only on compatible range models and configurations

• Turn off gas supply and disconnect power before servicing
• Use proper fittings and torque; inspect connections and test for leaks with a gas leak solution after installation

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A replacement bake ignitor assembly that provides the hot surface needed to ignite the oven's gas burner for consistent baking and broiling. Replaces a worn or cracked ignitor to help restore normal oven heating. What it does:

• Heats to a high temperature so the oven's gas valve can ignite the burner
• Common symptom: oven won't heat or take much longer than normal to preheat
• Common symptom: burner fails to light even when controls are set correctly
• Works with the oven's safety and gas valve system to allow reliable ignition

• Disconnect power and shut off the gas supply before beginning any repair
• Handle the ceramic ignitor tip carefully; avoid touching it with bare hands
• Verify proper electrical connector and mounting fit before final installation

For 5k burner.

For 12k burner.

For 9.5k burner.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

This wiring harness routes power and signals between a refrigerator's control board and major components, restoring reliable electrical connections for proper operation. Use it when connectors are damaged or wiring is worn. What it does:

• Carries power and control signals between the main control and components
• Replaces burned, frayed, or broken wire runs that cause intermittent or no component operation
• Restores secure connector interfaces to fix flickering lights, non-running fans, or no cooling symptoms
• Preserves correct wiring routing to prevent shorts and maintain safe operation

• One wiring harness assembly as shown

• Always disconnect power to the appliance before starting work
• Handle connectors gently; match keyed plugs and secure all mating clips
• Route harness along original paths and secure with existing clips or ties to avoid pinching
• Replace any damaged connectors or terminals to ensure a reliable connection

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
