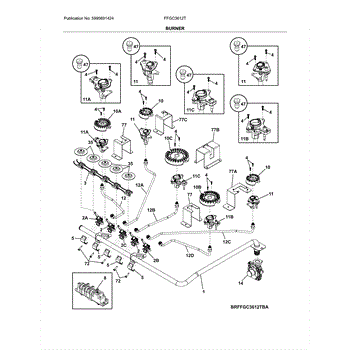

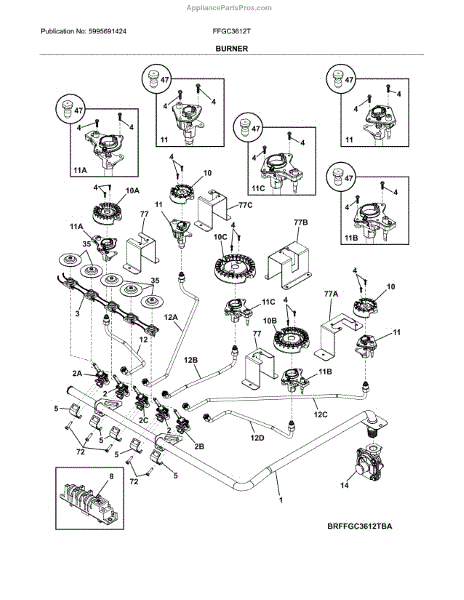

Parts for Frigidaire FFGC3612TWA: Burner Parts

The Surface Burner Valve is an OEM replacement part for Frigidaire cooktops. It is a crucial component that regulates the flow of gas to the individual surface burners on the cooktop. Each burner has its own valve, which allows precise control over the flame size and heat output.

Symptoms of a bad Surface Burner Valve include:

• Difficulty igniting or maintaining a consistent flame on the burner
• Uneven or flickering flame
• Burner not reaching desired heat levels
• Gas smell or leaks around the burner area

Causes of a bad surface burner valve can include general wear and tear over time, debris buildup or clogging, or physical damage to the valve or related components. Exposure to high heat or improper maintenance can also contribute to valve failure.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktop models.

This solenoid-operated water inlet valve controls the flow of household water into the dishwasher during fill. A working valve ensures the tub fills to the proper level for effective cleaning and stops water when the cycle ends.

• Opens and closes as signaled by the control to admit water into the tub
• Regulates fill rate/level; seals to prevent unwanted filling between cycles
• Failure symptoms can include no fill, slow fill, overfilling, or leaks at the valve/inlet area
• May trigger fill-related error or unusually long fill times

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water; relieve line pressure slowly
• Note wire harness and tubing orientation; take a photo for reference
• Use approved thread sealant/tape if specified by the manufacturer; check for leaks after installation and run a fill test

The Burner Valve is an OEM component specifically designed for Frigidaire cooktops. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Symptoms of a bad burner valve can include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Causes of a bad burner valve include wear over extended usage periods, damage from water, or gas blockage impeding operation.

This OEM Frigidaire replacement is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.

The Valve is an OEM part for Frigidaire cooktops. It functions as an important component within the gas supply system that controls the flow of fuel between various points during each heating cycle. The valve works closely with the burner assembly and gas manifold to maintain consistent temperatures by facilitating proper circulation of gas throughout the system.

Symptoms of a bad valve include:

• Uneven or intermittent heating of burners
• Burners that are difficult to light or stay lit
• Smelly gas odor coming from the range when in use
• Damage to other gas supply components requiring replacement

Causes of a bad valve can include mineral buildup over time restricting flow, failure of internal rubber seals preventing a tight seal, or issues in the valve's opening and closing mechanism.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement switch assembly restores the control switch that sends power to the appliance's heating element or circuit, helping return normal control and reliable operation to the unit. What it does

• Replaces a worn or faulty control switch that interrupts or delivers power to heating elements or control circuits
• Common symptom: element or circuit will not heat or respond when a control is set
• Common symptom: intermittent operation or loss of control at a particular setting
• Used to regain consistent power control without replacing larger control modules

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle terminals and wiring with care; avoid bending or stressing connector pins.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replacement mounting bracket that secures internal appliance components to the cabinet or frame, restoring proper alignment and support. Helps reduce rattling and prevents loose or sagging parts for safer, quieter operation. What it does:

• Secures components or assemblies to the appliance frame to maintain proper alignment.
• Reduces movement and vibration that commonly cause rattling or intermittent contact.
• Helps prevent sagging or misalignment of attached parts that can affect operation.
• Simple, passive part — no electrical function.

• Disconnect power (and water, if applicable) before starting any repair.
• Use appropriate hand tools; inspect mounting holes and fasteners for damage or corrosion.
• Replace only the damaged bracket; do not overtighten fasteners to avoid cracking.

This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner replaces a worn or damaged unit on your range to restore reliable, even heat. Swap it in to correct poor performance caused by cracks, corrosion, or blockages so cooking results return to normal.

• Provides the heat source for a cooking zone on the range
• Common fix for damage, warping, or clogged ports/passages
• Symptoms include won't light/heat, weak or uneven heating, or irregular/yellow flame on gas models
• Visible rust, cracks, or deformation indicate replacement is needed

• Disconnect power; for gas models, also shut off the gas supply. Allow the appliance to cool completely
• Remove grate/cap or unplug element as applicable; take out screws/retainers to lift off the old burner
• Transfer reusable items from the original part (such as cap, electrode/igniter, and screws) if required by your model
• Align correctly and tighten fasteners evenly; restore utilities and test for proper operation

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly directs gas flow to the oven/burner igniter for reliable ignition and consistent flames. It replaces worn or clogged orifice parts to restore normal ignition performance. What it does:

• Regulates and channels gas to the igniter so the burner/oven will light
• Helps produce a steady, consistent flame for proper cooking temperatures
• Common repair when a burner or oven fails to ignite or has weak flame
• Prevents irregular ignition caused by damaged or blocked orifice passages

• One ignitor orifice assembly

• Turn off the appliance power and shut off the gas supply before starting
• Inspect fittings and seals for damage and test for leaks after installation (use approved leak-detection methods)
• Use appropriate tools and follow the appliance service manual for removal and reassembly

This ignitor orifice assembly replaces the oven's burner ignition component to help light the gas burner reliably and restore normal oven ignition. Designed to match OEM fit and function on compatible Frigidaire gas ovens. What it does:

• Provides the ignition pathway so the burner lights when the oven calls for heat
• Directs and meters gas at the burner ignition point for consistent ignition
• Addresses symptoms like the oven failing to light, delayed ignition, or intermittent ignition
• Works with the oven's safety and control systems to enable normal burner operation

• Shut off gas supply and electrical power before servicing; verify both are off
• Only install in gas ovens that use this specific assembly;

This ignitor orifice assembly routes and meters gas to the oven burner so the ignitor can light the appliance reliably. Replaces a worn or damaged orifice assembly to help restore consistent ignition and safe burner operation. What it does:

• Controls gas flow to the oven burner so the ignitor can light the flame
• Helps ensure a steady, consistent ignition and proper burner operation
• Commonly replaced when ignition is slow, inconsistent, or the burner won't stay lit
• Matches OEM design for fit and function in compatible gas ranges

• One ignitor orifice assembly

• Turn off gas supply and unplug the appliance before starting work
• Follow the appliance manufacturer's service manual for proper removal and installation
• Use appropriate tools and avoid overtightening fittings to prevent leaks

This ignitor orifice assembly replaces the spark electrode and matched gas orifice that lights the burner, restoring reliable ignition for gas ranges and ovens. Designed to align the spark with the burner for consistent lighting. What it does:

• Provides the spark electrode and precisely sized orifice that allow gas to ignite at the burner
• Re-establishes consistent ignition when a burner or oven fails to light
• Helps stop intermittent clicking or delayed ignition caused by a worn or misaligned ignitor
• Works with the burner to produce a steady, even flame when functioning properly

• Turn off the appliance power and shut off the gas supply before starting work
• Basic hand tools are typically required; handle the electrode carefully to avoid damage
• Ensure the assembly is seated and aligned exactly as the original to maintain correct spark gap

This replacement tube routes water from the refrigerator's supply to the ice maker and dispenser so the ice maker fills properly and the dispenser delivers water. It restores proper water delivery when the original tube is cracked, bent or clogged. What it does

• Carries water from the internal supply line to the ice maker and dispenser
• Replaces cracked, kinked or deteriorated tubing that can restrict flow or leak
• Helps stop intermittent filling or slow water flow to the ice maker
• Prevents leaks and water damage caused by split or brittle tubing

• Disconnect power and shut off the household water supply before starting.
• Remove interior panels as needed to access the tubing and note routing before removal.
• Use proper fittings and tighten to OEM torque; replace any worn O-rings or clamps.
• After installation, restore water and power, then check all connections for leaks and verify ice maker/dispenser operation.

The Tube is an OEM part for Frigidaire cooktops. It is responsible for delivering gas to the burners, allowing for efficient and controlled heat distribution during cooking.

A bad tube can be caused by wear and tear, damage, or clogs that obstruct the gas flow. Signs of a faulty burner tube include weak or uneven flames, gas leaks, or difficulty in igniting the burners.

Symptoms of a bad tube can include:

• Weak or inconsistent flames
• Smell of gas or hissing noises near the burners
• Difficulty in igniting the burners

Replace your worn-out or damaged tube with this genuine OEM part to restore your cooktop. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Regulator is an OEM part for Frigidaire cooktops. It is responsible for regulating the flow and pressure of gas entering the appliance, ensuring safe and efficient operation.

A bad regulator can be caused by faulty internal components, wear and tear over time, or damage due to improper handling. Signs of a faulty regulator include uneven heating, weak flame, or gas leaks.

Symptoms of a bad regulator can include:

• Uneven heating of burners or oven
• Weak or inconsistent flame
• Gas leaks around the regulator

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Bushing is an OEM part for Frigidaire cooktops. This part serves as an interface between the control knob and the appliance, ensuring smooth operation and protecting both the knob and the control panel from wear and tear. The bushing fits snugly around the valve's stem, reducing friction and providing stability as the knob is turned to adjust the heat settings of the cooktop.

Causes of a bad Bushing can include degradation from frequent use, exposure to high heat, or accidental damage during cleaning or use, which can lead to the bushing becoming loose or worn out.

Symptoms of a malfunctioning Bushing include:

• Loose-feeling knobs that wobble or are difficult to turn
• Excessive wear or visible damage to the knob or panel area
• Difficulty in achieving precise temperature control
• Unusual noise when turning the knobs

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This bracket provides a secure mounting point for the appliance's internal or external component, restoring proper alignment and support. Replaces worn, bent, or broken brackets to reduce vibration and prevent loose panels. What it does:

• Secures panels or components to the appliance frame for stable operation
• Restores proper alignment to eliminate rattling or shifting parts
• Prevents stress on adjacent fasteners and components that can cause wear
• Serves as a direct replacement for the OEM bracket when damaged

• Bracket

• Disconnect power and water before beginning any repair
• Use the correct-size fasteners and mounting holes; do not force the part into place
• Wear gloves to protect hands from sharp edges and use caution when handling metal parts
• After installation, verify panels/components are aligned and the appliance operates normally

A simple metal mounting bracket that secures appliance components and keeps them aligned for reliable operation. Replaces a worn or damaged bracket to restore proper support and reduce rattling or movement. What it does:

• Provides a secure mounting point for internal components such as panels, assemblies, or modules
• Keeps parts aligned to prevent rubbing, vibration, or noise during operation
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps maintain safe spacing and positioning of components to avoid interference

• One mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver, nut driver) as required; retain original fasteners unless replacement is specified
• Handle edges carefully—brackets and surrounding sheet metal can be sharp
