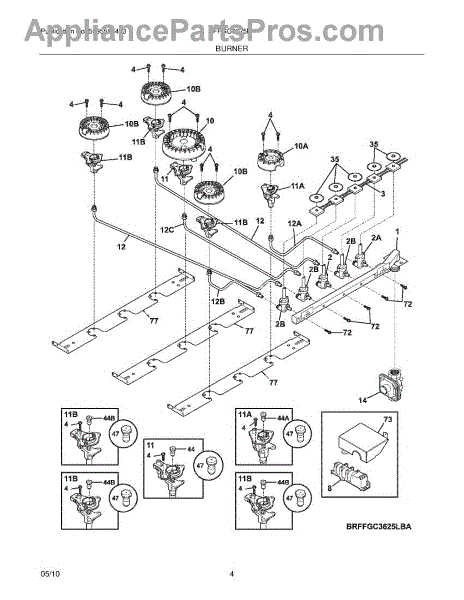

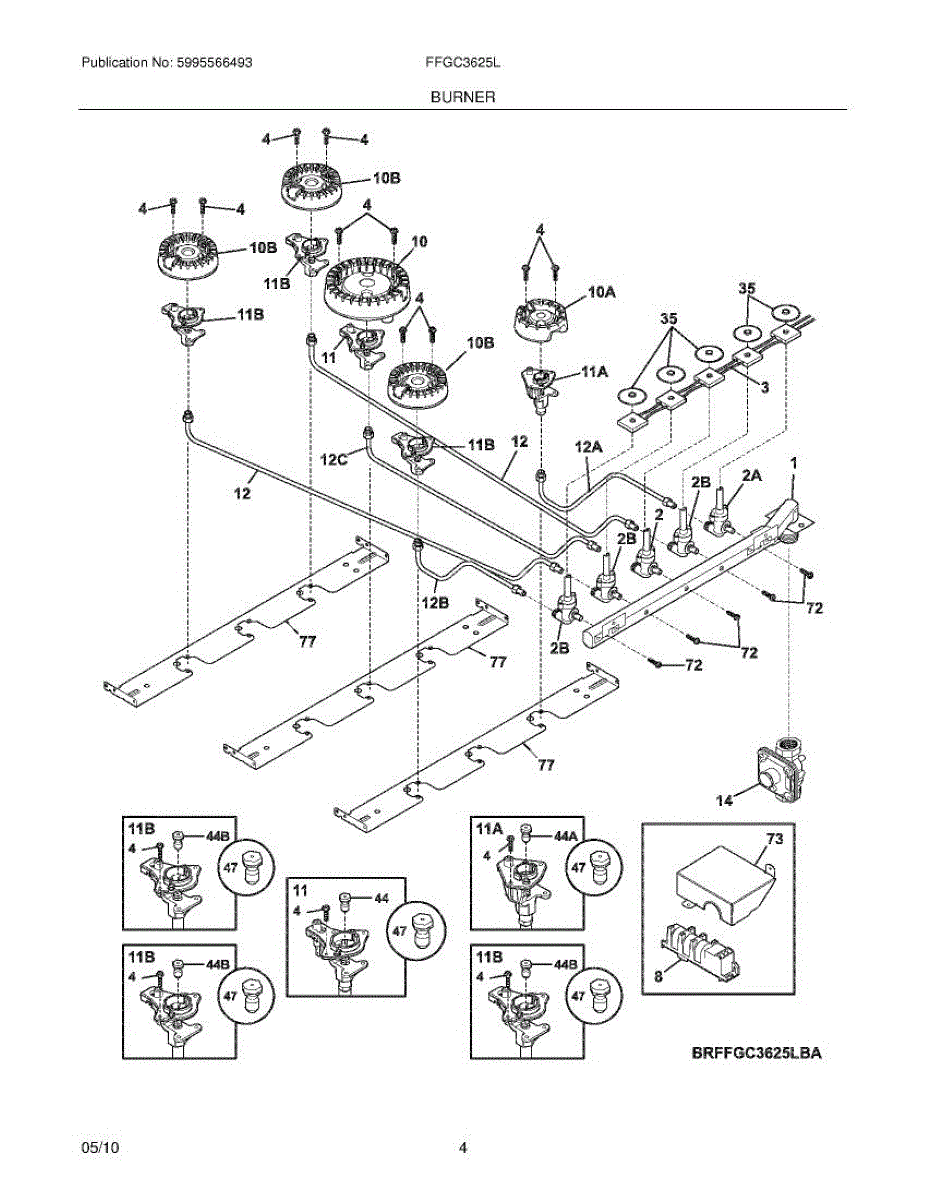

Parts for Frigidaire FFGC3625LSA: 05 - Burner Parts

If your burner won't light or the flame is too high or too low, this gas valve controls flow to restore proper ignition and flame adjustment on your cooktop.

This wiring harness routes power and signals between a refrigerator's control components and electrical devices, restoring reliable electrical connections for operation and controls. It replaces a damaged or broken harness to help regain normal appliance function. What it does:

• Connects control board, sensors, lights, and other electrical components to provide power and signal paths
• Replaces frayed, burnt, or damaged wiring that can cause intermittent or complete loss of function
• Helps resolve symptoms such as lights or dispenser not working, erratic controls, or failure of specific features tied to wiring
• Restores proper connector fit and secure electrical contacts when original harness pins or wires are compromised

• One wiring harness as shown

• Always disconnect power to the appliance before starting any repair
• Match connector shapes and wire colors to the original harness; route along original paths and secure with clips or ties
• Inspect mating connectors and control board terminals for damage before installing the new harness

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

Gas burners won't ignite or igniter clicks continuously? The spark module generates the electrical spark to light burners. Direct plug-in repair.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

This ignitor orifice assembly routes gas to the oven igniter so burners light reliably. It replaces a damaged or clogged orifice to restore consistent ignition and safe burner operation. What it does:

• Directs gas flow from the manifold to the igniter/pilot so the burner can light
• Helps restore proper ignition when the burner sparks but fails to light
• Replaces corroded, clogged, or damaged orifice hardware that can weaken flame
• Works with standard oven/range ignition systems that use a separate orifice assembly

• One ignitor orifice assembly

• Turn off gas supply and disconnect power before attempting service
• Basic hand tools required; avoid overtightening fittings to prevent damage
• Check for gas leaks with a non-corrosive leak detector after installation

Combines spark igniter electrode with orifice holder for gas surface burners. Replace when cracked, broken, or no longer securely holding components in place.

This component creates the spark to ignite gas burners and includes the gas orifice for proper fuel delivery, located beneath each surface burner. Replace if the burner won't light, takes excessive time to ignite, or produces an irregular flame pattern.

This rigid water fill tube routes water from the supply to the ice maker or dispenser, helping deliver a steady water flow and preventing leaks when properly installed. It restores reliable water delivery for ice production and dispensing. What it does:

• Directs water from the inlet toward the ice maker or dispenser assembly
• Maintains a sealed pathway to prevent drips and leaks
• Helps ensure proper ice maker fill and consistent dispenser flow
• Faulty or cracked tubes can cause leaks, reduced water flow, or no ice production

• One replacement water fill tube

• Disconnect power and shut off the water supply before starting work
• Replace with the exact part to ensure fit and sealing; use new clamps or seals if required
• Inspect nearby fittings and lines for damage and test for leaks after reconnecting water

This gas regulator controls fuel pressure to the oven/range burner for steady ignition and consistent heat. Replaces a worn or faulty regulator to help restore proper gas flow and reliable burner operation. What it does:

• Regulates incoming gas pressure to the range/oven burner system
• Helps maintain consistent flame for even cooking and steady ignition
• Can resolve symptoms like weak or uneven flames, burner ignition problems, or loss of heat
• Works as the pressure-control component in the appliance's gas supply path

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate fittings and gas-rated sealant; check all connections for leaks after installation
• Do not operate the appliance if you detect the smell of gas; ventilate.

Gas burner orifice meters fuel flow to the cooktop burner. Replace if cracked, damaged, or when converting between natural gas and LP propane.

Burner orifice controls gas and air flow to cooktop burners. Replace if cracked, corroded, or when converting between natural gas and propane fuel types.

Burner orifice for gas ranges and cooktops. Controls gas flow to burner. Replace if cracked, corroded, or when converting between natural gas and propane.

Gas conversion kit for cooktops. Includes orifices and fittings needed to convert your cooktop from natural gas to LP or vice versa. Essential for setup.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Specs: 10-32 X 0.375

Specs: 10-32 X 0.375

Wiring harness for cooktops. Connects electrical components within the cooktop assembly. Replace if wires are frayed, connectors are damaged, or broken.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

Wiring harness for cooktops. Connects electrical components within the cooktop assembly. Replace if wires are frayed, connectors are damaged, or broken.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.
