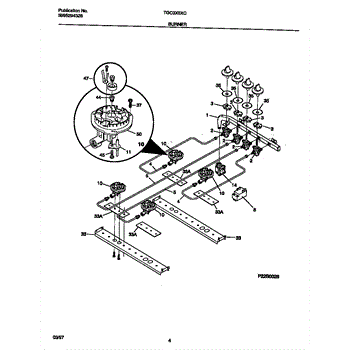

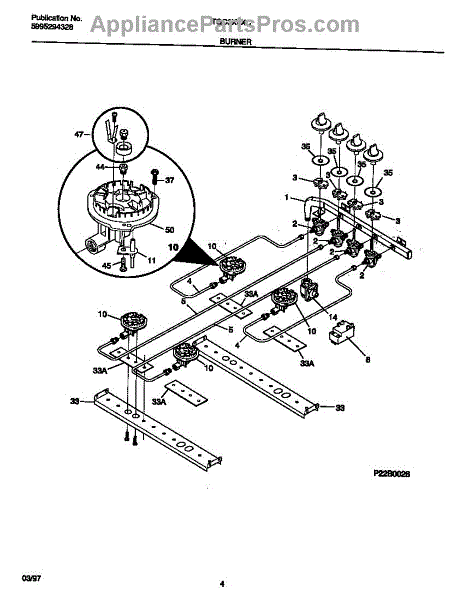

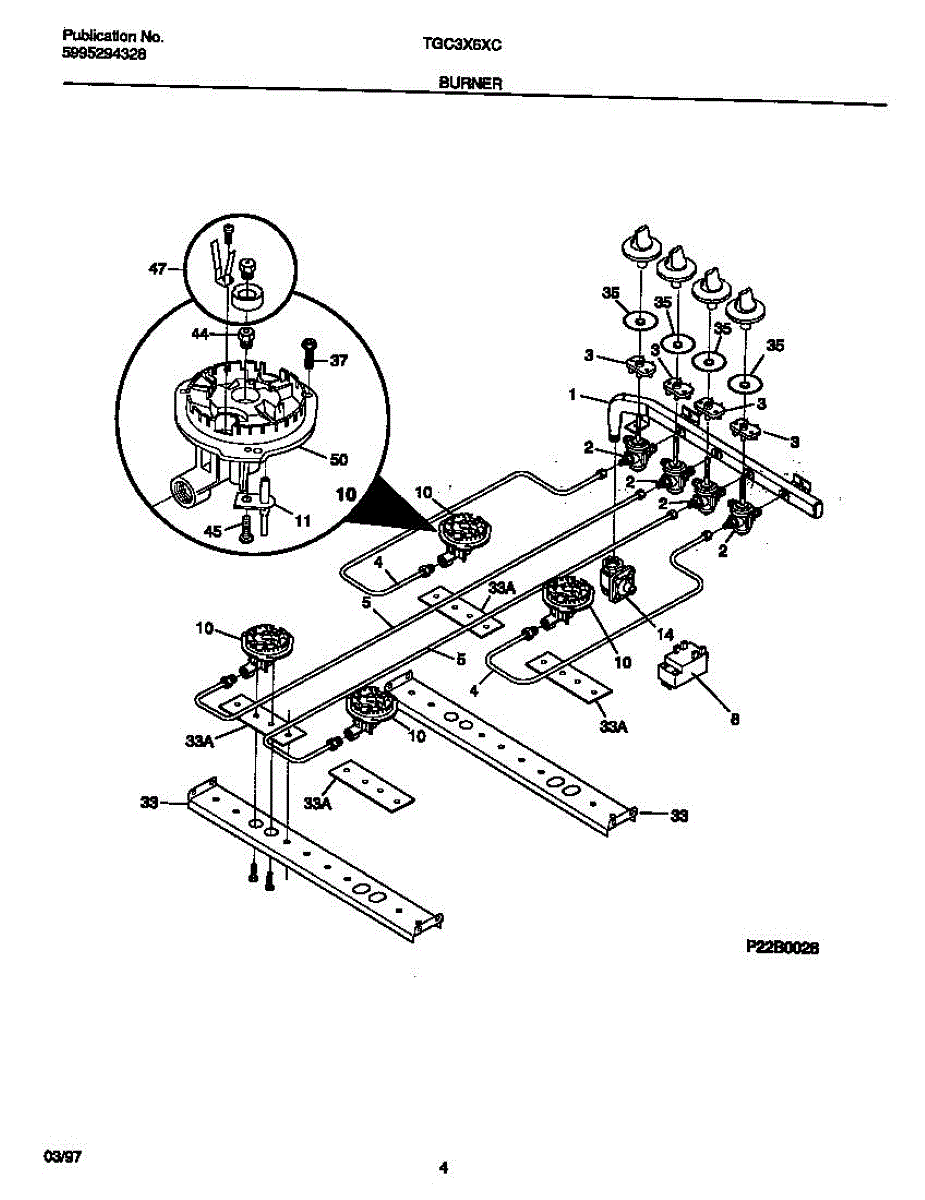

Parts for Frigidaire TGC3X6XCS2: 03 - Burner Parts

This replacement 10-24 x 3/8 machine screw secures panels, brackets, and small components in compatible Frigidaire appliances. It restores proper fastening where a missing or damaged screw allows parts to shift or rattle. What it does:

• Fastens metal or plastic appliance parts such as trim, brackets, or small assemblies
• Helps eliminate movement, rattling, or loose connections caused by missing or stripped screws
• Restores safe, secure mounting for controls and hardware
• Matches OEM size for proper fit in designated threaded holes

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or nut driver to avoid stripping the head
• Start threads by hand to ensure alignment; tighten until snug — do not over-tighten
• Replace any stripped mating hardware or use correct thread engagement for secure fit

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Top Igniter Electrode is an OEM replacement part for Frigidaire gas ranges. This part provides the spark to ignite the surface burners.

Causes involve repetitive heat stresses and deterioration of internal wiring over extended use. Corrosion from possible gas or moisture intrusion may also degrade electrode performance.

Symptoms of a faulty top igniter electrode include:

• Burners failing to light or stay lit during cooking
• Potential gas leaks or explosions from unlit burners
• Difficult relighting requiring extended holds of ignition buttons

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This pressure regulator controls gas flow to the range valve, helping maintain steady burner operation for safe, consistent flames. It replaces a worn or failed regulator to restore proper gas delivery and reliable ignition performance. What it does:

• Regulates incoming gas pressure to the range's control valve for steady burner flames
• Helps correct issues like weak or uneven flames and burners that struggle to light
• Reduces risk of high-pressure surges that can affect burner performance
• Works as a direct replacement when the existing regulator is faulty or leaking

• Turn off the gas supply and power before starting any work; always follow appliance shutoff procedures
• Inspect fittings and seals; use proper thread sealant for gas-rated connections if required by the manufacturer
• After installation, perform a gas leak check and verify correct burner operation and flame appearance

This part has been discontinued and is no longer available.

A single gas burner orifice that meters fuel flow to a range or oven burner for consistent flame sizing and reliable cooking performance. Replaces a worn or clogged orifice to help restore steady ignition and even heat. What it does:

• Controls the amount of gas delivered to a burner for proper flame height and heat output
• Helps maintain consistent cooking and baking temperatures when functioning correctly
• A clogged or damaged orifice can cause weak or uneven flames, slow ignition, or poor heating
• Works as a small, precision-fit insert that sits in the burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use a wrench or socket sized to the orifice and avoid rounding the fitting
• Inspect burner ports and clean any debris before installing the new orifice

This replacement door gasket creates a tight seal around the refrigerator or freezer door to help maintain interior temperature and reduce energy loss. It restores proper door closure for better cooling and frost prevention. What it does:

• Seals the door perimeter to keep cold air in and warm air out
• Helps maintain consistent internal temperatures for food safety
• Reduces frost build-up and compressor runtime due to air leaks
• Restores proper door alignment and closing performance

• Remove old gasket and clean the door mating surface before installing the new gasket
• Start installation at a corner and work around the door to ensure an even fit
• Gasket may be warmed slightly (hot water or hair dryer on low, if needed) to improve flexibility for positioning
• Unplug or disconnect power to the appliance before beginning work

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
