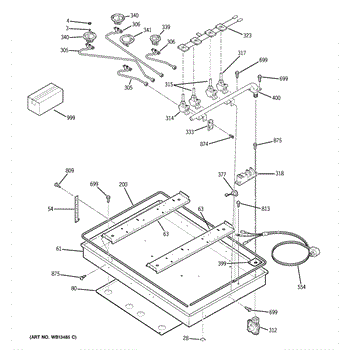

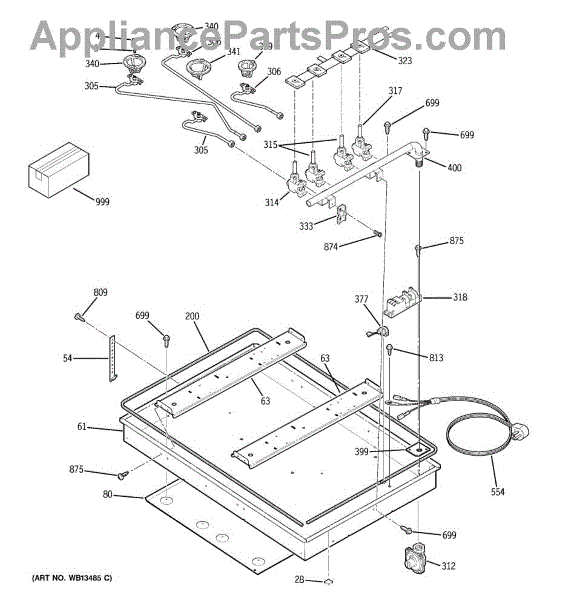

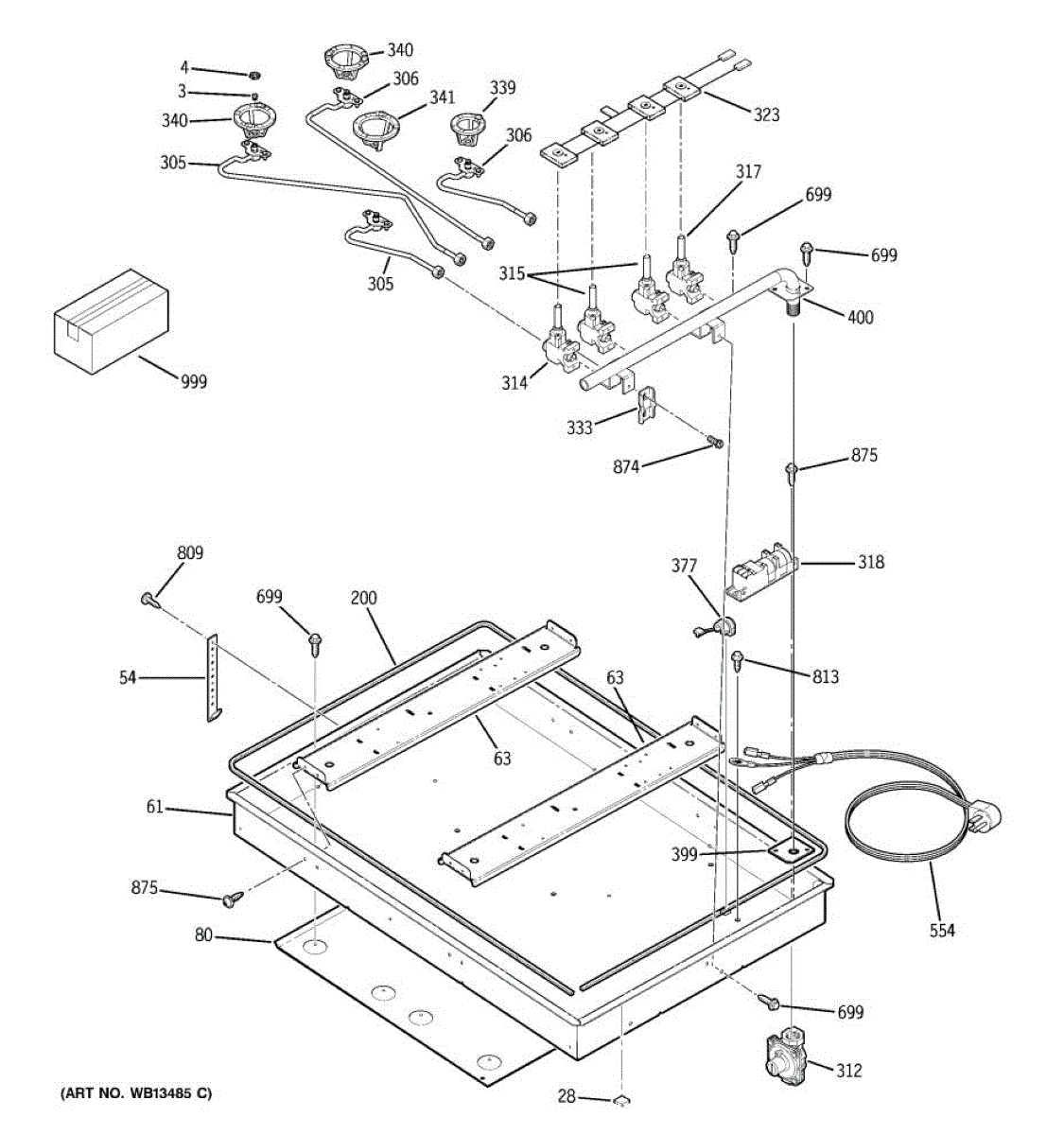

Parts for Ge JGP330CEK1CC: 02 - Burner Parts

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Replace worn felt pads that cushion your range door and prevent rattling or gaps. Essential when door closes unevenly or makes noise. Confirm fit with model.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

Replace worn cooktop foam seal tape to prevent heat loss and ensure proper insulation. Essential for maintaining energy efficiency. Verify fit with your model.

Left front burner won't light or regulate heat? This surface burner valve controls gas flow to your cooktop burner. Moderate DIY repair in 30-45 minutes.

Gas tube assembly for cooktop burner system. Delivers gas from valve to burner. Replace if cracked, damaged, or leaking to restore proper installation.

Gas pressure regulator for cooktops and ranges. Installs on the gas supply line to control flow to burners. Replace if cracked, leaking, or missing.

If your cooktop burner won't ignite or flame is uneven, this gas valve kit controls fuel flow to restore proper operation. Moderate DIY repair.

Fix burners that won't ignite or spark continuously. This spark module controls ignition for all surface burners. DIY repair in about 45 minutes.

The Harness Switch is an OEM replacement part for GE gas ranges. Internally wired to the electronic control board, it regulates power distribution to the burner ignitors.

When a surface knob is turned, the switch instantly routes electricity enabling the igniter to spark and ignite selected gas jets beneath cookware. Integrated temperature sensors then signal switch maintained burner activity.

Causes of failure relate to standard thermal cycling without damage. Accumulated grime could potentially disrupt connections over years of stovetop cooking particulates.

Symptoms include:

• Inability to light specific gas burners by knob selection
• Range may indicate error codes relating to unresolved ignition sequences.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures gas valve connections on your cooktop. Replace if loose, cracked, or causing gas leaks. Verify fit with your model number before ordering.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Right angle

Manifold seal for gas cooktops. Prevents gas leaks between manifold and burner assembly. Replace if damaged, cracked, or causing odors. Verify fit with your model number before ordering.

Replacement power cord for cooktops. Connects your cooktop to the electrical outlet. Replace if cord is frayed, damaged, or missing for safe operation.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement mounting screw for securing panels, trim, and brackets on ranges. Needed when original screws are missing, stripped, or damaged during repairs.

Black. 8-18 AB HXW 3/8

Replacement wire harness for gas cooktop burners. Restores electrical connections between igniter and spark module. Needed when wiring is damaged or worn.
