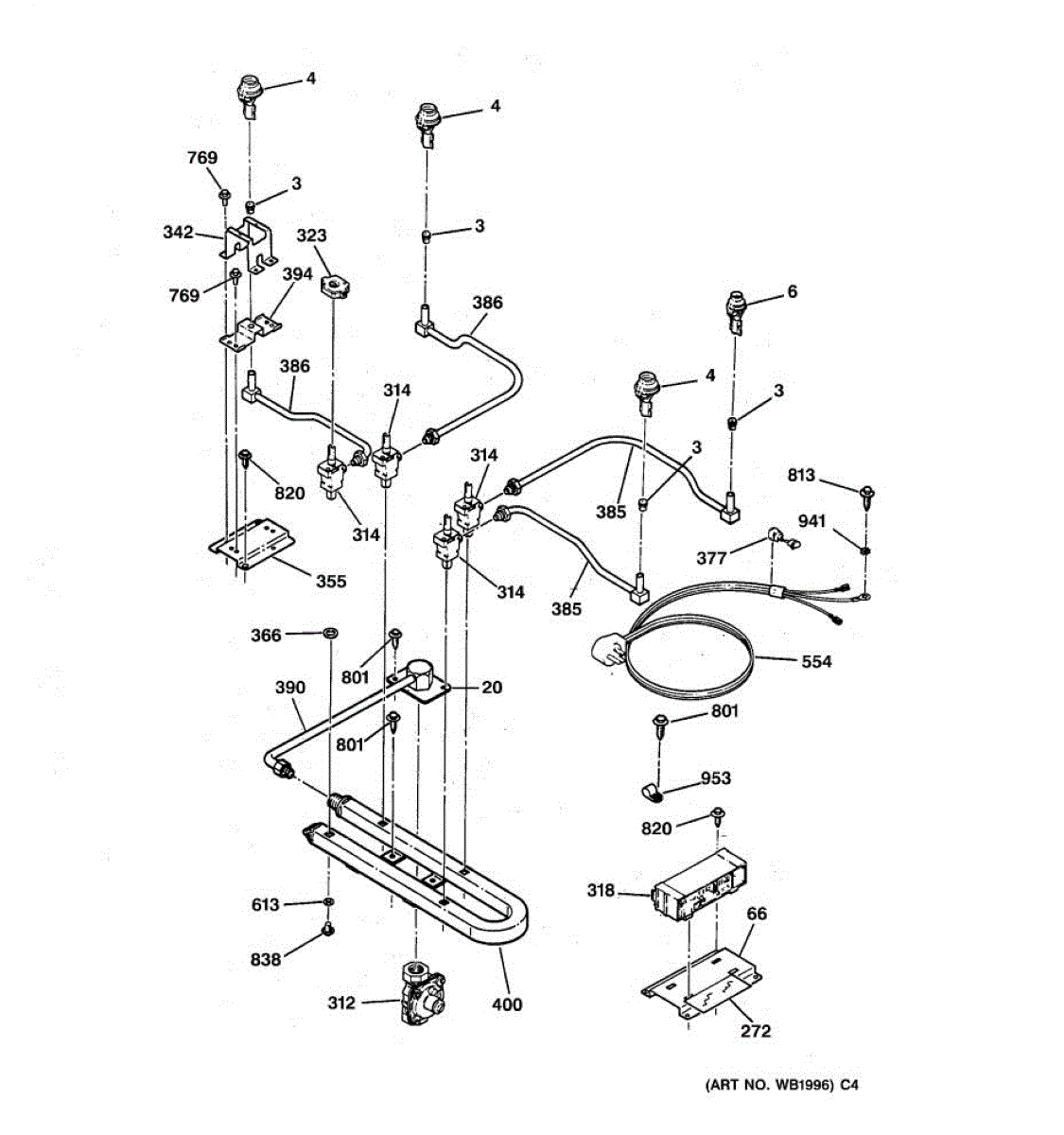

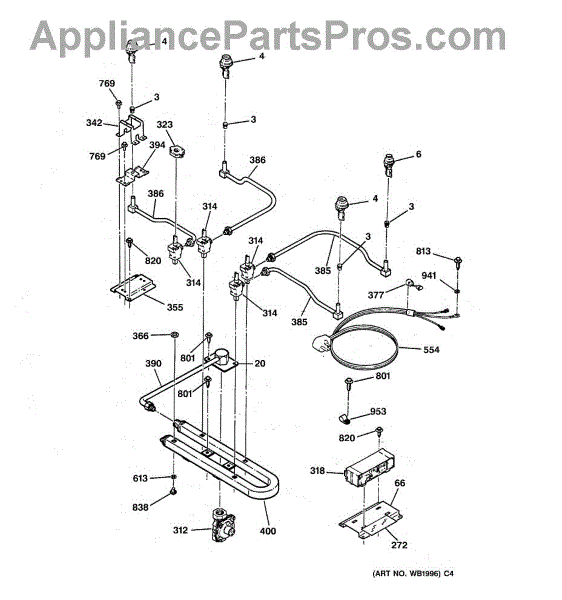

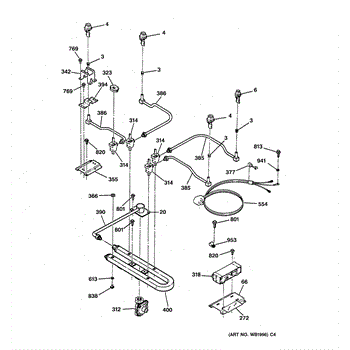

Parts for Ge JGP626AEV2AA: 02 - Gas & Burner Parts

This insulator protects and cushions the appliance control module, helping prevent electrical shorts and physical damage to the board. It's a simple replacement that supports reliable control operation. What it does:

• Separates the control/module from the chassis to prevent shorting and rubbing
• Cushions the module to reduce vibration-related connector issues
• Helps keep wiring and components positioned correctly for consistent electrical contact
• Can reduce intermittent control problems caused by loose or damaged insulation

• Disconnect power before beginning any repair to avoid shock or damage
• Access the control panel or console per your appliance's service instructions
• Fit the insulator under/around the module as shown in the parts diagram; ensure correct orientation and secure mounting hardware
• Avoid touching circuit board components; if connectors were removed, reseat firmly before reassembly

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

This switch mounts on the surface burner gas valve stem and closes the circuit to the spark igniters when you turn the knob. Replace a worn switch to restore reliable ignition and eliminate nuisance or no-click conditions.

• Activates the spark module for the selected burner when the knob is turned
• Common symptoms: no spark/click on that burner, intermittent lighting, or continuous clicking after flame is lit
• Helps correct single-burner ignition issues caused by a failed valve switch
• Typical wear item from use, heat, or moisture exposure around the cooktop

• Disconnect power and shut off gas before servicing
• Remove the burner knob and access the valve/switch at the manifold
• Note wire positions and transfer one at a time to the new switch
• Ensure the switch seats on the valve stem and test for proper spark before reassembly

Right angle

ST10-16 X 7/16"

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12
