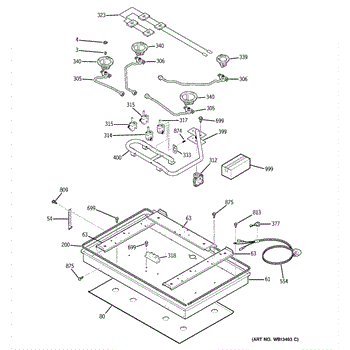

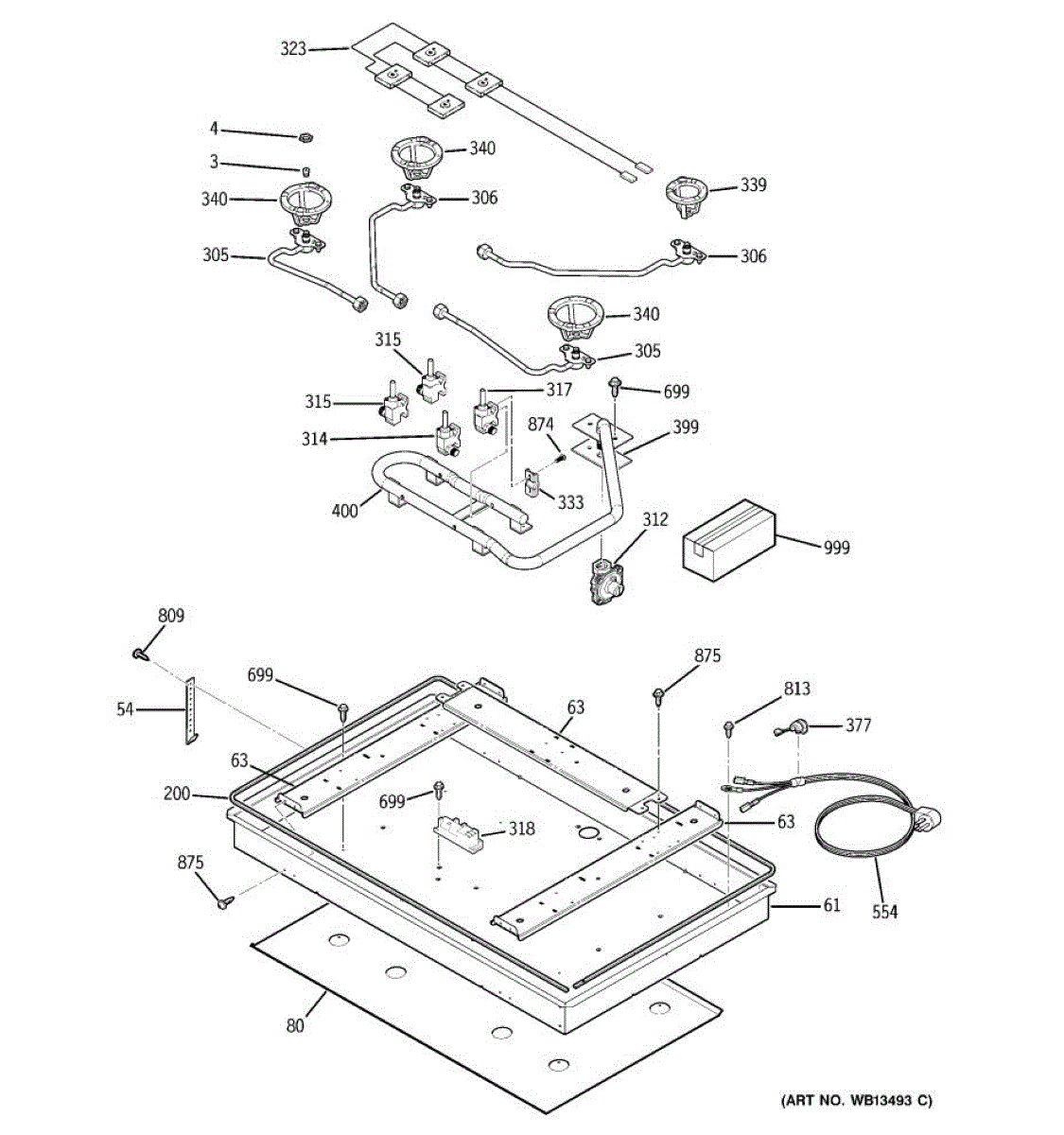

Parts for Ge JGP628CEK1CC: 02 - Burner Parts

Medium LP orifice

LP gas. SM .63mm

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

This burner support bracket secures and positions a cooktop or oven burner assembly so it stays aligned for consistent heating and safe operation. It replaces a worn or bent bracket to restore proper burner support and stability. What it does:

• Holds the burner or heating element assembly in the correct position
• Prevents burner movement that can cause uneven heating or contact with surrounding parts
• Helps maintain reliable electrical/gas alignment for safe operation
• Reduces vibration and wear on adjacent components

• Disconnect power and turn off gas supply before starting any repair
• Remove cooktop grates or oven access panels to reach the bracket
• Retain and reuse original screws/fasteners unless damaged; secure bracket firmly but avoid over-tightening

This right-rear tube assembly routes and secures the appliance's tubing at the rear of the cabinet, restoring a proper sealed connection and reliable flow where the original tube is damaged or leaking. What it does

• Replaces the right-rear tubing assembly that routes fluid at the back of the appliance.
• Restores a sealed connection to stop leaks and prevent water damage.
• Re-establishes correct routing to avoid kinks or strain on adjacent fittings.
• Supports proper operation of linked components by maintaining a secure fluid path.

• One tube assembly (right rear) as shown

• Disconnect power and turn off the water supply before beginning work.
• Inspect and clean mating fittings; replace damaged clips or fasteners as needed.
• Ensure tubing is routed without kinks and fittings are tightened to manufacturer torque recommendations.
• After installation, restore water and power, then check all connections for leaks.

This rear light tube assembly replaces a broken or burnt refrigerator interior lamp to restore even illumination in the rear compartment. Designed to fit the OEM lamp housing and connect to the existing socket for straightforward replacement. What it does:

• Provides rear compartment lighting so you can see food and controls clearly.
• Replaces cracked, chipped, or non-lighting tubes that cause dim or no illumination.
• Works with the factory lamp housing and wiring to restore proper light output.
• Helps resolve flickering or intermittent rear lighting when tube or filament has failed.

• One rear light tube assembly

• Disconnect power before starting any work.
• Handle glass tube carefully; wear gloves and eye protection to avoid cuts.
• Remove light cover or housing per your model's instructions to access the tube.
• Reinstall cover and restore power; test the light before finishing reassembly.

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spark module controls ignition for your range's surface burners. When you turn a burner knob, it generates the high-voltage spark the electrodes need to ignite the gas quickly and consistently.

• Generates high-voltage pulses to the surface igniters to light the burner flame
• Activates when a burner switch/knob calls for ignition
• Routes spark output to the cooktop electrodes for reliable lighting
• Common failure signs: no spark on one or more burners, intermittent/weak spark, or continuous clicking

• Unplug the appliance and shut off the gas supply; allow the cooktop to cool
• Access the module per your model (often under the cooktop or behind a rear panel)
• Label and transfer wires one at a time from the old module to the new; ensure a solid ground and secure mounting
• Reassemble, restore power and gas, and test each burner for proper ignition

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

Right angle

This seal manifold is the molded gasket that seals the connection between the manifold and valve assembly, preventing leaks and ensuring proper flow. It restores a watertight/gas-tight seal where the manifold meets the control valves. What it does

• Seals the joint between the manifold and valve assembly to prevent fluid or gas leaks.
• Helps maintain correct pressure and flow through the manifold and valves.
• Addresses symptoms such as visible leaks, strong odors, or intermittent flow/operation around the manifold area.
• Restores reliable sealing after manifold or valve service or when the original seal is damaged.

• Before you start, disconnect power and shut off water or gas supply as applicable to the appliance.
• Replace only with the matching OEM part and ensure mating surfaces are clean and dry for a proper seal.
• Tighten manifold fasteners evenly to the manufacturer's guidance to avoid distortion (follow OEM torque/sequence if available).

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8
