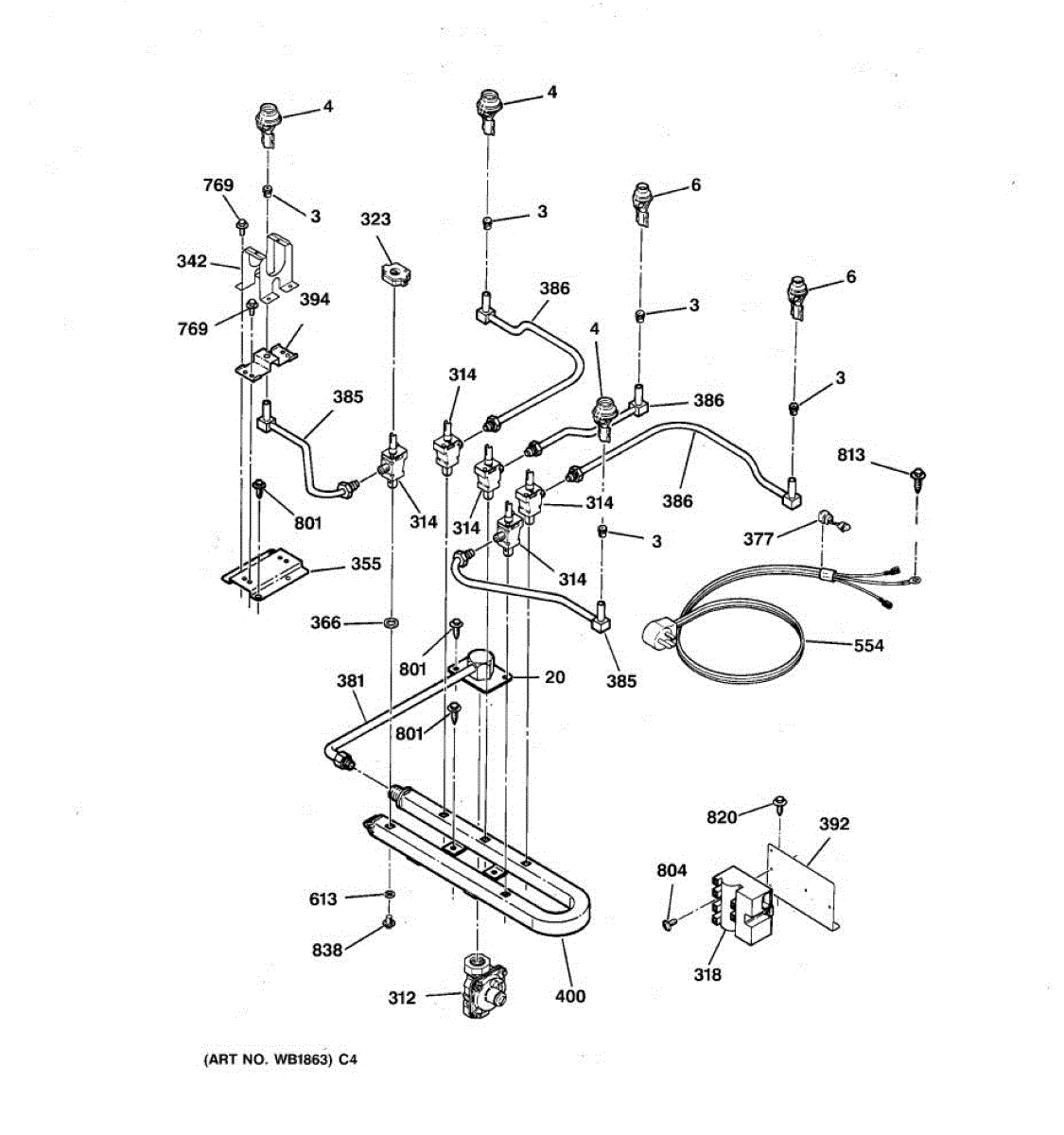

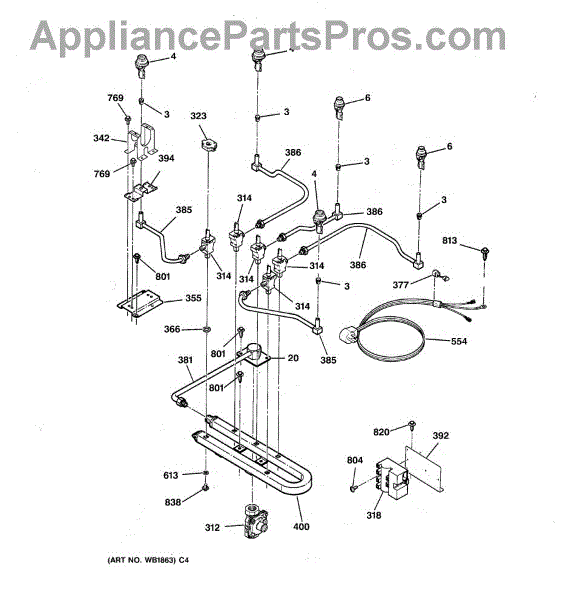

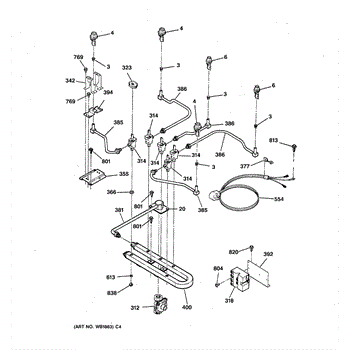

Parts for Ge JGP636AEV2AA: 02 - Burner Parts

Gas pressure regulator for cooktops and ranges. Installs on the gas supply line to control flow to burners. Replace if cracked, leaking, or missing.

Fix burners that won't ignite or maintain a steady flame with this gas valve assembly. Controls gas flow to ensure consistent heat delivery to cooktop burners.

This surface burner valve switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a faulty switch restores consistent clicking and reliable ignition on the affected cooktop burner. What it does:

• Mounts to the surface burner gas valve and closes the ignition circuit when the knob is turned to Lite
• Sends power to the spark module to create the clicking needed to ignite the flame
• Symptoms may include: burner won't spark, intermittent ignition, continuous clicking with knobs off, or a burner lights only when another knob is turned

• One valve switch

• Disconnect electrical power and shut off gas supply; allow the cooktop/range to cool
• Remove the knob and front panel or manifold cover to access the valve area
• Note wire positions, transfer the wires to the new switch, and secure it on the valve stem in the same orientation
• Reassemble, restore power and gas, then test burner ignition

Fix burners that won't spark or click constantly with this igniter switch. Mounts on the gas valve stem to activate spark ignition. Easy 15-minute repair.

Right angle

Gas tube assembly for cooktop burners. Connects gas supply to rear burner. Replace if tube is cracked, damaged, or has loose connections causing leaks.

Center burner tube assembly for gas cooktops. Connects gas valve to burner head. Replace if cracked, corroded, or damaged to restore proper gas flow.

Seals the valve screw connection on your range to prevent gas leaks. Replace if you notice gas odor or during valve maintenance. Verify fit with your model.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement mounting screw for cooktops and ranges. Secures burner components, brackets, or panels. Needed when screws are stripped, lost, or damaged.
