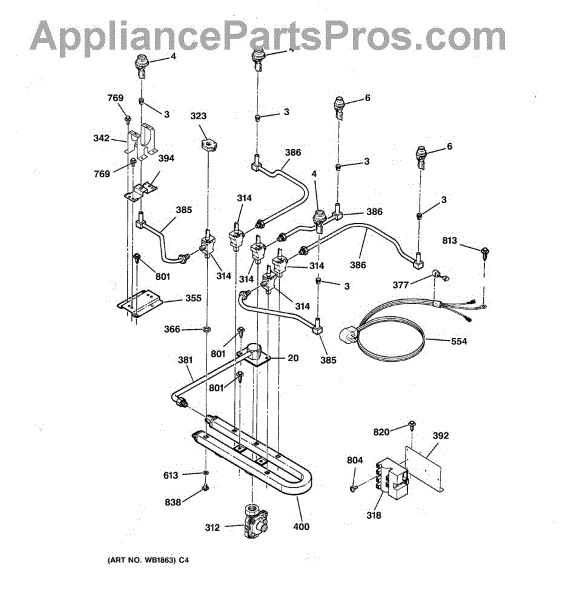

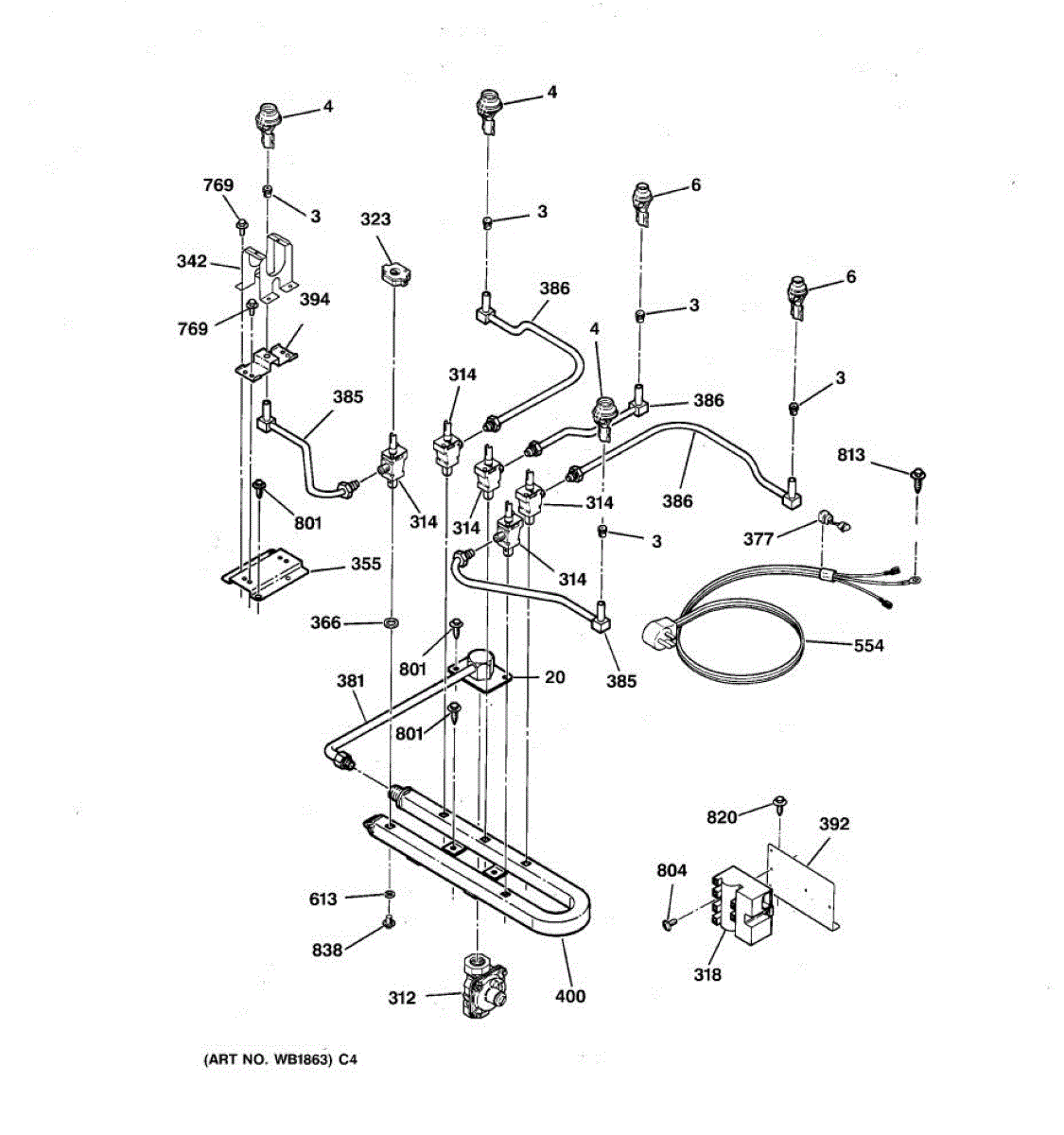

Parts for Ge JGP636BEV2BB: 02 - Burner Parts

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This gas valve assembly controls the flow of gas to the appliance's burners so they ignite and maintain a steady flame. Replace a failing valve to address ignition problems and restore normal heat delivery. What it does:

• Regulates gas flow during ignition and operation to maintain consistent burner flame
• Enables burners to light when the ignition system calls for gas
• A faulty valve can cause burners to fail to light, produce a weak or uneven flame, or result in repeated ignition attempts
• If you smell gas, stop use immediately and follow safety guidance — do not try to power or test the appliance

• Turn off the appliance power and shut off the gas supply before starting work; if you detect a strong gas odor, leave the area
• Basic hand tools may be required; gas and electrical connections must be properly tightened and sealed
• Follow the manufacturer's installation instructions and local codes
• After installation, check for leaks using an approved leak-detection method and verify proper ignition and operation

This surface burner valve switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a faulty switch restores consistent clicking and reliable ignition on the affected cooktop burner. What it does:

• Mounts to the surface burner gas valve and closes the ignition circuit when the knob is turned to Lite
• Sends power to the spark module to create the clicking needed to ignite the flame
• Symptoms may include: burner won't spark, intermittent ignition, continuous clicking with knobs off, or a burner lights only when another knob is turned

• One valve switch

• Disconnect electrical power and shut off gas supply; allow the cooktop/range to cool
• Remove the knob and front panel or manifold cover to access the valve area
• Note wire positions, transfer the wires to the new switch, and secure it on the valve stem in the same orientation
• Reassemble, restore power and gas, then test burner ignition

This switch mounts on the surface burner gas valve stem and closes the circuit to the spark igniters when you turn the knob. Replace a worn switch to restore reliable ignition and eliminate nuisance or no-click conditions.

• Activates the spark module for the selected burner when the knob is turned
• Common symptoms: no spark/click on that burner, intermittent lighting, or continuous clicking after flame is lit
• Helps correct single-burner ignition issues caused by a failed valve switch
• Typical wear item from use, heat, or moisture exposure around the cooktop

• Disconnect power and shut off gas before servicing
• Remove the burner knob and access the valve/switch at the manifold
• Note wire positions and transfer one at a time to the new switch
• Ensure the switch seats on the valve stem and test for proper spark before reassembly

Right angle

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12
