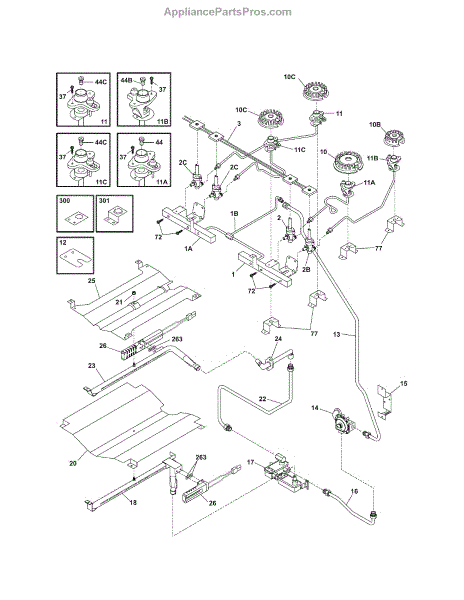

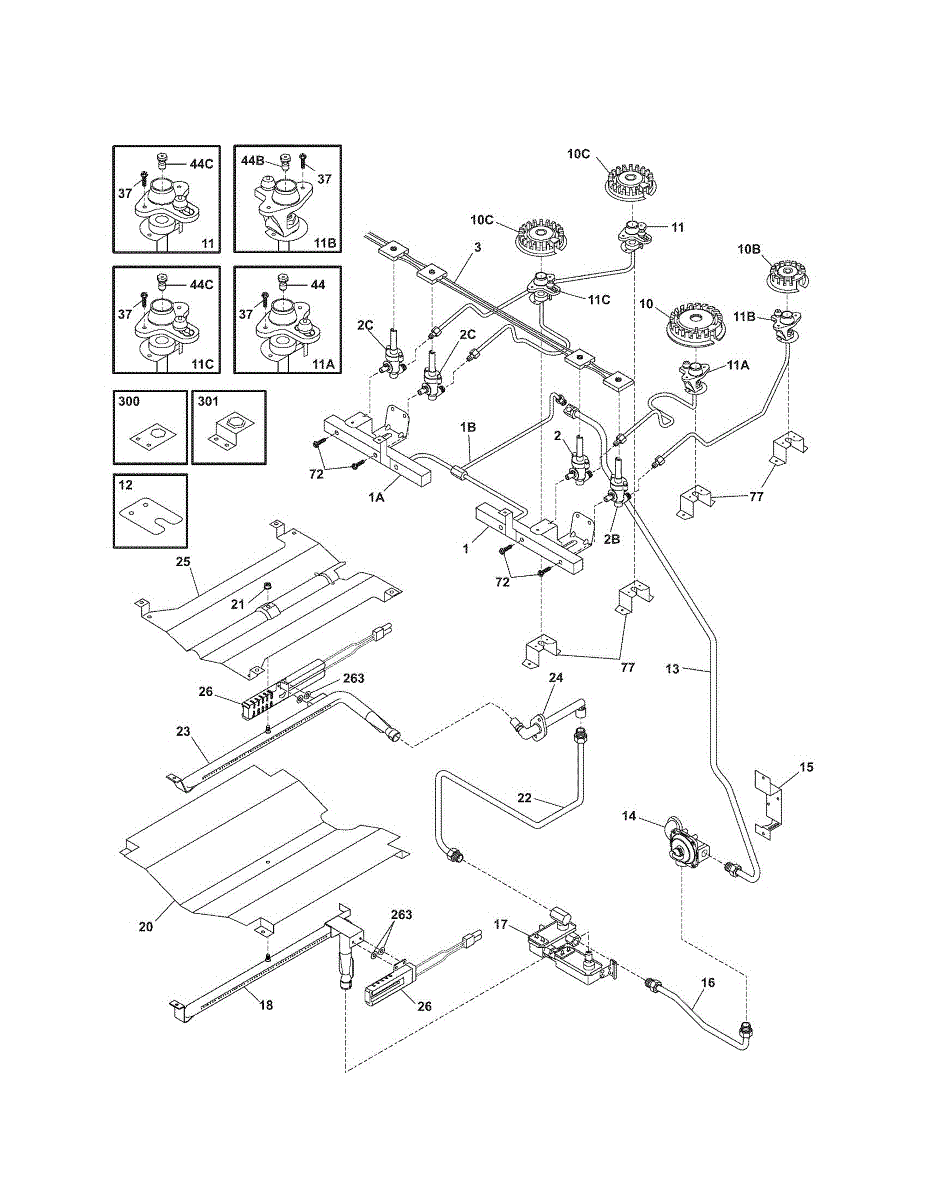

Parts for Kenmore 790.36689502 (79036689502, 790 36689502): Burner Parts

This replacement tube routes defrost and condensation water from the freezer/refrigerator to the drain system, helping prevent leaks and ice buildup in the cabinet. It's a simple, direct replacement that restores proper water flow. What it does:

• Channels defrost and condensate water into the refrigerator drain system to prevent pooling
• Helps stop visible leaks and water pooling inside the fresh food or freezer sections
• Reduces risk of ice buildup from trapped melt water in the cabinet
• Works with the factory drain path and drain pan to maintain normal condensation removal

• One replacement tube

• Inspect and clean the drain passage before installing to ensure proper flow
• Secure tube to existing fittings/clips; do not force or over-bend the tube
• Turn off power to the appliance before accessing internal components

If your burner won't light or the flame is too high or too low, this gas valve controls flow to restore proper ignition and flame adjustment on your cooktop.

The Stove Top Burner is an OEM part for Frigidaire cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This burner ensures even heat distribution, allowing for efficient cooking and precise temperature control.

Over time, stove top burners can become faulty due to various reasons. Causes of a bad stove top burner can include wear and tear from regular use, accumulation of food residue or grease, or damage from impact. These factors can lead to inconsistent heating or the burner failing to ignite.

Symptoms of a bad stove top burner include:

• The burner not heating up
• Uneven heating or hot spots
• Difficulty igniting the burner
• The burner producing unusual noises or smells

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This ignitor assembly heats to ignite the oven's gas burner so the range reaches and maintains cooking temperatures. It replaces a failed or weak ignitor to restore reliable gas ignition and consistent oven heating. What it does:

• Glows hot to open the gas valve and ignite the oven burner
• Restores ignition when the oven won't heat or takes a long time to light
• Replaces cracked, broken, or non-glowing ignitors that cause no-heat symptoms
• Helps eliminate intermittent ignition and slow heat-up issues

• Disconnect power and shut off gas supply before starting any repair
• Handle the ignitor carefully — the element is fragile and can break if dropped
• Use basic hand tools; follow OEM instructions and appliance-specific diagrams for safe removal and proper wiring

If your oven won't heat or takes forever to ignite, this range igniter is likely the cause. A moderately easy repair that restores reliable heating.

Mounting bracket for range installation. Secures and stabilizes your appliance. Replace if bent, cracked, or missing to ensure proper support and alignment.

Regulates gas pressure from your home's supply line to the range burners. Replace if cracked, leaking gas, causing whining noises, or damaged threads.

This surface burner gas valve regulates the flow of gas to the burner on your range or cooktop, enabling proper ignition and flame control. Replacing a worn valve restores safe operation and consistent flame performance.

• Meters gas to the burner in response to the control knob
• Supports reliable ignition and maintains a stable, adjustable flame
• Typical symptoms: burner won't light, flame won't adjust or goes out, knob stiff or difficult to turn
• Can help correct uneven heat on the affected burner

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove panels as directed by your model's service information
• Note valve orientation; transfer any model-specific brackets or fittings from the old valve if required
• After reassembly, check all connections for leaks with a soap-and-water solution

Replace a cracked, worn, or damaged electric range surface burner element. Installs in the cooktop receptacle to restore a functional heating zone.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

For 5k burner.

For 12k burner.

Burner orifice installs in the gas valve to control fuel flow to the cooktop burner. Replace if cracked, clogged, or when converting between LP and natural gas.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

Size: 3/4 inch od x 1/4 inch id.

Replace a damaged or frayed range wire harness. This internal wiring component connects electrical systems inside your range. Order when wires are cut or worn.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

This wiring harness routes power and signals between a refrigerator's control board and major components, restoring reliable electrical connections for proper operation. Use it when connectors are damaged or wiring is worn. What it does:

• Carries power and control signals between the main control and components
• Replaces burned, frayed, or broken wire runs that cause intermittent or no component operation
• Restores secure connector interfaces to fix flickering lights, non-running fans, or no cooling symptoms
• Preserves correct wiring routing to prevent shorts and maintain safe operation

• One wiring harness assembly as shown

• Always disconnect power to the appliance before starting work
• Handle connectors gently; match keyed plugs and secure all mating clips
• Route harness along original paths and secure with existing clips or ties to avoid pinching
• Replace any damaged connectors or terminals to ensure a reliable connection

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
