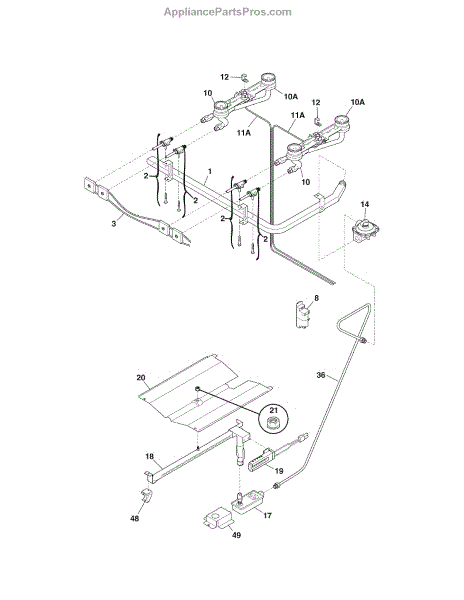

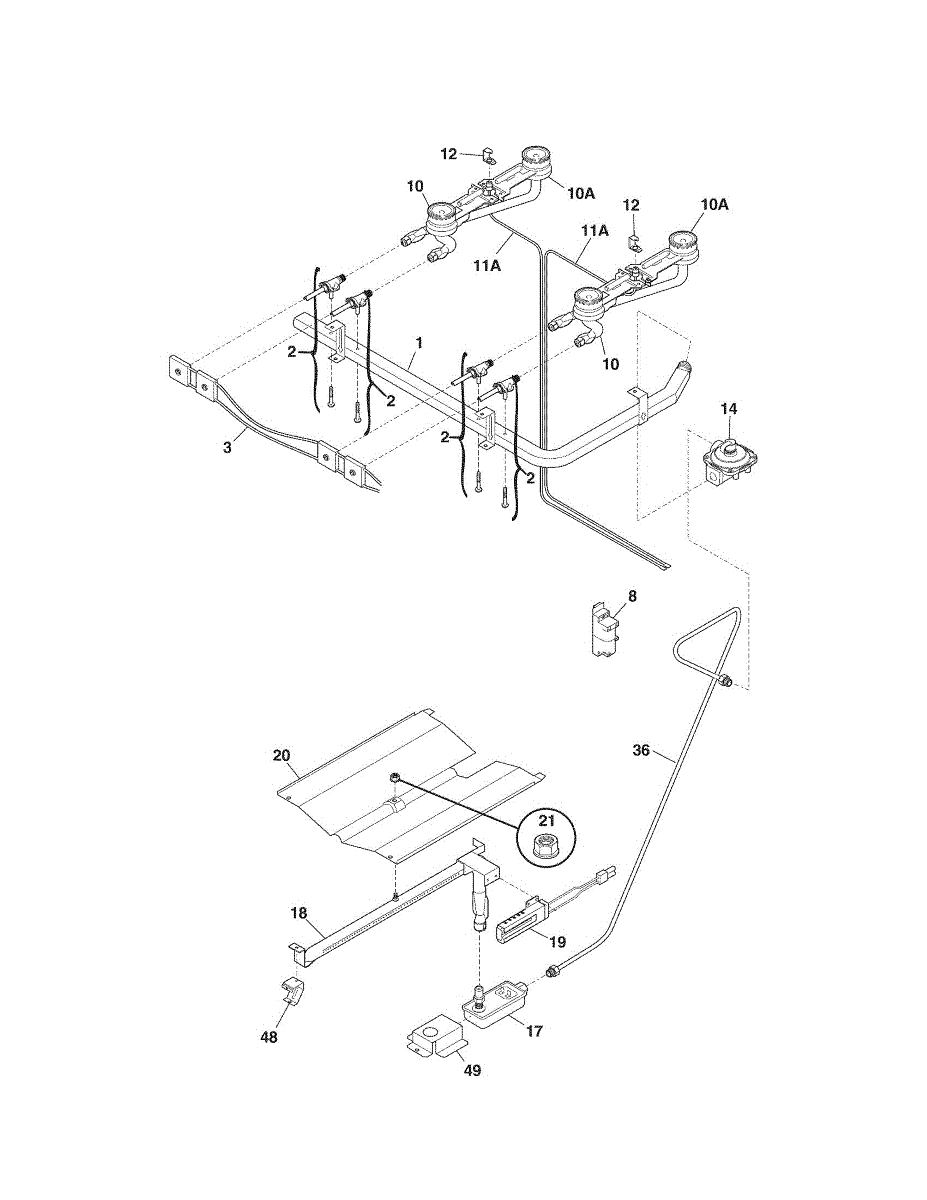

Parts for Kenmore 790.71152701 (79071152701, 790 71152701): Burner Parts

Burner won't light, stays on, or flame is uneven? This top burner valve controls gas flow to restore safe on/off control. Typical repair time: 45 minutes.

This electronic module generates the electrical spark needed to ignite the gas burners on a cooktop. It receives a signal when a burner knob is turned and sends a high-voltage pulse to the spark electrode at the burner. Replace this module if one or more burners fail to ignite, you hear no clicking sound when turning the knob, or the igniters click continuously without stopping.

Replace your cracked, rusted, or clogged gas range surface burner. Mounts on the cooktop to direct gas flow for a steady flame. Easy one-screw install.

Replacement top burner for gas ranges. Installs on the cooktop surface to provide flame for cooking. Order if your burner is rusted, eroded, or broken.

Fix burners that click but won't light with this gas range spark electrode. Restores reliable ignition when your stovetop igniter is worn or cracked.

Cable retainer for cooktop installation. Secures wiring harnesses in place. Replace if broken, cracked, or missing to properly organize internal cables.

This is the gas pressure regulator that controls the flow and pressure of gas supplied to the burners and oven in a gas range. It ensures a consistent and safe gas pressure is delivered for proper ignition and flame performance. Replace this regulator if you notice uneven flames, difficulty igniting burners, yellow or weak flames, or if you smell gas when the burners are off.

Oven won't light even with glowing igniter? Safety valve controls gas flow to burner. Moderately easy repair with gas line disconnect required.

Oven burner distributes gas and air mixture for even baking flames. Replace if rusted, corroded, or producing uneven flame patterns in your range.

Oven won't light or takes forever to heat? A weak igniter is usually the culprit. Moderately easy DIY repair—most complete it in 15-30 minutes.

Mounting bracket for gas ranges. Secures components inside your range. Replace if bent, broken, or missing to restore proper structural support.

Size: 8-18ab x 0.5 inch.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Gas orifice spud that meters fuel flow from valve to burner on gas ranges. Replace if clogged, damaged, or converting between LP and natural gas fuel types.

Converts your gas range from natural gas to liquid propane fuel. Includes all orifices and instructions. Needed when switching fuel types or missing parts.
