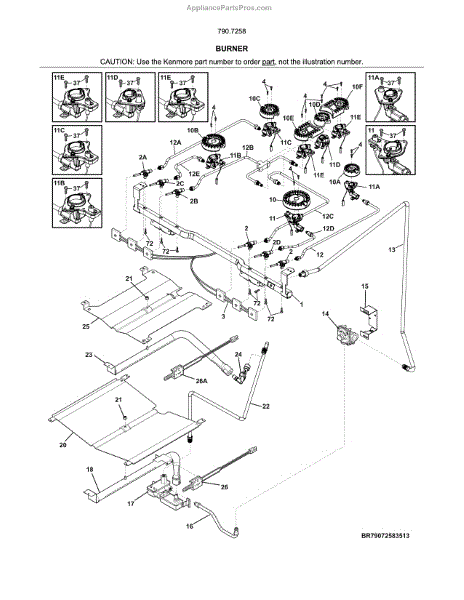

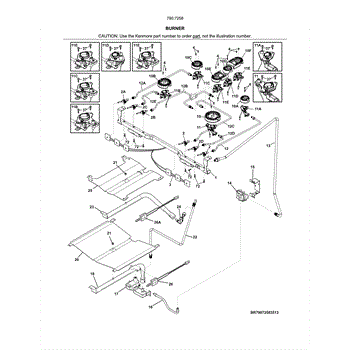

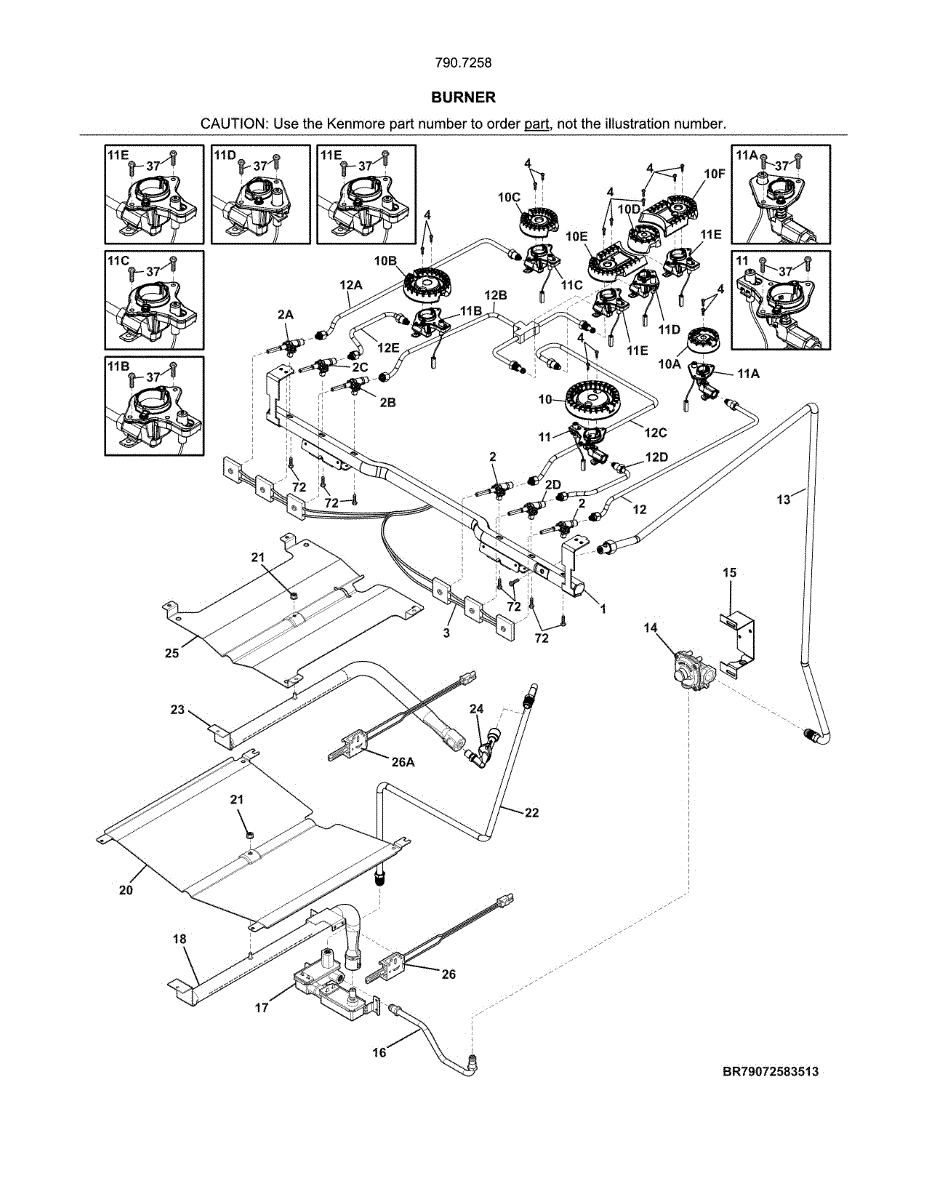

Parts for Kenmore 790.72583516 (79072583516, 790 72583516): Burner Parts

The Valve is an OEM part for Frigidaire gas ranges. It is the mechanism located behind each burner that regulates the flow of natural gas into the burner venturi tubes.

Causes of a bad gas valve can include wear from repeatedly opening and closing over extended use. Internal components may degrade or fail to properly seal.

 Symptoms of a bad gas valve include:

• Inconsistent burner flame levels
• Difficulty adjusting flame heights
• Burners failing to ignite or stay lit as expected
• Gas leaks detected around valve areas

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Fix a burner that won't turn off, has weak flame, or a stiff control knob. This gas valve controls flow to one cooktop burner. Moderate DIY repair.

The Burner Valve is an OEM component specifically designed for Frigidaire ranges. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Causes of a bad burner valve can include wear over extended usage periods, damage from water, or gas blockage impeding operation.

Symptoms of a bad burner valve include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Replacing with this OEM valve restores full functionality to the range cooktop. Compatible with existing gas lines, it supports safe and reliable cooking performance.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.


This water inlet valve controls water flow to the refrigerator's dispenser and ice system so you get a steady supply when needed and stop unwanted leaks. It replaces a worn or failing valve to restore proper water delivery. What it does:

• Opens and closes to allow water into the ice maker and dispenser
• Stops water flow when dispenser/ice fill is inactive
• Commonly replaced when water won't dispense or ice maker won't fill
• Needed if the valve is leaking or causing water drips

• Disconnect power and shut off the water supply before replacing the valve
• Handle with care and inspect inlet/outlet fittings and gaskets for proper sealing
• Reconnect water and power, then check for leaks and proper water flow after installation
• Follow manufacturer instructions

Fixes intermittent power issues, control failures, or unresponsive displays. This wiring harness assembly restores electrical connections between components.

Secures the ignitor assembly to your gas cooktop burner base. Replace if screw head is stripped, threads damaged, or screw is missing after disassembly.

This surface burner element replaces a damaged or non-working electric cooktop heating element to restore normal cooking heat and even heating across cookware. It fits compatible Frigidaire electric ranges and stoves. What it does:

• Heats cookware by converting electrical power into cooking heat for stovetop use.
• Replaces an element that fails to heat, gets intermittently hot, or shows visible burns or breaks.
• Restores even cooking when the original burner is warped, cracked, or has poor contact.
• Works with existing terminal block and cooktop connections when the mount and wiring are intact.

• One surface burner element (single replacement).

• Disconnect power to the range at the circuit breaker before starting any work.
• Allow the cooktop and element to cool completely; element terminals can be sharp—wear gloves.
• Remove the old element by pulling straight out from the terminal block and align the replacement for a snug, secure fit.

If your range burner won't heat or heats unevenly, this burner element restores proper cooking performance. Common DIY repair, typically 15-30 minutes.

Replacement surface burner head for gas ranges and cooktops. Distributes gas through precision ports for even flame. Needed when original is clogged, damaged, or corroded.

Replacement burner head for gas ranges and cooktops. Mounts over the orifice to distribute flame evenly. Needed when original is cracked or damaged.

Replaces a cracked, corroded, or damaged burner on your gas range or cooktop. Installs on top to restore the heat source for your cooking zone.

Replacement gas burner for ranges and cooktops. Restores even flame distribution when original is clogged, damaged, or worn from boilovers and daily use.

Gas oven won't light or ignites slowly? A clogged or worn ignitor orifice assembly disrupts gas flow to the burner. Direct replacement restores reliable ignition.

This ignitor orifice assembly delivers and directs gas to the oven ignitor so burners light reliably. It restores proper gas flow at the ignitor for consistent ignition and safer oven operation in gas ranges and wall ovens. What it does:

• Directs gas from the valve to the oven ignitor so the burner can ignite
• Helps eliminate no-heat or weak-flame symptoms when the ignitor area is the issue
• Supports stable, consistent ignition timing and flame establishment
• Replaces a damaged, clogged, or corroded orifice/ignitor connection

• One ignitor orifice assembly

• Turn off gas supply and electrical power before beginning work
• Handle carefully; avoid bending the orifice and keep ignition surfaces clean
• Basic hand tools are typically required
• After installation, check for gas leaks and test oven ignition in a well-ventilated area

If your oven burner won't light or has delayed ignition, this ignitor orifice assembly restores proper gas flow and spark alignment for reliable starts.

This orifice holder positions and secures the gas orifice that controls fuel flow to your range's surface burners. It ensures proper gas delivery for consistent flame size and heating performance. Replace if burners won't light, have uneven flames, or produce yellow flames instead of blue.

This ignitor orifice assembly secures the oven igniter and directs gas to the oven burner for consistent ignition. It's a direct-replacement part used to restore proper spark/ignition performance on compatible gas ovens. What it does:

• Holds and positions the oven igniter and orifice for reliable flame initiation
• Directs gas flow to the burner so the igniter can light the oven
• Commonly replaces worn, clogged, or damaged assemblies that cause ignition delays or no-heat conditions
• Helps restore safe, consistent oven ignition when the igniter itself is functioning

• Disconnect power and shut off the gas supply before beginning any service
• Handle components carefully; avoid bending or damaging the orifice or ignitor mounting

Regulates gas flow from the supply line to your range burners. Replace if cracked, leaking, or damaged to restore proper fuel control and flame size.

Controls gas flow to your range oven burners. Replace if the valve is leaking, won't shut off completely, or has damaged threads or connections.

This replacement surface burner restores stovetop heating for electric ranges, providing a direct, reliable heat source for pots and pans. Designed to match the original element shape and fit for a straightforward swap. What it does:

• Heats cookware on the cooktop so you can boil, simmer, and sauté
• Replaces a cracked, warped, or non-heating burner element
• Addresses symptoms such as little or no heat, intermittent heating, or uneven hot spots
• Works with the existing burner receptacle and cooktop cutout when the correct element is used

• One round surface burner element

• Disconnect power to the range before servicing to avoid electrical shock
• Remove the cooktop or lift the burner assembly per your model's service instructions
• Align and seat the element into the socket, then secure any mounting clips or screws as originally installed

Replace a cracked, damaged, or missing baffle in your gas range. This structural component installs inside the oven cavity to direct airflow properly.

Broiler won't light or heat? This range broil ignitor ignites the top broiler burner. Common fix when broiler fails to start or brown food properly.

The Ignitor is an OEM replacement part for Frigidaire gas ranges. Located near the burner heads, this component is responsible for generating the electric spark required to light stove top burners.

Symptoms of a faulty ignitor include:

• Burners that will not light or only light intermittently
• Clicking noises but no flame ignition
• Diminished or no spark from the ignitor itself

Causes of ignitor failure can be an accumulation of deposits over many heating cycles. Physical damage from pots/pans is also possible. As electrical parts, ignitors have a limited lifespan depending on range usage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Converting your range from natural gas to liquid propane? This LP conversion kit replaces orifices to restore proper burner flames and safe operation.

Fix intermittent power or control issues in your gas range with this wiring harness. Restores electrical connectivity between components. DIY repair.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
